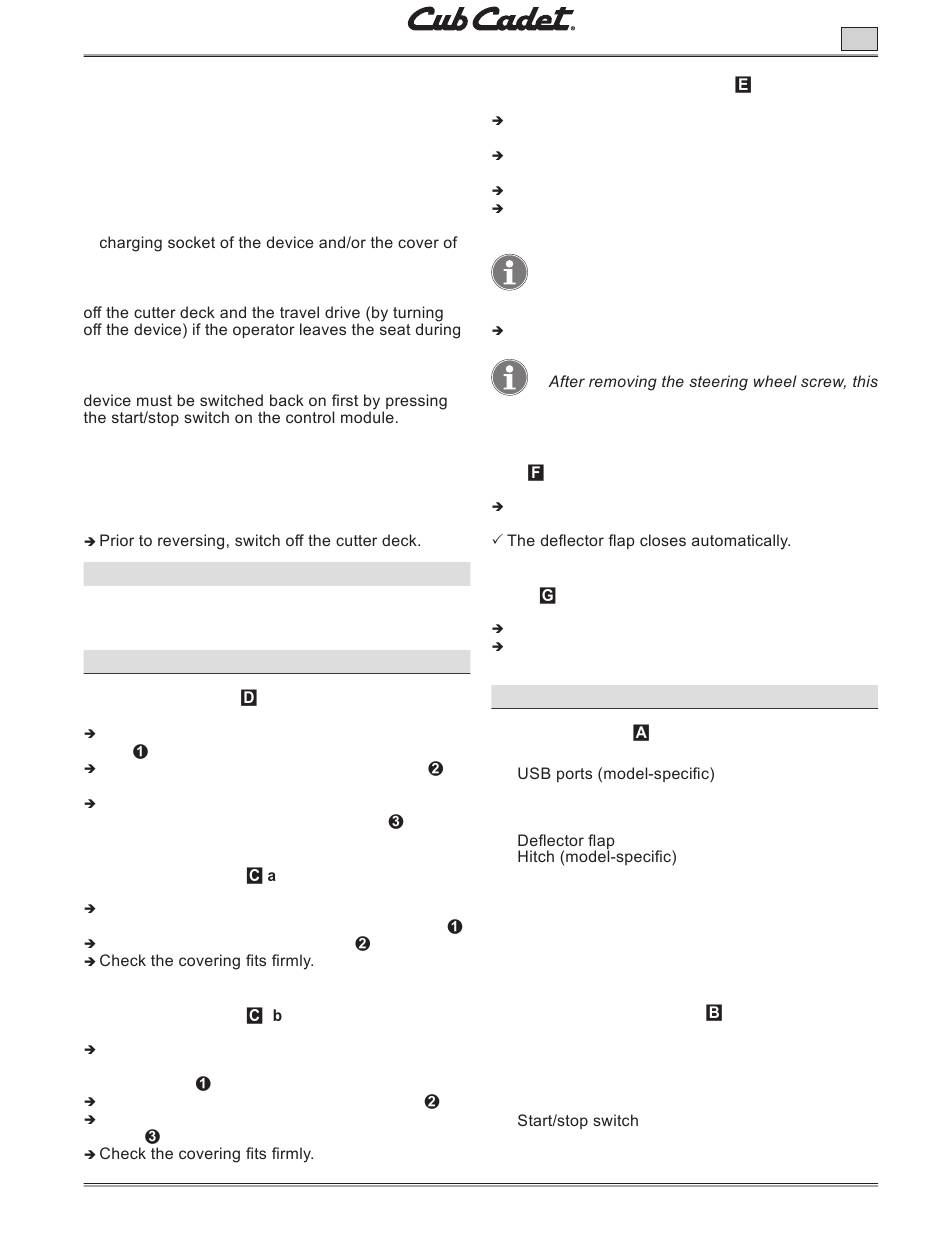

Assembly; Operating Controls - Cub Cadet D20 Bedienungsanleitung

Assembly

Safety locking system
The safety locking system will only allow the device
to start when
- the driver is sitting on the seat.
- The brake pedal has been depressed or the park-
ing brake is in the park position.
- the accelerator pedal is not pressed (= N position).
- the charging cable is not connected to the
the charging socket is not opened or removed.
The safety locking system automatically switches
operation, irrespective of whether the parking brake
was engaged beforehand.
To reactivate the driving and mowing functions, the
In devices without reverse-mowing function
(RCM) or with a deactivated RCM function, the
safety locking system prevents reversing with the
cutter deck activated (automatic shutdown of the
cutter deck).
Directional references
Directional references on the device (e.g. left, right,
etc.) always refer to when facing forwards.
Assembly
Attaching the seat
Remove the screws and nuts on the seat sup-
port .
Fix the seat support to the mounting bracket
using the previously removed screws and nuts.
Place the cable holder of the of the seat contact
switch into the opening of the seat well
Attaching the upper dashboard covering
(model-dependent)
Insert the tabs [A] of the dashboard covering [B]
into the openings of the dashboard support [C]
Press them forwards until the stop
Attaching the engine hood covering
(model-dependent)
Place the engine hood covering with the re-
cesses [A] on the retaining brackets [B] on the
engine hood .
Press the covering backwards until the stop
Press both clips [C] slightly upwards to lock the
cover .
Attaching the steering wheel
Remove the cover cap [1] (design-dependent) on
the steering wheel.
Place the spacer [6], the spring [5] and the
washer [4] onto the steering shaft [7].
Place the steering wheel on the steering shaft.
Fasten the steering wheel using the washer [3]
and the screw [2] (tightening torque: 25–28 Nm).
Note
Put on the washer [3] with the bulge facing
upwards.
Put on the cover cap [1].
Note
must be replaced with a new original screw
and screw retention.
Removing the transport lock on the deflector
flap
Remove the safety plate or the cable tie (de-
pending on the design).
Attaching the front bumper (model-depen-
dent)
Remove the four screws from the front bumper.
Fasten the front bumper to the tractor frame (inner
side) using the previously removed four screws.
Device overview
A Control module
B
C Forward pedal
D Reverse pedal
.
E Cutting height adjustment lever
F
G
H Seat adjustment lever
I Cup holder
J Storage compartment
K Switch for parking brake
.
L Brake pedal
.
M Charging socket
N Steering wheel
O Headlamps
Control module overview
A LCD display for various indicators, such as
power pack charge status, instructions, error
messages, etc.
B PTO switch for reverse mowing function
.
C Cruise control switch
D
E Safety key
F Light switch
G PTO switch for forward mowing function

Operating controls
