MOUNTING INSTRUCTIONS
5.5 Mounting the Swivel mount bracket
en
6

Pin assignment

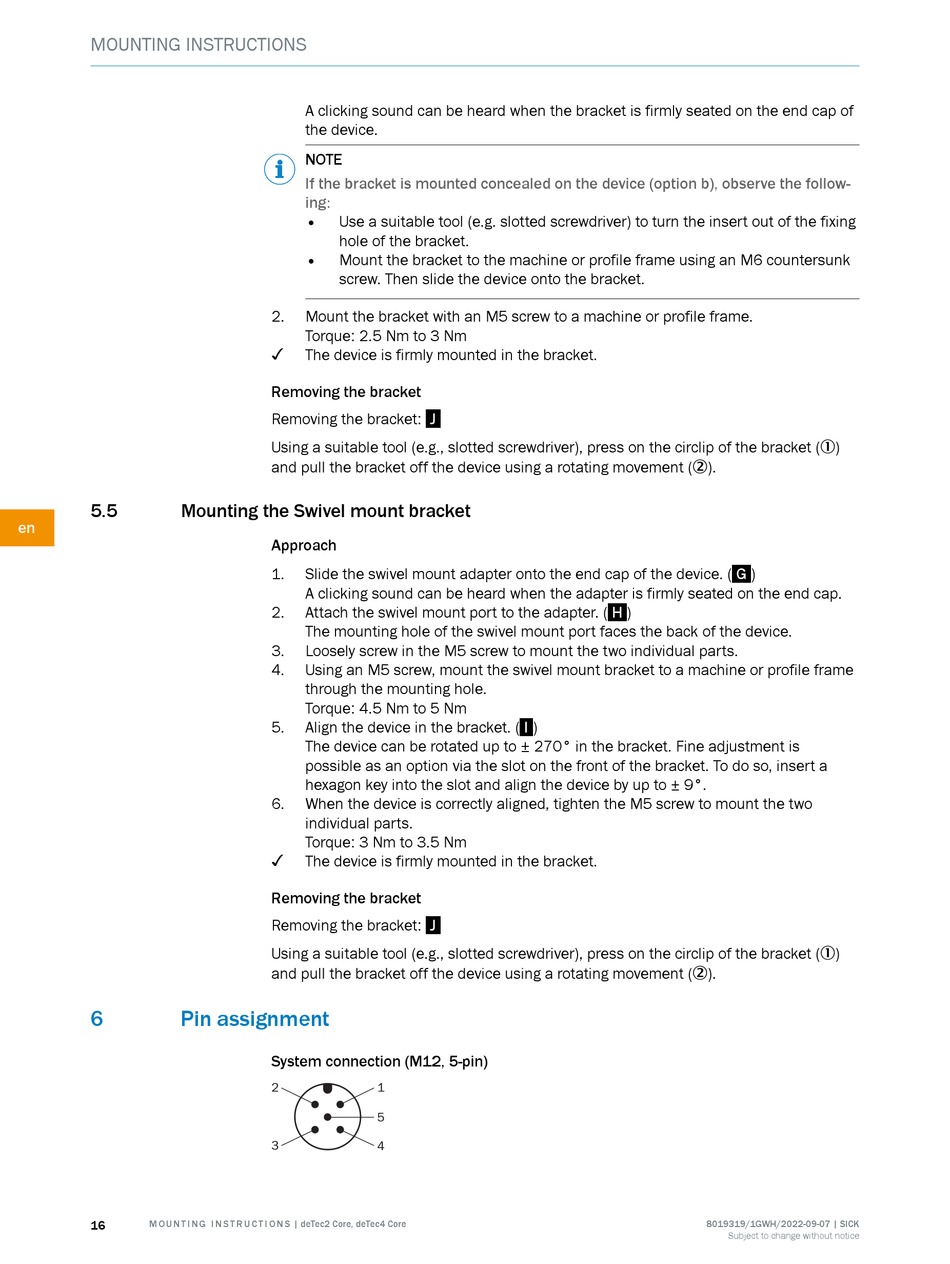

16 M O U N T I N G I N S T R U C T I O N S | deTec2 Core, deTec4 Core
A clicking sound can be heard when the bracket is firmly seated on the end cap of
the device.
NOTE
If the bracket is mounted concealed on the device (option b), observe the follow‐
ing:
• Use a suitable tool (e.g. slotted screwdriver) to turn the insert out of the fixing
hole of the bracket.
•
Mount the bracket to the machine or profile frame using an M6 countersunk
screw. Then slide the device onto the bracket.
2. Mount the bracket with an M5 screw to a machine or profile frame.
Torque: 2.5 Nm to 3 Nm
✓
The device is firmly mounted in the bracket.
Removing the bracket
Removing the bracket: J
Using a suitable tool (e.g., slotted screwdriver), press on the circlip of the bracket (1)
and pull the bracket off the device using a rotating movement (2).
Approach
1. Slide the swivel mount adapter onto the end cap of the device. (
A clicking sound can be heard when the adapter is firmly seated on the end cap.
2. Attach the swivel mount port to the adapter. (
The mounting hole of the swivel mount port faces the back of the device.
3. Loosely screw in the M5 screw to mount the two individual parts.
4. Using an M5 screw, mount the swivel mount bracket to a machine or profile frame
through the mounting hole.
Torque: 4.5 Nm to 5 Nm
5. Align the device in the bracket. (
The device can be rotated up to ± 270° in the bracket. Fine adjustment is
possible as an option via the slot on the front of the bracket. To do so, insert a
hexagon key into the slot and align the device by up to ± 9°.
6. When the device is correctly aligned, tighten the M5 screw to mount the two
individual parts.
Torque: 3 Nm to 3.5 Nm
✓
The device is firmly mounted in the bracket.
Removing the bracket
Removing the bracket: J
Using a suitable tool (e.g., slotted screwdriver), press on the circlip of the bracket (1)
and pull the bracket off the device using a rotating movement (2).
System connection (M12, 5-pin)
2 1
5
3 4
H )
I )
G )
