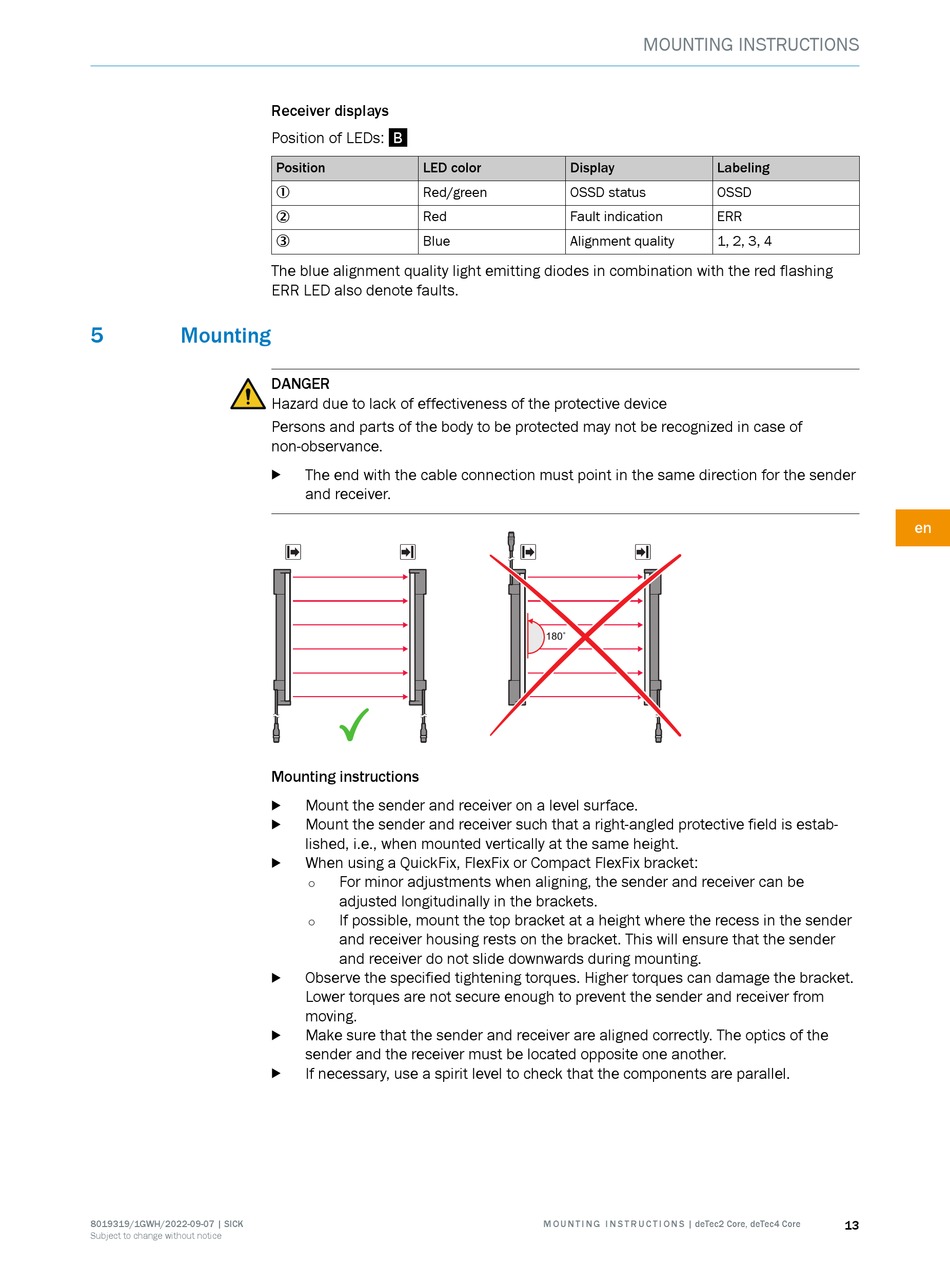

5 Mounting
8019319/1GWH/2022-09-07 | SICK
Subject to change without notice
Receiver displays
Position of LEDs: B
Position LED color
Red/green
1
Red
2
Blue
3
The blue alignment quality light emitting diodes in combination with the red flashing
ERR LED also denote faults.
DANGER
Hazard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of
non-observance.
The end with the cable connection must point in the same direction for the sender
b
and receiver.
s r
Mounting instructions
Mount the sender and receiver on a level surface.
b
Mount the sender and receiver such that a right-angled protective field is estab‐
b
lished, i.e., when mounted vertically at the same height.
When using a QuickFix, FlexFix or Compact FlexFix bracket:
b
For minor adjustments when aligning, the sender and receiver can be
°
adjusted longitudinally in the brackets.
If possible, mount the top bracket at a height where the recess in the sender
°
and receiver housing rests on the bracket. This will ensure that the sender
and receiver do not slide downwards during mounting.
Observe the specified tightening torques. Higher torques can damage the bracket.
b
Lower torques are not secure enough to prevent the sender and receiver from
moving.
Make sure that the sender and receiver are aligned correctly. The optics of the
b
sender and the receiver must be located opposite one another.
If necessary, use a spirit level to check that the components are parallel.
b
MOUNTING INSTRUCTIONS
Display
OSSD status
Fault indication
Alignment quality
s r
180˚
M O U N T I N G I N S T R U C T I O N S | deTec2 Core, deTec4 Core
Labeling
OSSD
ERR
1, 2, 3, 4
13
en
