Anhänge

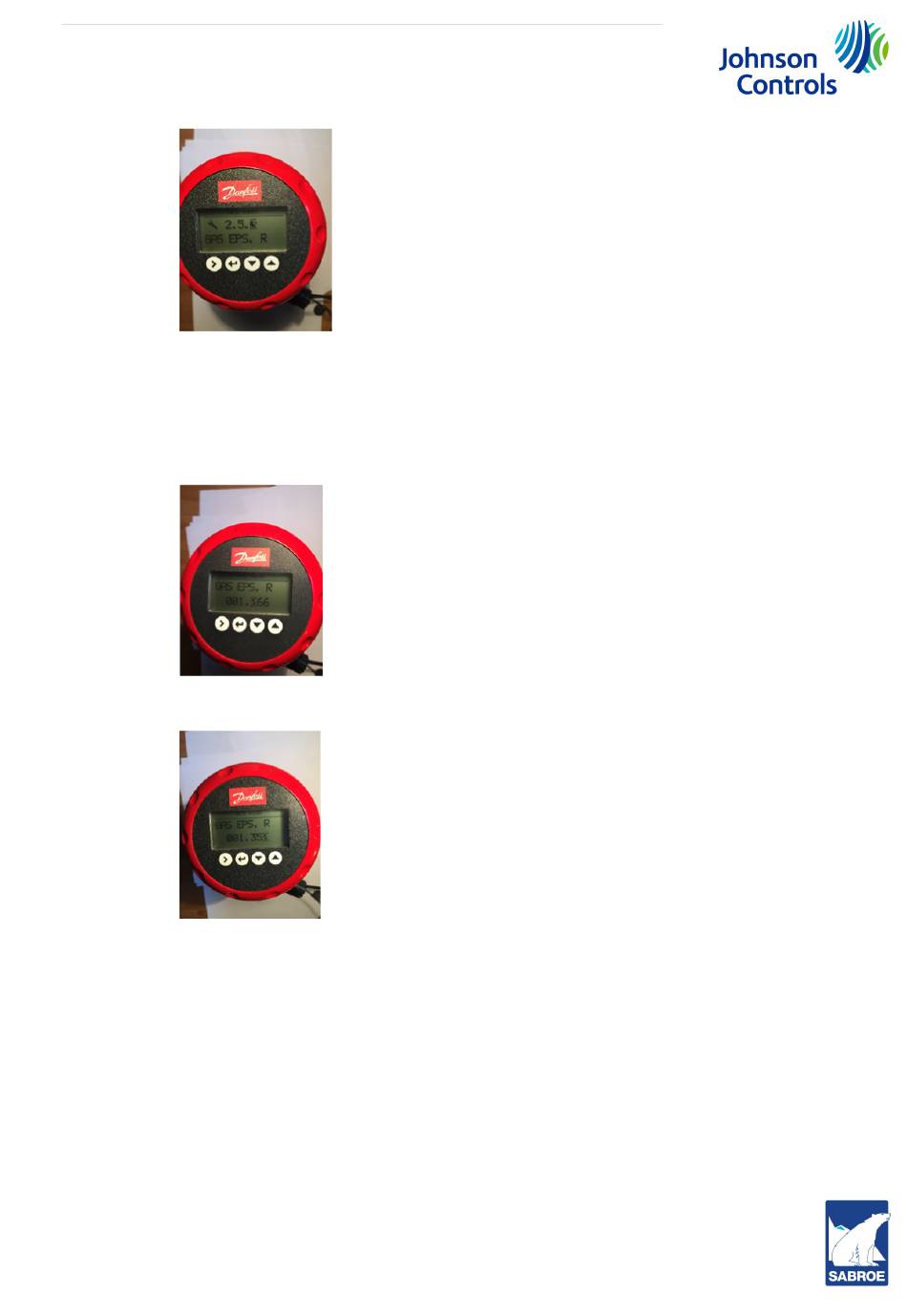

• Press Arrow up (no. 4) until 1 has turned to 3, see Fig. 34.
Fig. 34
2. Change the gas constant:
• Press Arrow right (no. 1) – the bottom line is marked.
• Change the digit to wanted number by pressing Arrow right (no. 1), Arrow down (no.
3) and Arrow up (no. 4), see Fig. 35.
Fig. 35
• Confirm with Return (no. 2), see Fig. 36.
Fig. 36
Return (no. 2) always takes you up one level.
Change the following parameters in the same way:
• + 2.3.2 Blocking distance from 50 mm to 0 mm
• + 2.3.3 Time constant from 5 sec. to 1 sec.
• + 2.5.7 Level threshold from 200 mm to 150 mm
• + 4.1.1 Full area - confirm or change to 0 mm. Passcode for level 4.x.x = 4-3-4-2-4-1
• + 4.1.2 Empty Area from 280 mm to 260 mm.
After the last change, press Return (no. 2) until "STORE NO" is displayed, see Fig. 37.
