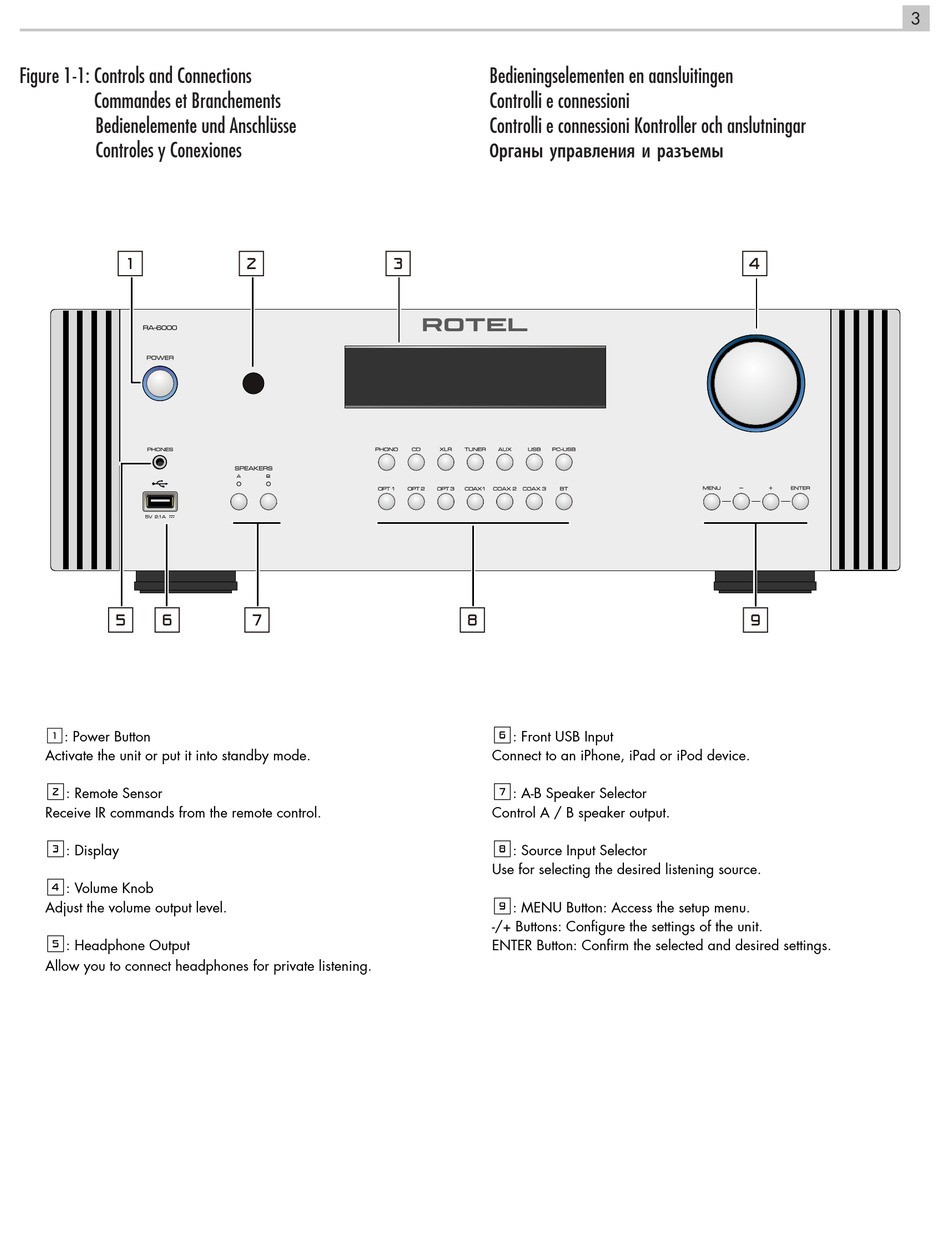

Figure 1‑1: Controls and Connections
Commandes et Branchements
Bedienelemente und Anschlüsse
Controles y Conexiones
1
5 6
1 : Power Button
Activate the unit or put it into standby mode.
2
: Remote Sensor
Receive IR commands from the remote control.
3
: Display
4
: Volume Knob
Adjust the volume output level.
5
: Headphone Output
Allow you to connect headphones for private listening.
2 3
A B
7
Bedieningselementen en aansluitingen
Controlli e connessioni
Controlli e connessioni Kontroller och anslutningar
Органы управления и разъемы
8
6
: Front USB Input
Connect to an iPhone, iPad or iPod device.
7
: A-B Speaker Selector
Control A / B speaker output.
8
: Source Input Selector
Use for selecting the desired listening source.
9
: MENU Button: Access the setup menu.
-/+ Buttons: Configure the settings of the unit.
ENTER Button: Confirm the selected and desired settings.
3
4
9
