1 | MI_2207: Automatic ignition controller iCombi – removal and installation

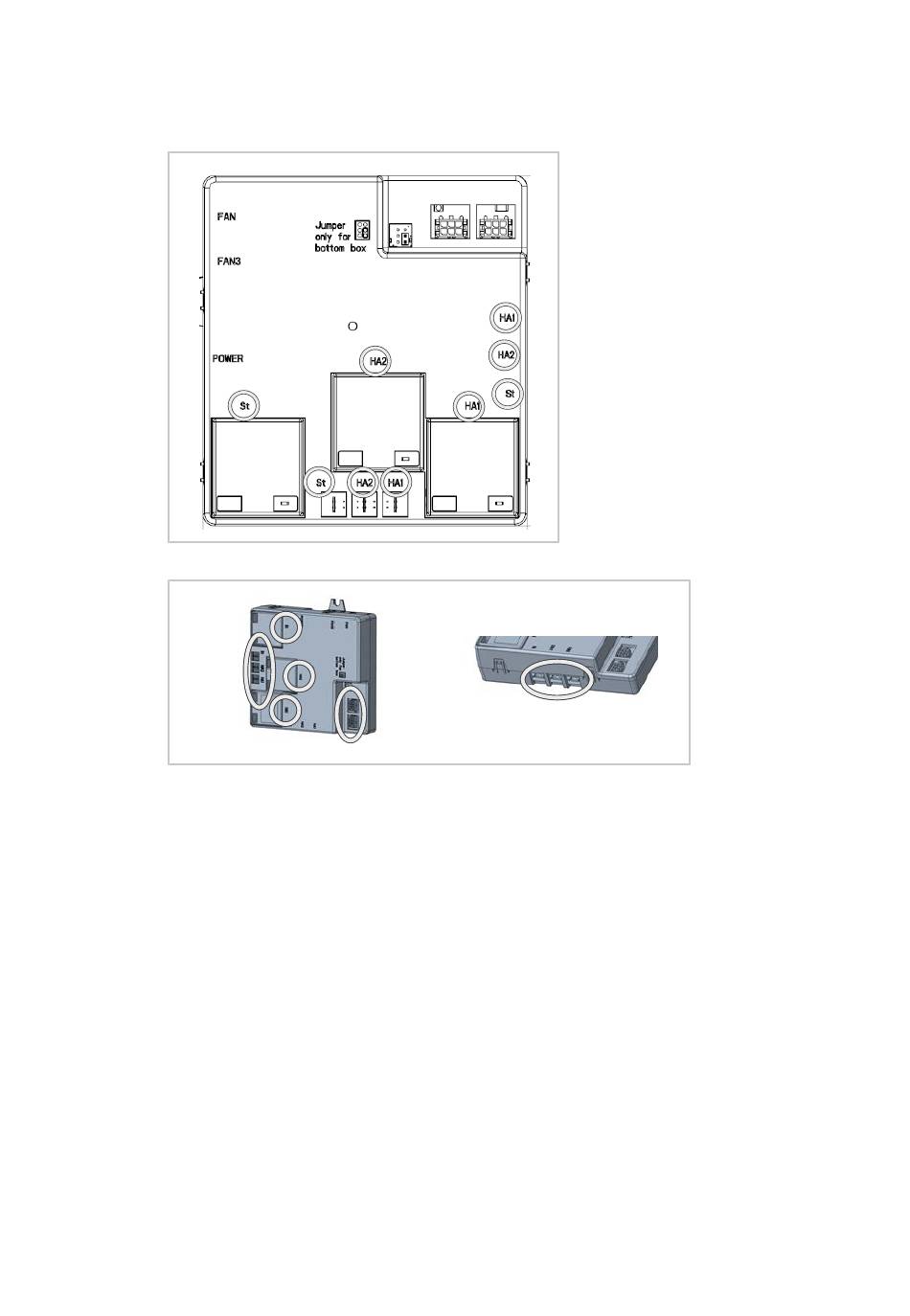

3. Mark all plugs/cables with the appropriate abbreviation ST, HA1 and HA2
(see diagram). These markings are very important for the subsequent cor-
rect installation of the contacts.
NOTICE! For 6 1/1 – 10 2/1, the slots HA2 are not assigned.
4. Disconnect the marked plugs from the automatic ignition controller.
>>
The removal is complete.
Work steps – installing the iCombi automatic ignition controller
1. Proceed in reverse order to install again.
2. When connecting a new automatic ignition controller, pay attention to the
cables you have marked.
3. Wet the plug contacts with the supplied contact grease.
>>
Installation is complete.
