Interface con-
nections - TSt
range
For your infor- NOTE! While the robot interface is connected to the LocalNet, „2-step mode" re-
mation mains selected (display: 2-step mode).
Further information on the „special 2-step mode for robot interface" can be
found in the sections headed „MIG/MAG welding" and „Mode welding parame-
ters" in the power source operating instructions.

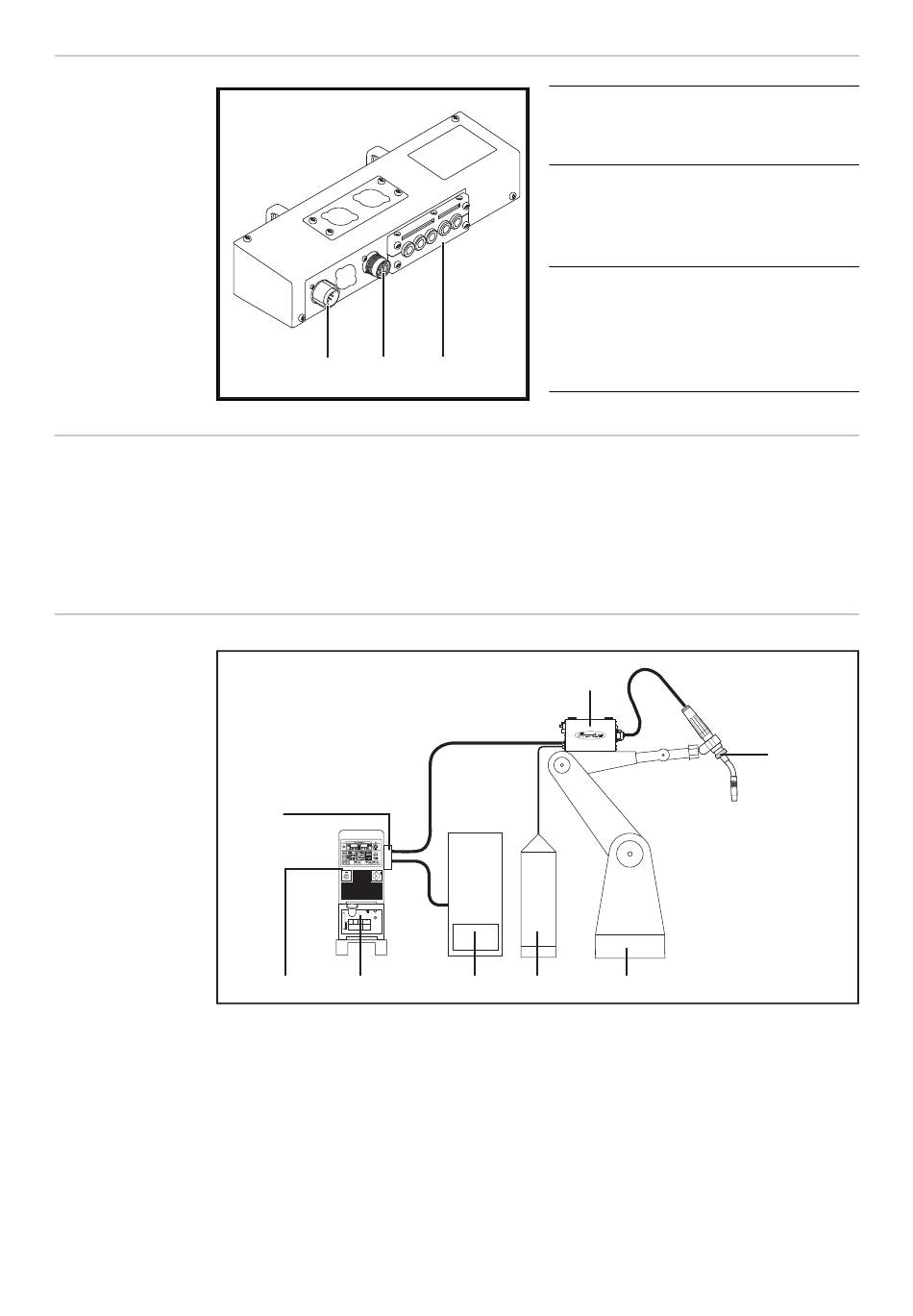

Application ex-
ample - TS/TPS,
MW/TT range
(1)
(2)
(3)
(4)
(5)
48
(2) (1)
(3)
(5)
(1) (2)
Power source
Cooling unit
Profibus
Interconnecting hosepack
Profibus data cable
(1)
(2)
(3)
(3)
(10)
(4)
(6) (7)
(6) Robot control
(7) Marathon pack
(8) Robot
(9) Welding torch
(10) Wirefeeder
LocalNet connection - OUT
for connecting the interconnec-
ting hosepack
LocalNet connection - IN for
connecting the power source
for connecting the power
source
Strain-relief device with cable
glands
for the Profibus data line and
the power supply for the field
bus coupler
(9)
(8)
