3.9 Mounting of face mount flange via the mounting spigot
8017140/1EF5/2021-12-10 | SICK
Subject to change without notice
3
2

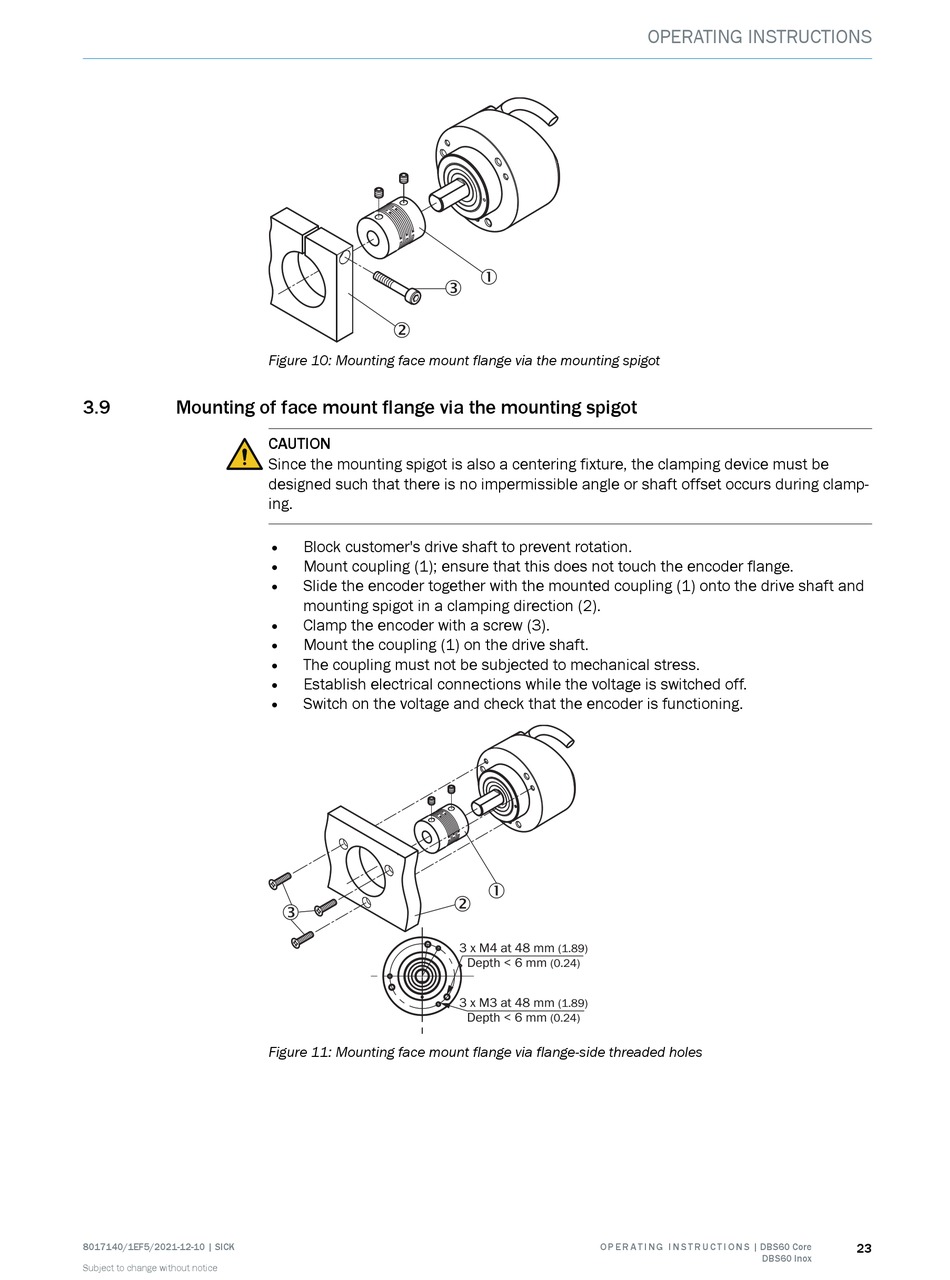

Figure 10: Mounting face mount flange via the mounting spigot
CAUTION
Since the mounting spigot is also a centering fixture, the clamping device must be
designed such that there is no impermissible angle or shaft offset occurs during clamp‐
ing.
• Block customer's drive shaft to prevent rotation.
• Mount coupling (1); ensure that this does not touch the encoder flange.
• Slide the encoder together with the mounted coupling (1) onto the drive shaft and
mounting spigot in a clamping direction (2).
• Clamp the encoder with a screw (3).
•
Mount the coupling (1) on the drive shaft.
• The coupling must not be subjected to mechanical stress.
•
Establish electrical connections while the voltage is switched off.
• Switch on the voltage and check that the encoder is functioning.
3
Figure 11: Mounting face mount flange via flange-side threaded holes
1
1
2
3 x M4 at 48 mm
(1.89)
Depth < 6 mm
(0.24)
3 x M3 at 48 mm
(1.89)
Depth < 6 mm
(0.24)
