OPERATING INSTRUCTIONS

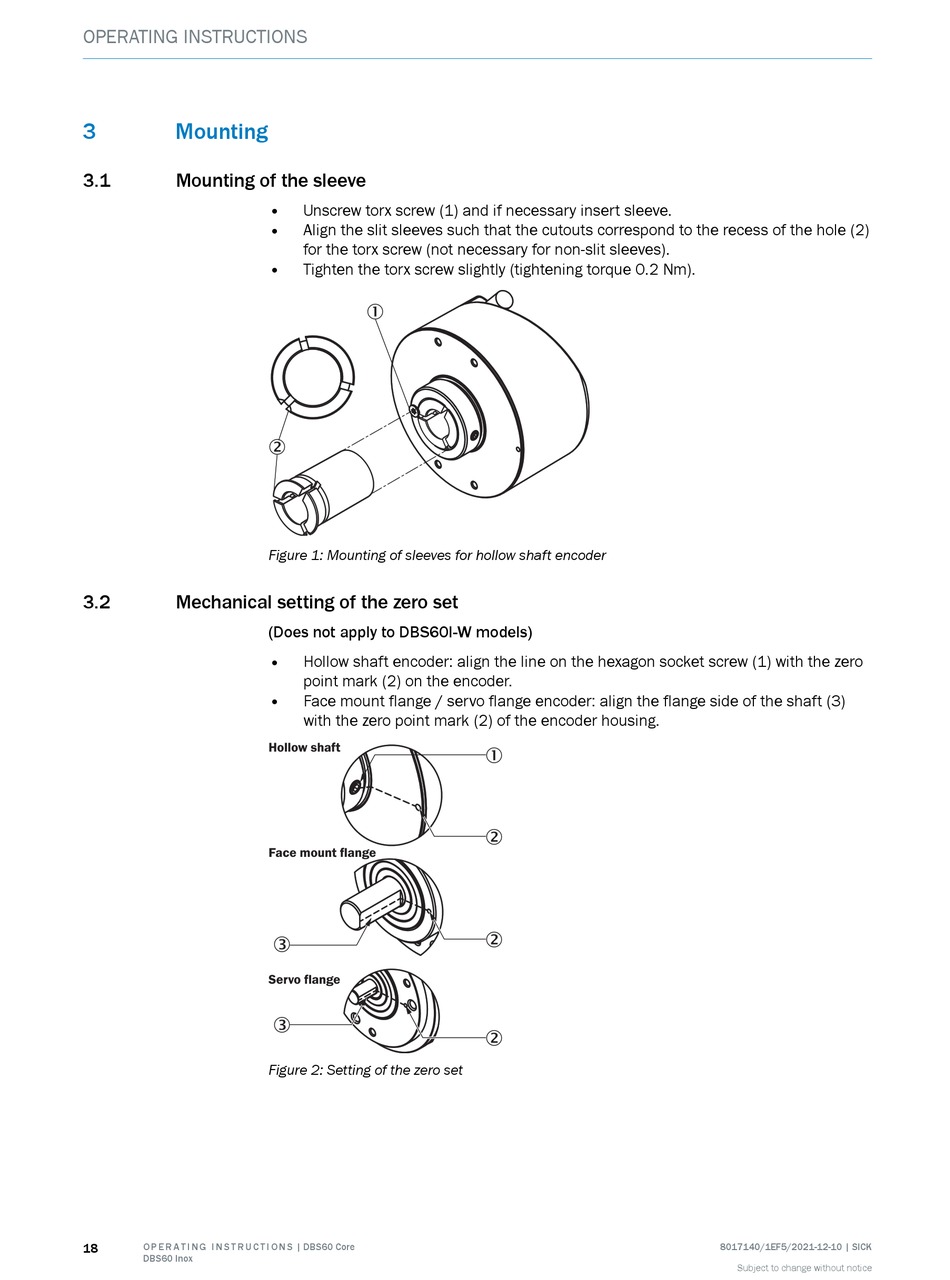

3 Mounting
3.1 Mounting of the sleeve
3.2 Mechanical setting of the zero set
18 O P E R A T I N G I N S T R U C T I O N S | DBS60 Core
DBS60 Inox
• Unscrew torx screw (1) and if necessary insert sleeve.
• Align the slit sleeves such that the cutouts correspond to the recess of the hole (2)
for the torx screw (not necessary for non-slit sleeves).
• Tighten the torx screw slightly (tightening torque 0.2 Nm).
1
2
Figure 1: Mounting of sleeves for hollow shaft encoder
(Does not apply to DBS60I-W models)
• Hollow shaft encoder: align the line on the hexagon socket screw (1) with the zero
point mark (2) on the encoder.
• Face mount flange / servo flange encoder: align the flange side of the shaft (3)
with the zero point mark (2) of the encoder housing.
Hollow shaft
Face mount flange
3
Servo flange
3
Figure 2: Setting of the zero set
1
2
2
2
