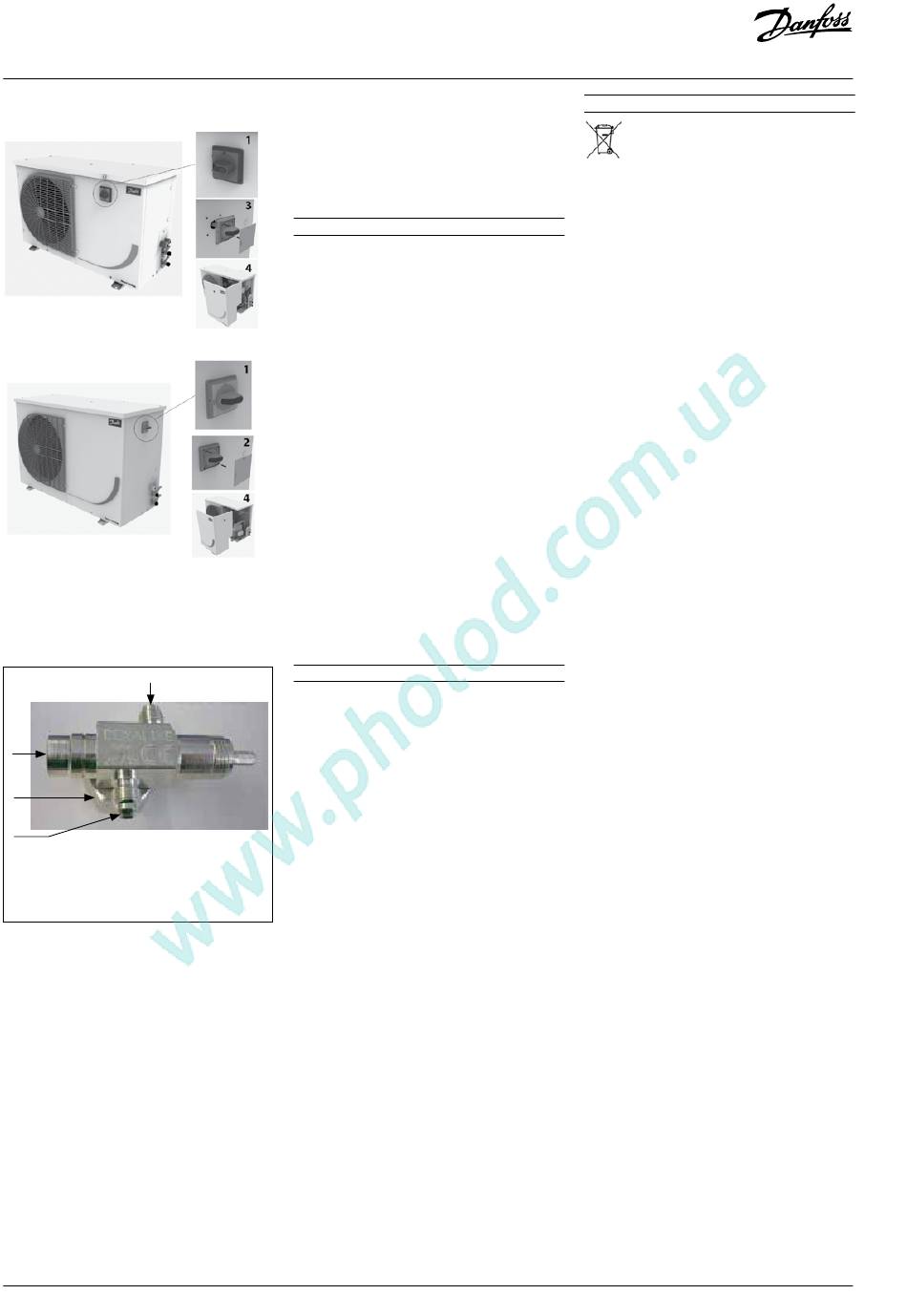

Instructions
Service panel removal
W09 Version.
Step 1: Pull the cap from the isolator switch using
screw driver.
Step 2: Unscrew the isolator switch from the service
panel.
Step 3: Take out the isolator switch.
Step 4: Removing the service panel.
4
2
1
3
1. Valve inlet
2. Valve outlet
3, 4. Service port
Valve Fully Closed (Valve spindle entirely turned
clockwise)
- 1,3 and 4 Connected
- 2 has not connection to other ports
6 | AN37261865152501-010301 - 118A2176C
procedure for Valve opened some turns (valve spindle
somwher between open & close)
- 1,2, 3 and 4 Connected
Valve Fully Opened (Valve spindle entirely
turned anti clockwise)
- 1,2 and 3 Connected
- 4 has not connection to other ports
14 – Declaration of incorporation
Pressure Equipment Directive 2014/68/EU
EN 378-2:2016 - Refrigerating systems and Heat
Pumps - Safety and environmental requirements-
Parts 2: Design, construction, testing, marking and
documentation
Low Voltage Directive 2014/35/EU EN 60335-
1:2012 + A11:2014- Household and similar electrical
appliances-Safety-Part 1: General requirements-for
all above mentioned condensing units
Eco-design
establishing a framework for the setting of Eco-
design requirements for energy-related products.
REGULATION (EU) 2015/1095, implementing Eco-
design Directive 2009/125/EC with regard to Eco-
design requirements for professional refrigerated
storage cabinets, blast cabinets, condensing units
and process Chiller.
• Condensing
produced according to standard "EN 13771-
2:2017". Compressor and condensing units
for refrigeration-performance
test methods- part 2: Condensing units.
Eco design
Coolselector®2 with code number (114X....) to find
the declaration.
• IEC 60335-2-40 applicable clauses Annex JJ and
Annex NN
15 - Warranty
Always transmit the model number and serial
number with any claim filed regarding this product.
The product warranty may be invalied in following
cases:
• Absence of nameplate.
• External modifications; in particular, drilling,
welding, broken feet and shock marks.
• Compressor opened or returned unsealed.
• Rust, water or leak detection dye inside the
compressor.
• Use of a refrigerant or lubricant not approved by
Danfoss.
• Any deviation from recommended instructions
pertaining
maintenance.
• Use in mobile applications.
• Use in explosive atmospheric environment.
• No model number or serial number transmitted
with the warranty claim.
DIRECTIVE 2009/125/
unit measurements
testing and
declaration; refer Danfoss
to installation, application
16 – Disposal
Danfoss recommends that condensing
units and oil should be recycled by a
suitable company at its site.
