Instructions
oil type as identified on the data plate of the unit
and compressor
• Recheck the compressor oil level again after 24
hours operation
• Carry out final leak test and ensure all covers are
fitted and all screws fastened
• Complete refrigerant labelling to comply with
local standard.
• Scroll Compressors are allowed to Operate at
maximum of 12 Start/Stop cycles per hour.
• Reciprocating Compressors are allowed to
Operate at maximum of 10 Start/Stop cycles per
hour.
• Ensure maintenance is carried out in accordance
with the installation instructions
13 – Maintenance
Always switch off the unit at main
switch before removing fan panel.
Internal
pressure
temperature are dangerous and
may cause permanent injury.
Maintenance
operators
installers
require
PPEs, skills, tools to carryout the
maintenance
activity.
temperature may exceed 100°C and
can cause severe burns.
Ensure
that
periodic
inspections
to
reliability and as required by local
regulations are performed.
To prevent system related problems, following
periodic maintenance is recommended:
• Verify that safety devices are operational and
properly set.
• Ensure that the system is leak tight.
• Check the compressor current draw.
• Confirm that the system is operating in a way
consistent with previous maintenance records
and ambient conditions.
• Check that all electrical connections are still
adequately fastened.
• Keep the unit clean and verify the absence of rust
and oxidation on the unit components, tubes and
electrical connections.
• Micro channel heat exchanger surface adequately
cleaned to avoid clogging.
• Timer setting are set at 30 seconds during normal
running condition.
• Optyma™ Slim Pack condensing units are
factory fitted with flare type filter drier. While
changing the filter drier ensure that proper model
designation and direction of flow. Ensure to
conduct the leakage check after replacement.
The condenser must be checked at least once a year
for clogging and be cleaned if deemed necessary.
Access to the internal side of the condenser takes
place through the fan panel. Microchannel coils
tend to accumulate dirt on the surface rather than
inside, which makes them easier to clean than fin-
&-tube coils.
• Switch off the unit at main switch before removing
any panel from the condensing unit.
• All electrical equipments, PPEs, tools must be
compatiable and approved to use with A2L
refrigerants like R454C, R455A & R1234yf.
• Remove surface dirt, leaves, fibres, etc. with a
vacuum cleaner, equipped with a soft brush
or other soft attachment. Alternatively, blow
compressed air through the coil from the inside
out, and brush with a soft bristle. Do not use a
wire brush. Do not impact or scrape the coil with
© Danfoss | Climate Solutions | 2022.02
the vacuum tube or air nozzle.
If the refrigerant system has been opened, the
system has to be flushed with dry air or nitrogen to
remove moisture and a new filter drier has to
be installed. If evacuation or recovery of refrigerant
has to be done, it shall be done in such a way that
no refrigerant can escape to the environment.

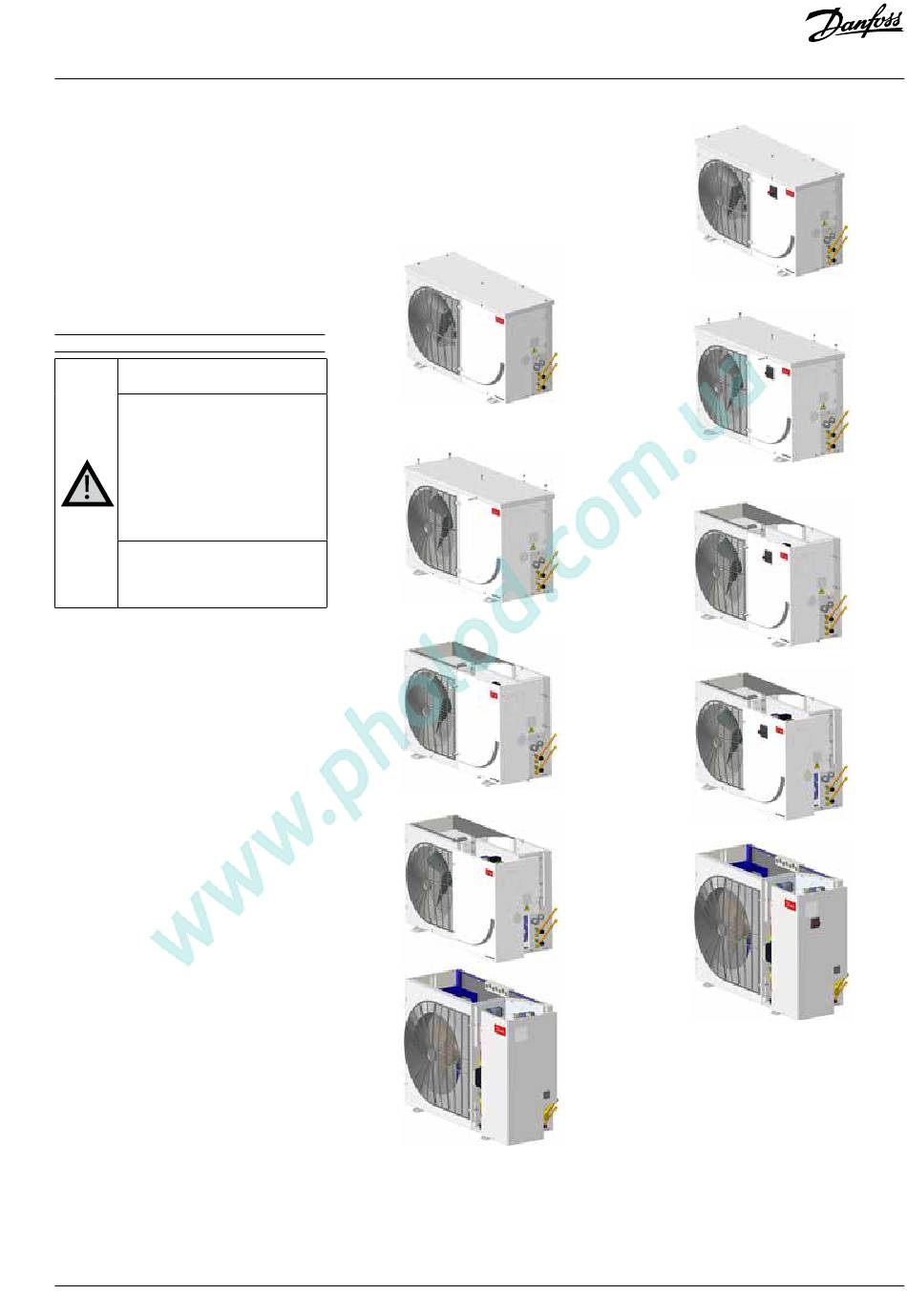

Service
W05 Version.
and
surface
Step 1: Make sure that power supply has been
disconnected.
and
appropriate
Tubing
service
ensure
system
Step 2: Remove all top panel screws and then
remove Top panel.
Step 3: Remove all side panel screws.
Step 4: Remove side panel parallel to main switch.
Step 5: Electrical panel box should be in closed
condition. Ensure there is no refrigerant penetration
inside Electrical panel before connecting to power
supply.
panel
removal
procedure
Service
panel
removal
W09 Version.
for
Step 1: Disconnect power supply. Make sure main
switch is in off condition before servicing.
Step 2: Remove all top panel screws and then
remove Top panel.
Step 3: Remove all side panel screws.
Step 4: Remove side panel on parallel to main
switch.
Step 5: Electrical panel box should be in closed
condition. Ensure there is no refrigerant penetration
inside Electrical panel before connecting to power
supply.
118A2176C - AN37261865152501-010301 | 5
