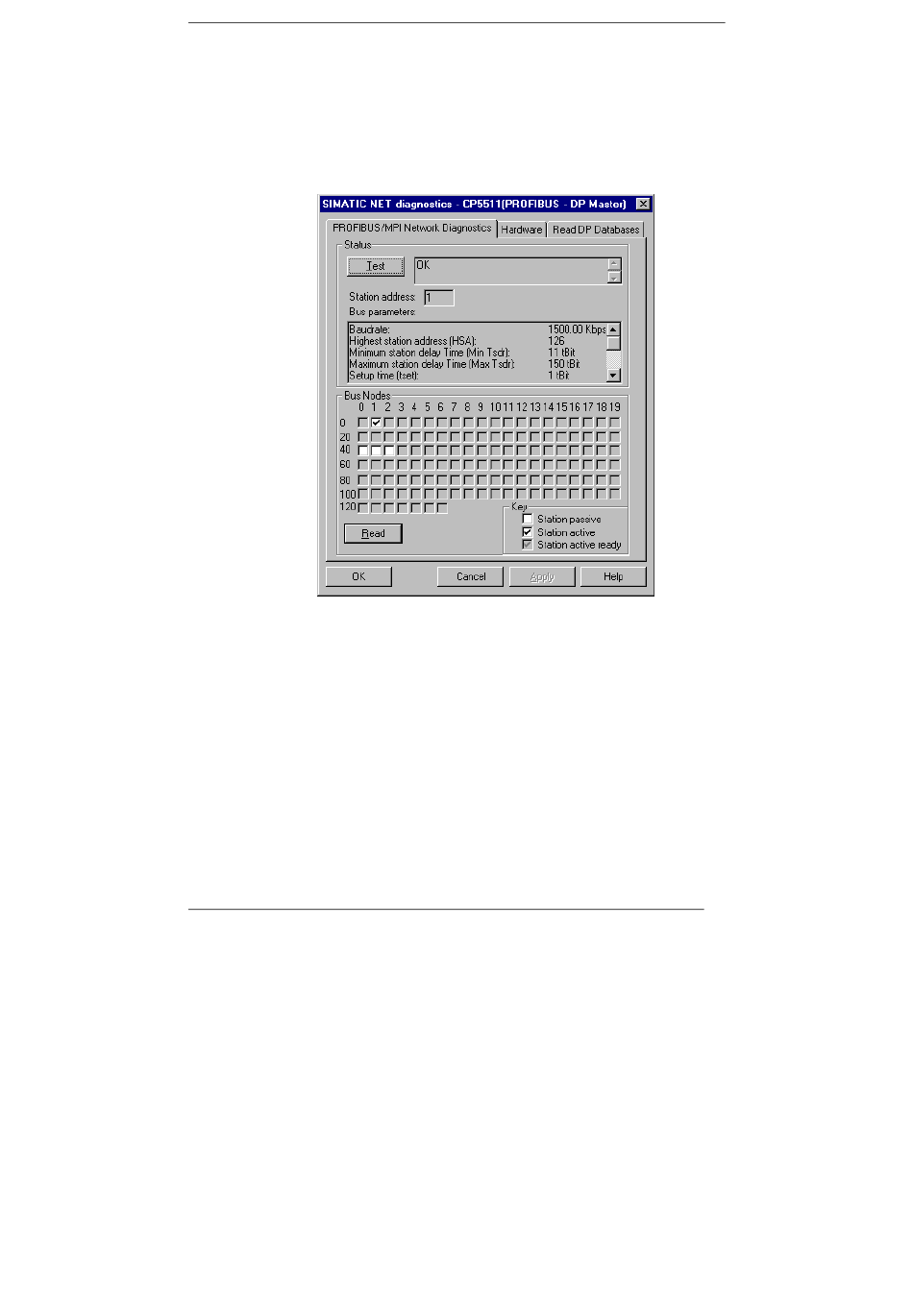

You can test your PROFIBUS network in the "PROFIBUS/MPI Network
PROFIBUS
Diagnostics" tab page by clicking the "Test" button. This displays the
Network
bus parameters, the local address and the status of the bus nodes. To
Diagnostics
obtain an overview of the attached nodes, click the "Read" button.
Normally, this is acknowledged with "OK" in the dialog box beside it.
If an error has occurred, you will receive a detailed error message.
Example here: Active station with address 0 alone on the bus.
