2.7.1 Power Supply in Case of Power Breakdown

Manufacturers of batteries offer fitting 9V block batteries like 6LR61 (alkaline type),
6F22 (zinc-carbon), 6AM6, 522.
Take an adapter cable (included in system delivery) and a loaded 9 V
block battery. Access to the operating unit is required.
1. Connect adapter cable and battery. Take notice of the different sizes of the
sockets for negative and positive battery terminal.
2. Plug adapter cable into the socket at the bottom of the operating unit.

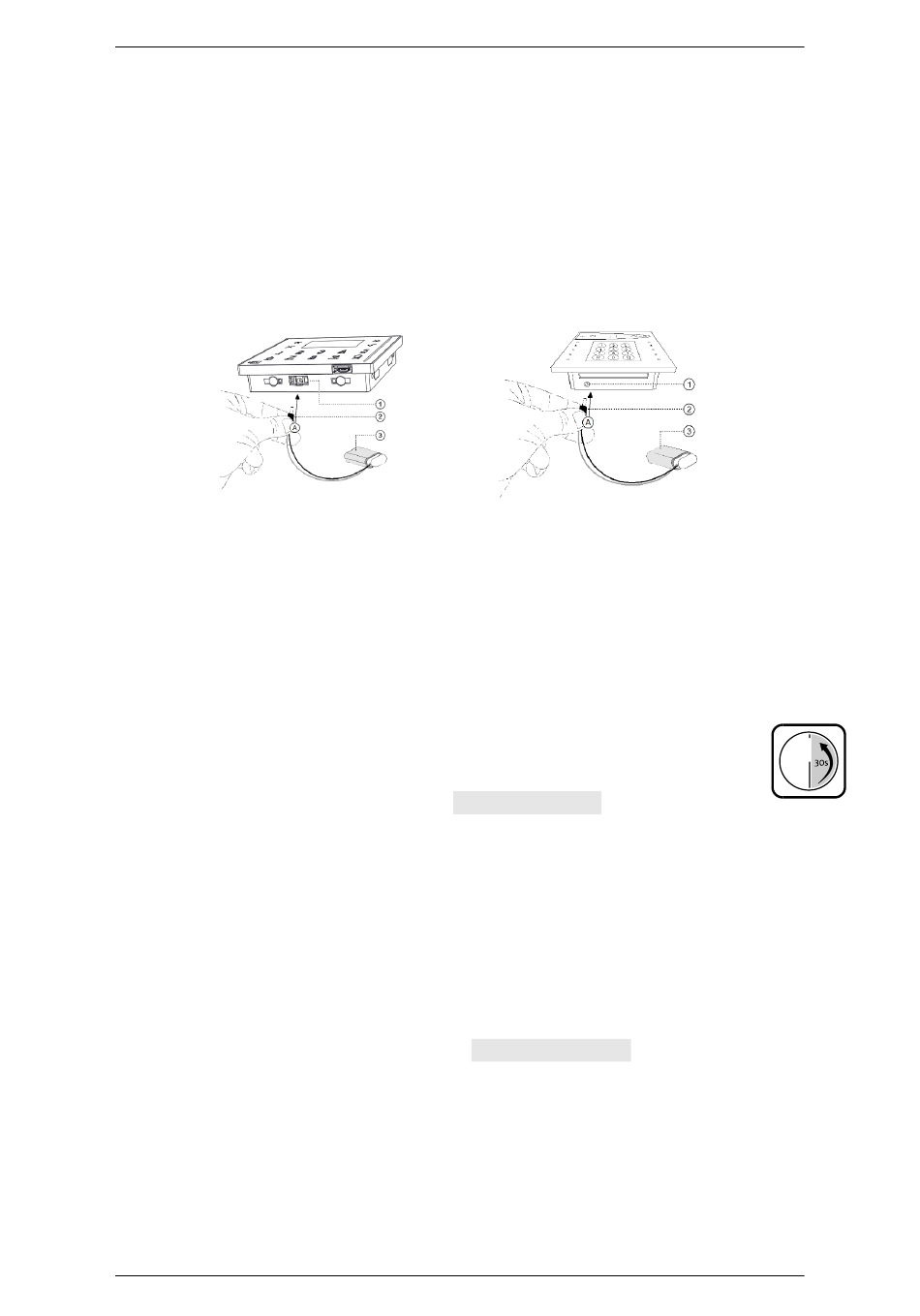

Fig. 5: Connect adapter cable to operating unit
1) Socket for emergency power supply
2) Plug of adapter cable
3) 9 Volt block battery
You have successfully connected the system to power supply via battery.

2.7.2 Display the Status / Info about the System

Press key Enter and release it after a second.
1.
The system checks its status. Date and time are on display.
With the menu keys < and > select Status / Info and press
2.
Enter.
On display are:
- the text 'System Check'
- Lock state (open / middle / closed)
- System state (locked / unlocked)
- State of an optional burglar- / intruder alarm system (armed, set/ disarmed)
- Software- and engine-version of the operating unit / RFID module (optional)
as well as the
- software version of the lock, as the case may be, and the
- basic firmware of the lock system.
The reply code issued most recently, CIT code: XXXX is on display, as it
may be.
You have successfully displayed status information about the system.
