EloStar Master / EloStar Master smart
2

Operation

The system can be operated with operating unit QPad or with operating unit
FlatControl.
2.1

Operating Unit QPad

For EloStar Master smart systems there is the membrane keypad version with
display, with straight or slanted front.
1) Numeric keys (keypad)
2) LED bar (LED red: action erroneous / LED green: action successful)
3) Enter key for confirming
4) Logo (LED red: not secured / LED green: secure / LED blue: parametrising mode)
5) Clear key for cancelling / for deleting digits when entering code
6) Menu key back (and
7) Display
2.2

Operating Unit FlatControl

With operating unit FlatControl, you can also set and operate the system.
1) Display
2) Menu keys < and > for menu navigation
3) Enter-key for affirming / entering the selected menu item / input value
4) Numeric keypad with two function keys
5) Menu keypad
6) Clear-key in order to cancel
A slot for chip cards is at the bottom of the operating unit.
Kurzbedienungsanleitung V.1.01D

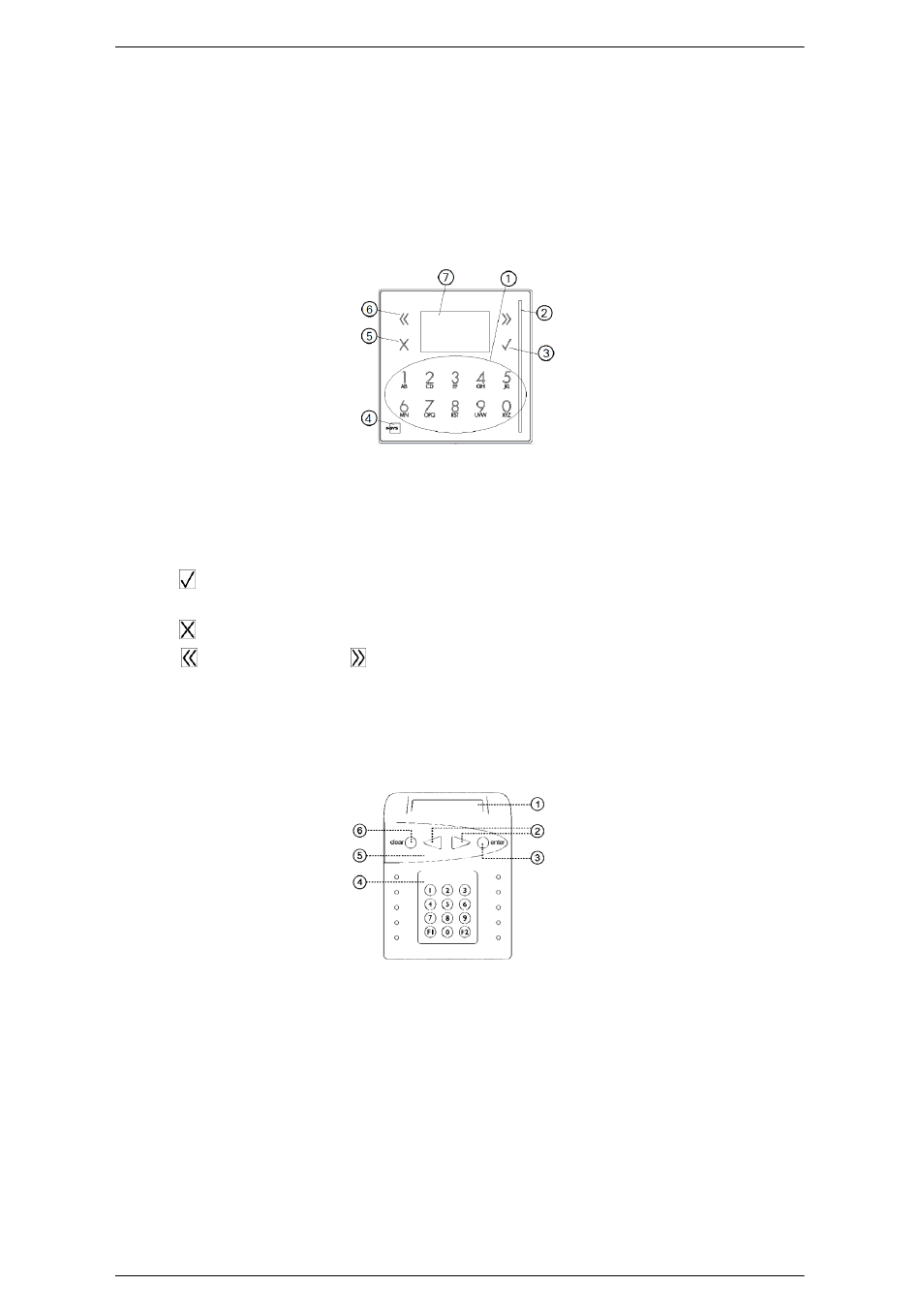

Fig. 1: Control elements of QPad
forward on the right side)
Fig. 2: Control elements FlatControl
25

Operation

Quick Reference Guide V.1.01D
