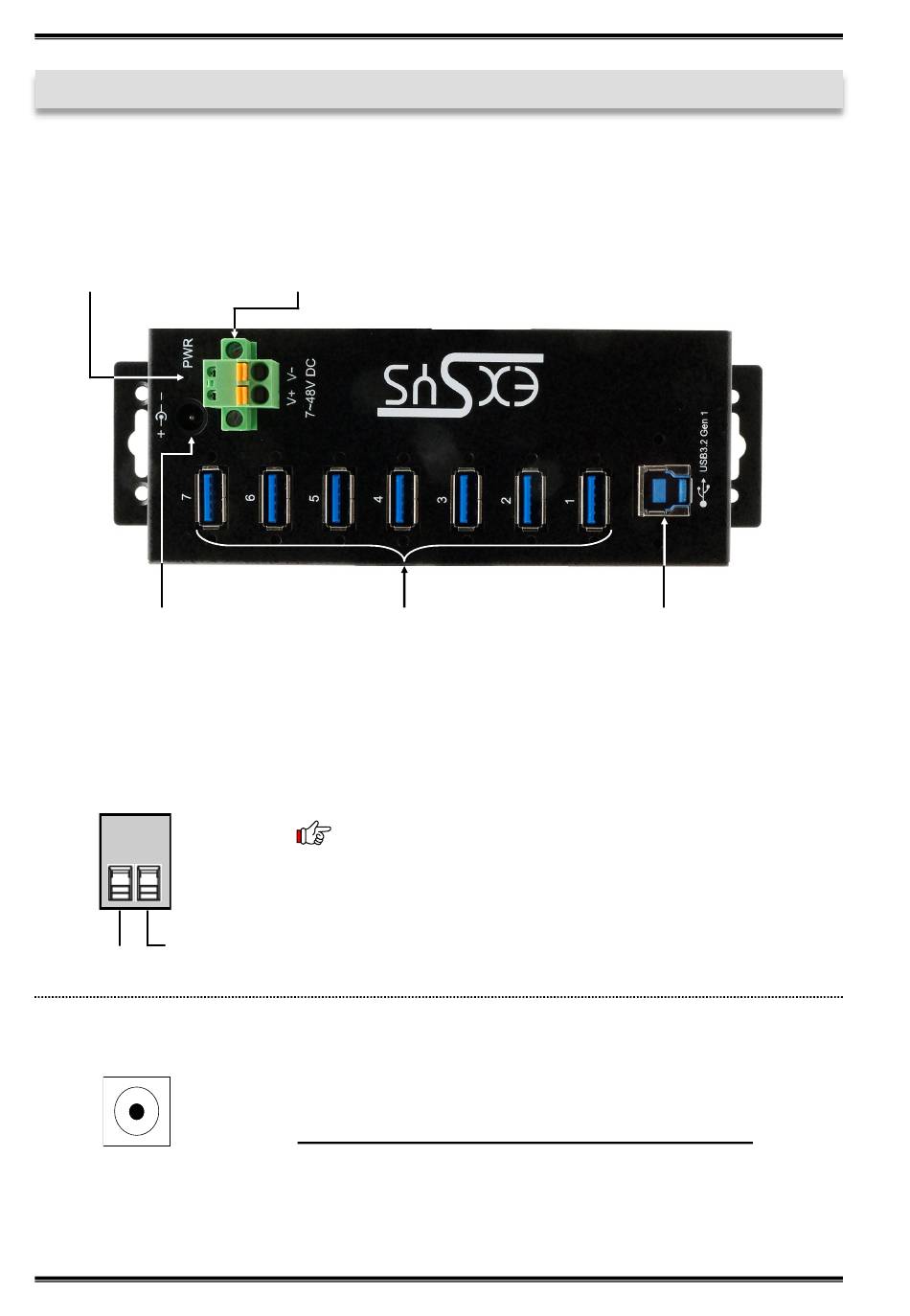

3. Layout & Connectors

3.1 Layout

Front Side:
7-48V T-Block for optional
Power LED
7-48V DC-Connector for
optional Power Supply

3.2 Connectors

+7V to +48V T-Block:
GND (Ground)
+7V - 48V
+7V to +48V DC-Connector:
© Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved
Power Supply
7x USB 3.2 Gen 1
Downstream A-Port
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
ATTENTION!!!
Only for use with optionally available power supply!
1x USB 3.2 Gen 1
Upstream B-Port
10
EX-1187HMVS-2
