EX-1185HMVS-2

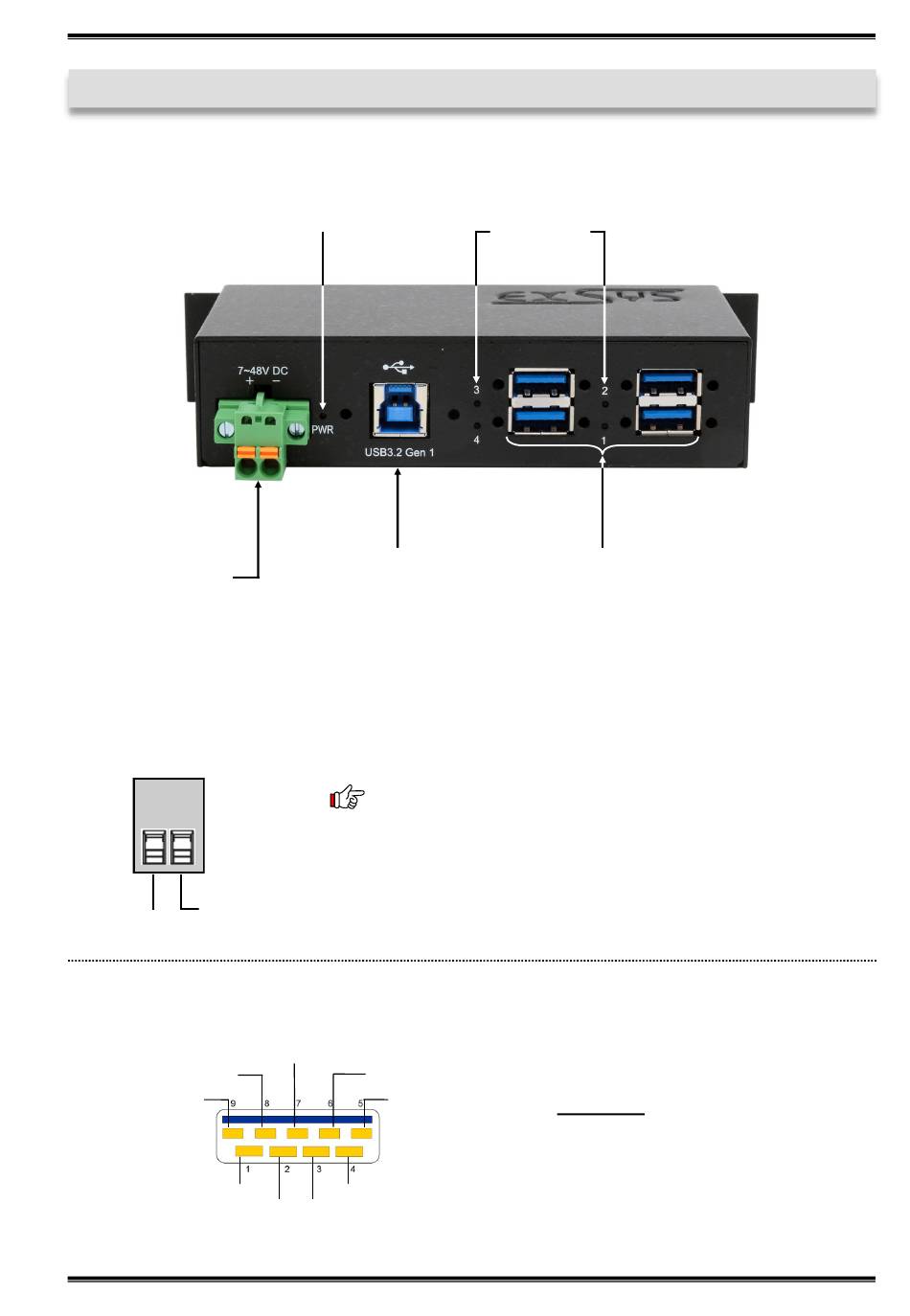

3. Layout & Connectors

3.1 Layout

7-48V T-Block
for optional external
Power Supply

3.2 Connectors

+7V - 48V T-Block:
GND (Ground)
+7V - 48V
USB 3.2 (Gen1) A-Port:
StdB_SSTX +
StdB_SSTX -
VCC
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
Power LED
1x USB 3.2 (Gen1)
Upstream B-Port
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
GND
D- D+
Status LED
per Port
4x USB 3.2 (Gen1)
Downstream A-Port
Attention!
Never plug in with force
or in wrong direction.
9
English
