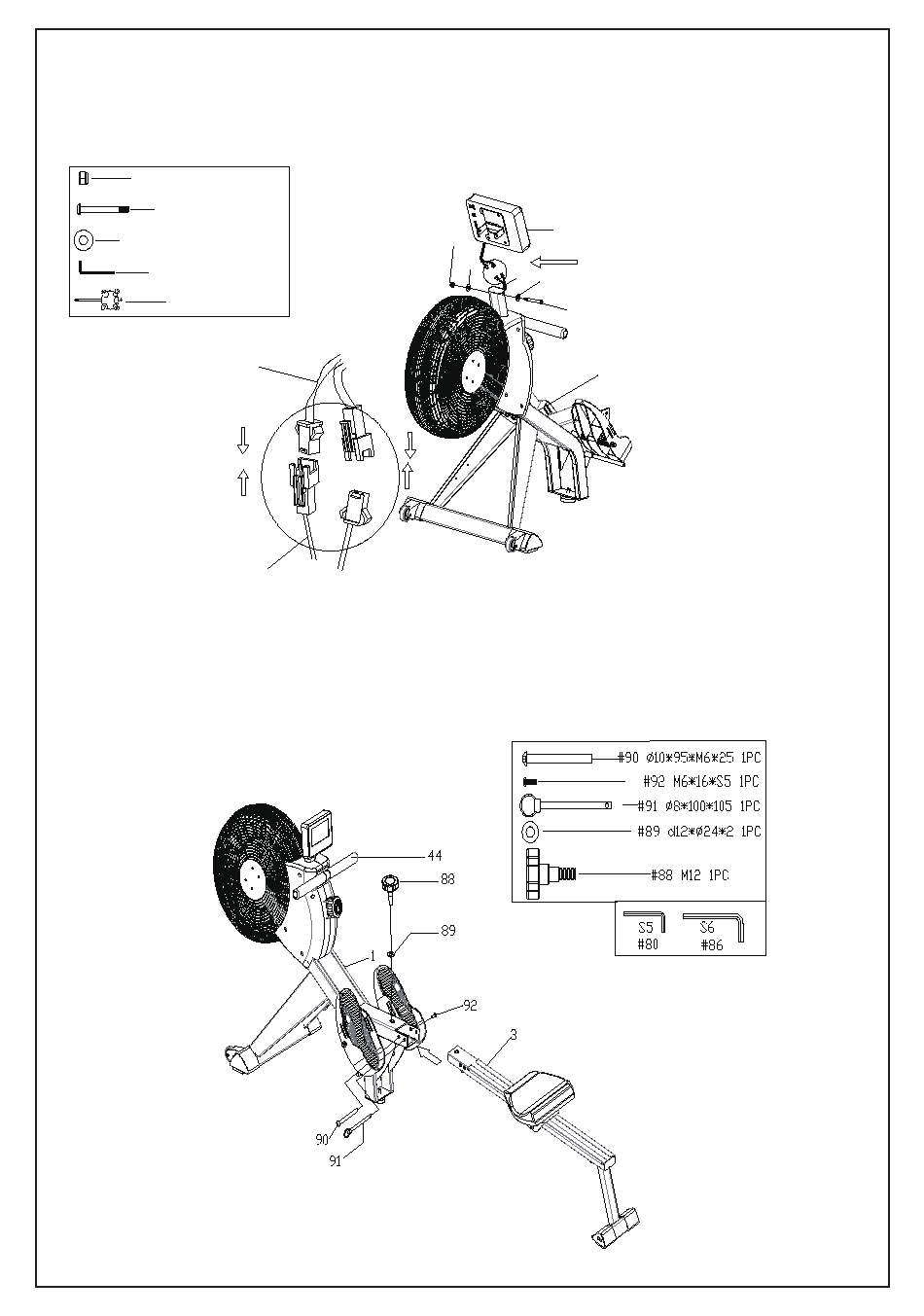

Step 4:
First connect the two Sensor Wires , and then attach the Console（#68）to the Main Frame
(#1). Insert the screw (#70) and OD12*ID6.5*1.5 washer (#82) into the hole, screw the Nut
（#41）into screw (#70). Finally, using the Spanner (#80) and Wrench (#81) to lock.
#41 M 6 1pc
#70 M 6*70 1pc
68
#82 O D 12*I D 6. 5*1. 5 2pcs
72
71
#80
S 5
80
71
#81
S 10-19
70
68
1
80
Step 5:
Attach the Sliding Rail (#3) to Main Frame (#1) using 1 Bolt (No. 90) and 1 Screw (#92)).
Tighten and secure with Allen Wrench (#80) and Allen Wrench (#86).
Next, attach the top of the Sliding (#3) to the Main Frame (#1) using 1 Knob (#88) and 1
Washer (# 89), then insert Pull Pin (#91).
-24-
