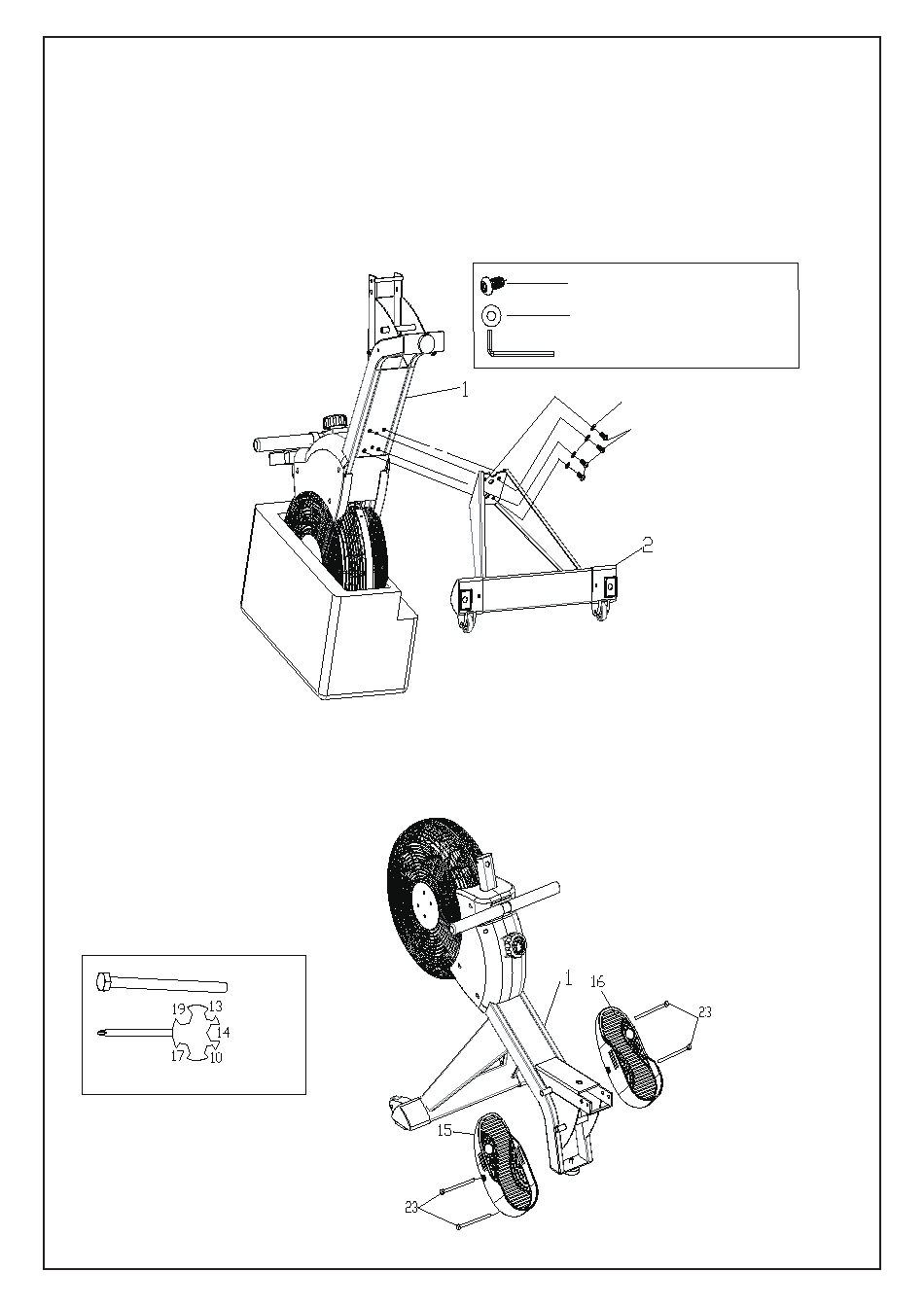

Step 2:
Connect the Front Stabilizer (#2）with Main Frame（#1）by using 4 pcs Screws (#69) and
4pcs Flat gasket (#71), and locked by Spanner (#80)
Note: The frame has a package of Styrofoam in the middle of the assembly. When assem-
bling, the front roller is facing downwards. After tightening the screws, stand up and remove
the Styrofoam
# 69 M8*15 4pcs
#71 OD16*ID8.5*1.5 4pcs
#80 S5 1pc
71
69
Step 3:
#23 M12 4pcs
# 81 S10-19
