200V - 230V Three-Phase
WARNING!
!

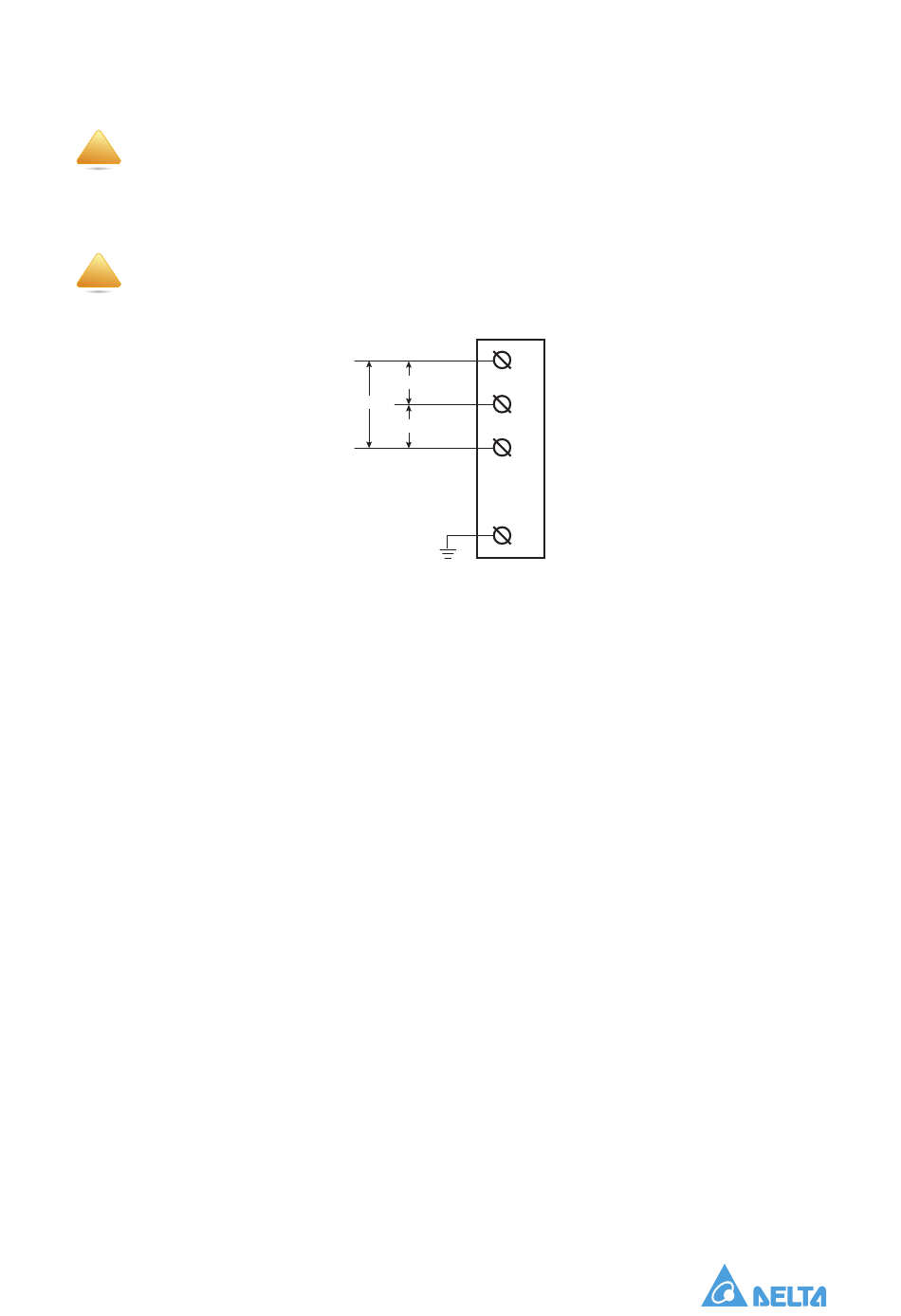

The following diagram illustrates the DC Wallbox connection to L1, L2, and L3 in a
Delta- connection power grid feed. The earth ground must be connected to neutral at a
single point, typically at the breaker panel.
WARNING!
!
An earth connection is essential before connecting supply.
Installation and Operation Manual
Important Safety and Wiring Instructions
L1
230V
L2
230V
230V
L3
PE
5
