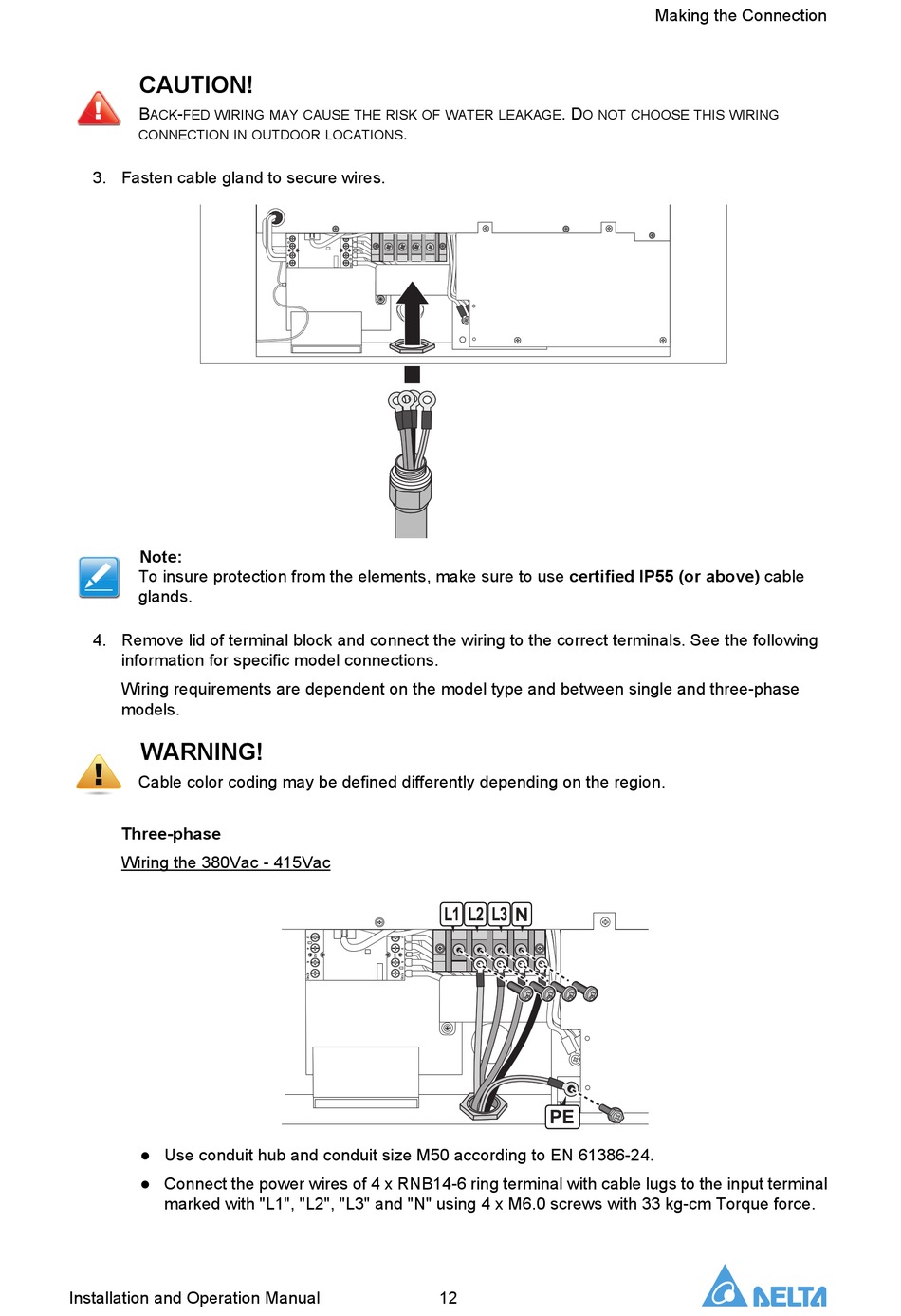

Delta DC Wallbox-Ladegerat Installations- Und Bedienungshandbuch Seite 16

CAUTION!
!
B -
ACK FED WIRING MAY CAUSE THE RISK OF WATER LEAKAGE
CONNECTION IN OUTDOOR LOCATIONS
3. Fasten cable gland to secure wires.
Note:
To insure protection from the elements, make sure to use certified IP55 (or above) cable
glands.
4. Remove lid of terminal block and connect the wiring to the correct terminals. See the following
information for specific model connections.
Wiring requirements are dependent on the model type and between single and three-phase
models.
WARNING!
!
Cable color coding may be defined differently depending on the region.
Three-phase
Wiring the 380Vac - 415Vac
Use conduit hub and conduit size M50 according to EN 61386-24.

Connect the power wires of 4 x RNB14-6 ring terminal with cable lugs to the input terminal

marked with "L1", "L2", "L3" and "N" using 4 x M6.0 screws with 33 kg-cm Torque force.
Installation and Operation Manual
. D
.
L1 L2 L3 N
PE
12
Making the Connection
O NOT CHOOSE THIS WIRING
