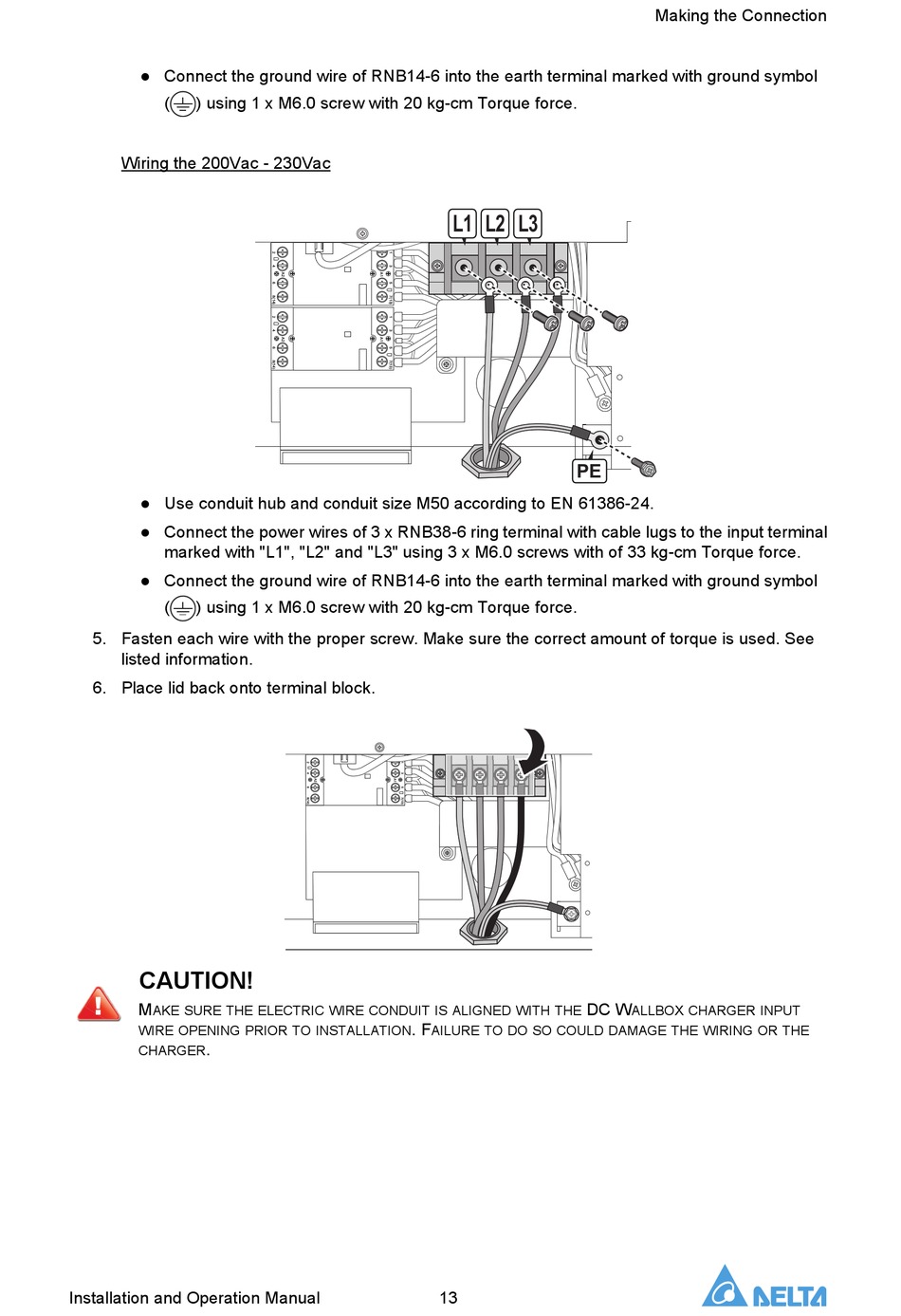

Connect the ground wire of RNB14-6 into the earth terminal marked with ground symbol

( ) using 1 x M6.0 screw with 20 kg-cm Torque force.
Wiring the 200Vac - 230Vac
Use conduit hub and conduit size M50 according to EN 61386-24.

Connect the power wires of 3 x RNB38-6 ring terminal with cable lugs to the input terminal

marked with "L1", "L2" and "L3" using 3 x M6.0 screws with of 33 kg-cm Torque force.
Connect the ground wire of RNB14-6 into the earth terminal marked with ground symbol

( ) using 1 x M6.0 screw with 20 kg-cm Torque force.
5. Fasten each wire with the proper screw. Make sure the correct amount of torque is used. See
listed information.
6. Place lid back onto terminal block.
CAUTION!
!
M
AKE SURE THE ELECTRIC WIRE CONDUIT IS ALIGNED WITH THE
WIRE OPENING PRIOR TO INSTALLATION
.
CHARGER
Installation and Operation Manual
L1 L2 L3
PE
. F
AILURE TO DO SO COULD DAMAGE THE WIRING OR THE
13
Making the Connection
DC W
ALLBOX CHARGER INPUT
