ASSEMBLING THE DEVICE

NOTE:
Before assembling the device, you must insert the microSD card of the navigation software
into the device (see page 3 above). If necessary, you can insert an additional MicroSD card
for media into the lower card slot.
MAIN DEVICE MONITOR

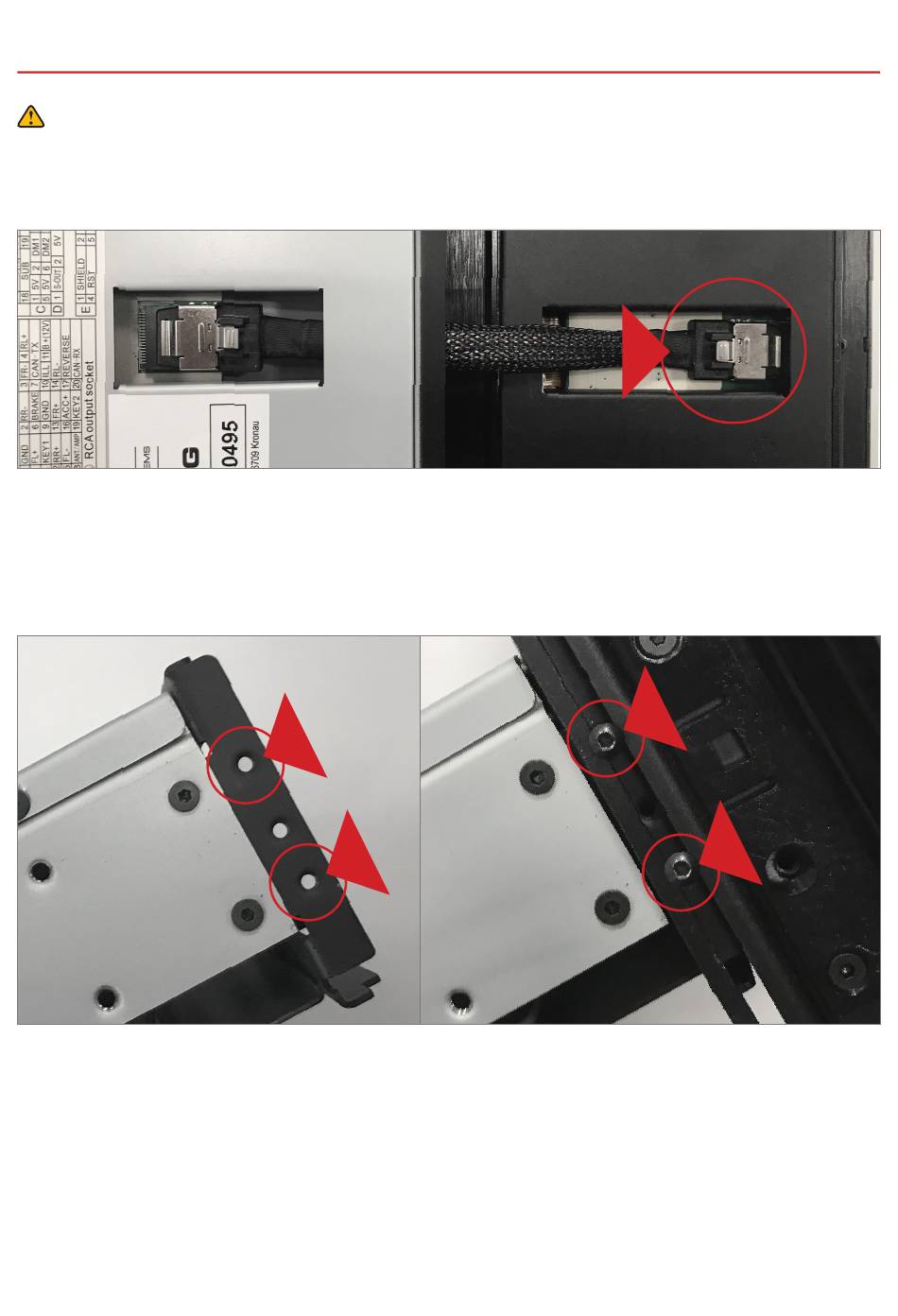

First, connect the plug of the main unit to the monitor. Make sure that the plug clicks
into place completely.
MONITOR
MAIN DEVICE MAIN DEVICE
Now attach the monitor to the main unit. Use four of the enclosed fastening screws.
There is an elongated hole on each side of the monitor, which you must position over
the two mounting holes on the main unit.
Then screw in the fastening screws on the right and left of the main unit. Use the top
and bottom screw holes as shown above.
Before you tighten the fastening screws, align the monitor according to your instal-
lation situation. Make sure that the monitor is level before you tighten the fastening
screws.
9
