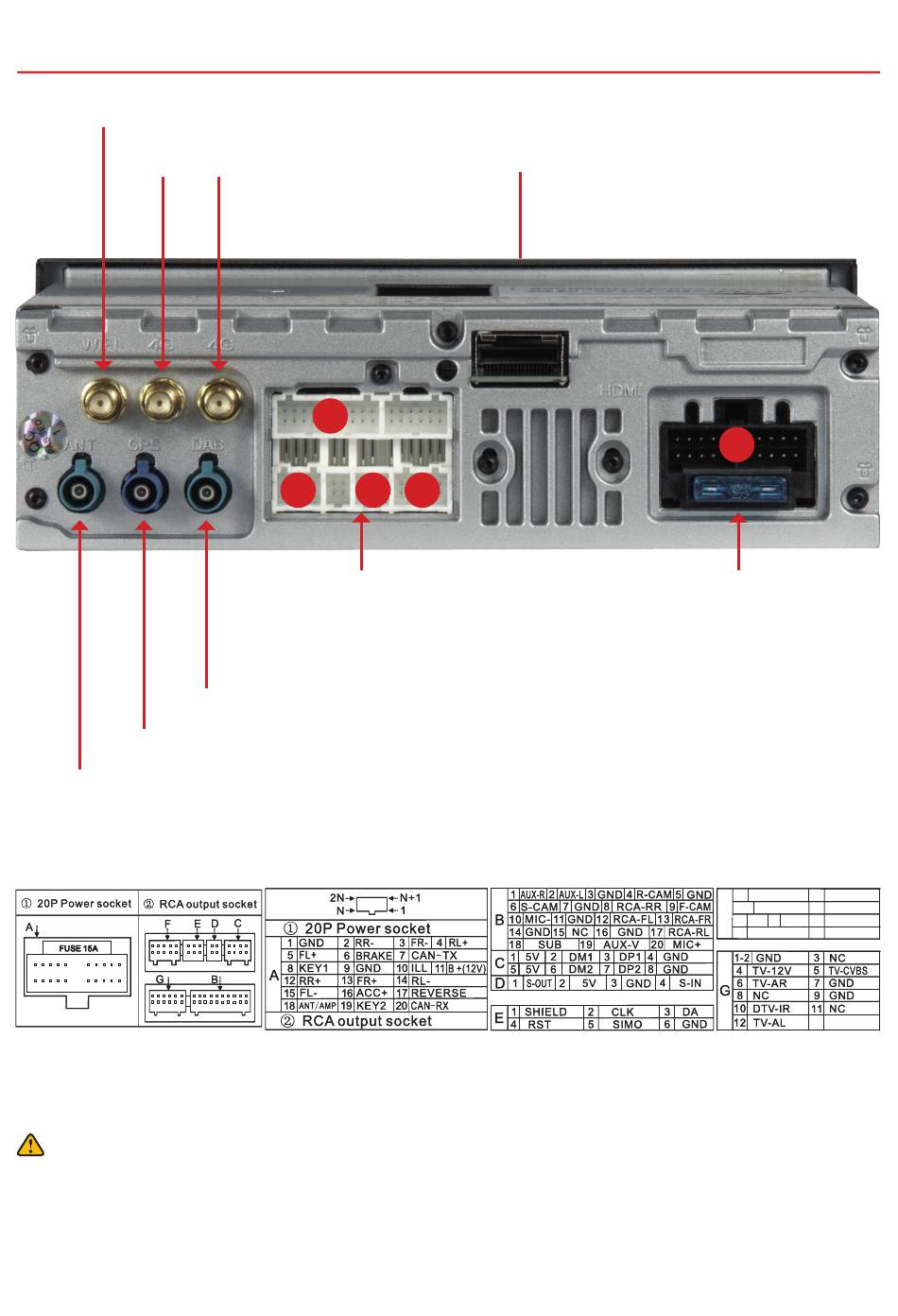

WIRING DIAGRAM

WIRING DIAGRAM
WiFi antenna WiFi antenna
4G/LTE antennas 4G/LTE antennas
GPS antenna GPS antenna
Radio antenna Radio antenna
Connection assignment Connection assignment
NOTE: NOTE:
The handbrake signal must be connected to the enclosed cable. When the handbrake is The handbrake signal must be connected to the enclosed cable. When the handbrake is
applied, the signal must be at ground. According to legal regulations, the device may only applied, the signal must be at ground. According to legal regulations, the device may only
play a DVD or video playback on the main screen when the handbrake is on. The connection play a DVD or video playback on the main screen when the handbrake is on. The connection
cable must therefore not be permanently connected to ground. While driving, the screen is cable must therefore not be permanently connected to ground. While driving, the screen is
switched off to avoid accidents caused by carelessness. switched off to avoid accidents caused by carelessness.
6
B B
C C
Inputs for AV cable sets Inputs for AV cable sets
(G and D can be assigned (G and D can be assigned
for later accessories) for later accessories)
DAB antenna DAB antenna
Monitor
only in connection with the separately
available installation set VNA-EXT-KIT100
E E F F
A A
20-pin system socket 20-pin system socket
with fuse with fuse
1 CVBS-OUT1 1 CVBS-OUT1
3-4 NC 3-4 NC
F F
6 NC 7 GND 8 NC 6 NC 7 GND 8 NC
9 GND 9 GND
2 CVBS-OUT2 2 CVBS-OUT2
5 C-POW 5 C-POW
10 NC 10 NC
