VNA-EXT-KIT100 INSTALLATION (OPTIONAL)
With the separately available installation set VNA-EXT-KIT100, it is possible to install the
monitor separately from the main device in the vehicle. The set is required e.g. for many
Volkswagen vehicles in which the head unit is positioned in the glove compartment.

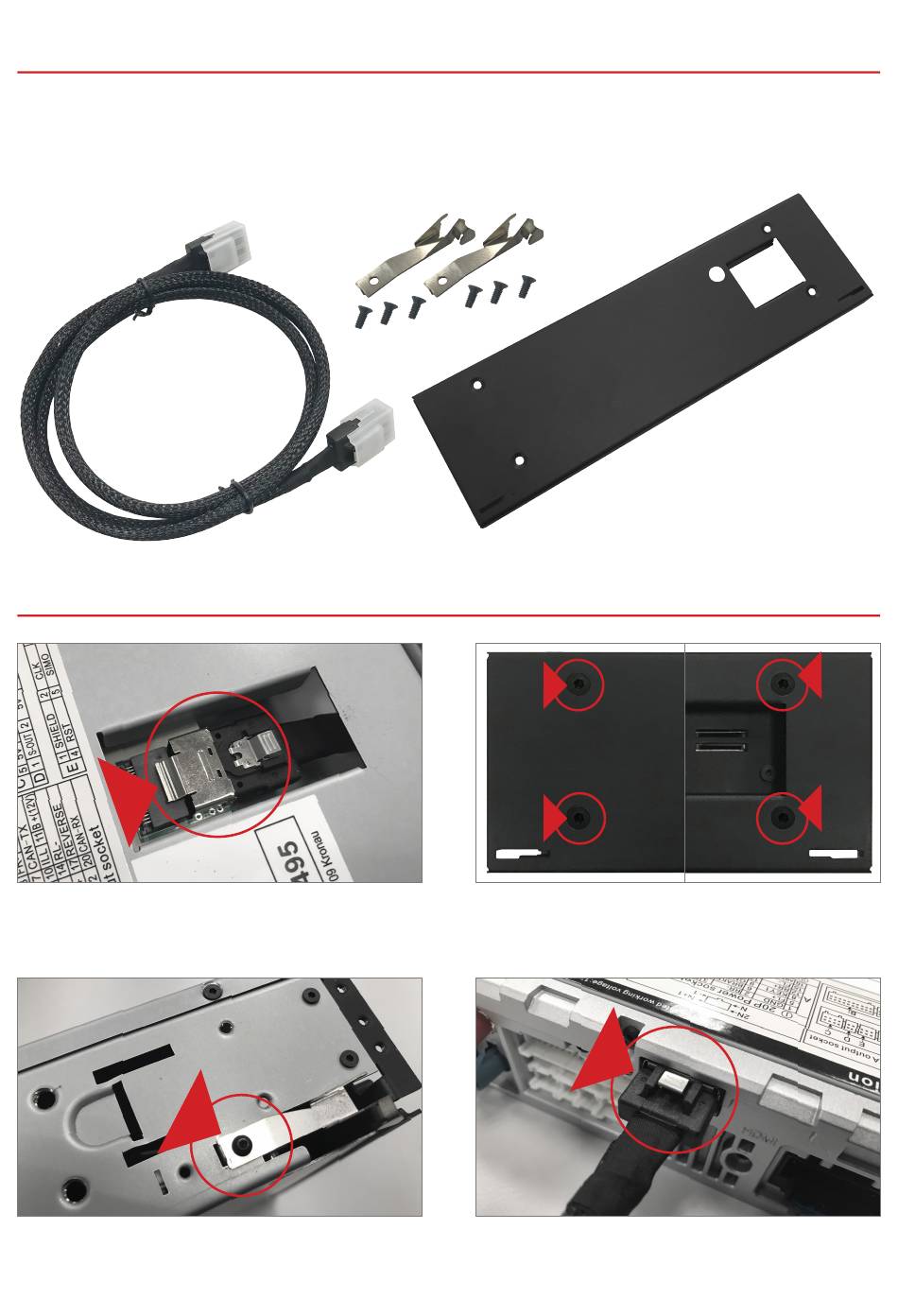

INSTALLING THE DEVICE WITH VNA-EXT-KIT100
First remove the short connection cable
from the main unit.
Now attach the retaining clips to the
main device on both sides.
10
Then attach the cover to the main de-
vice.
Plug the included connection cable into
the main device at the rear.
