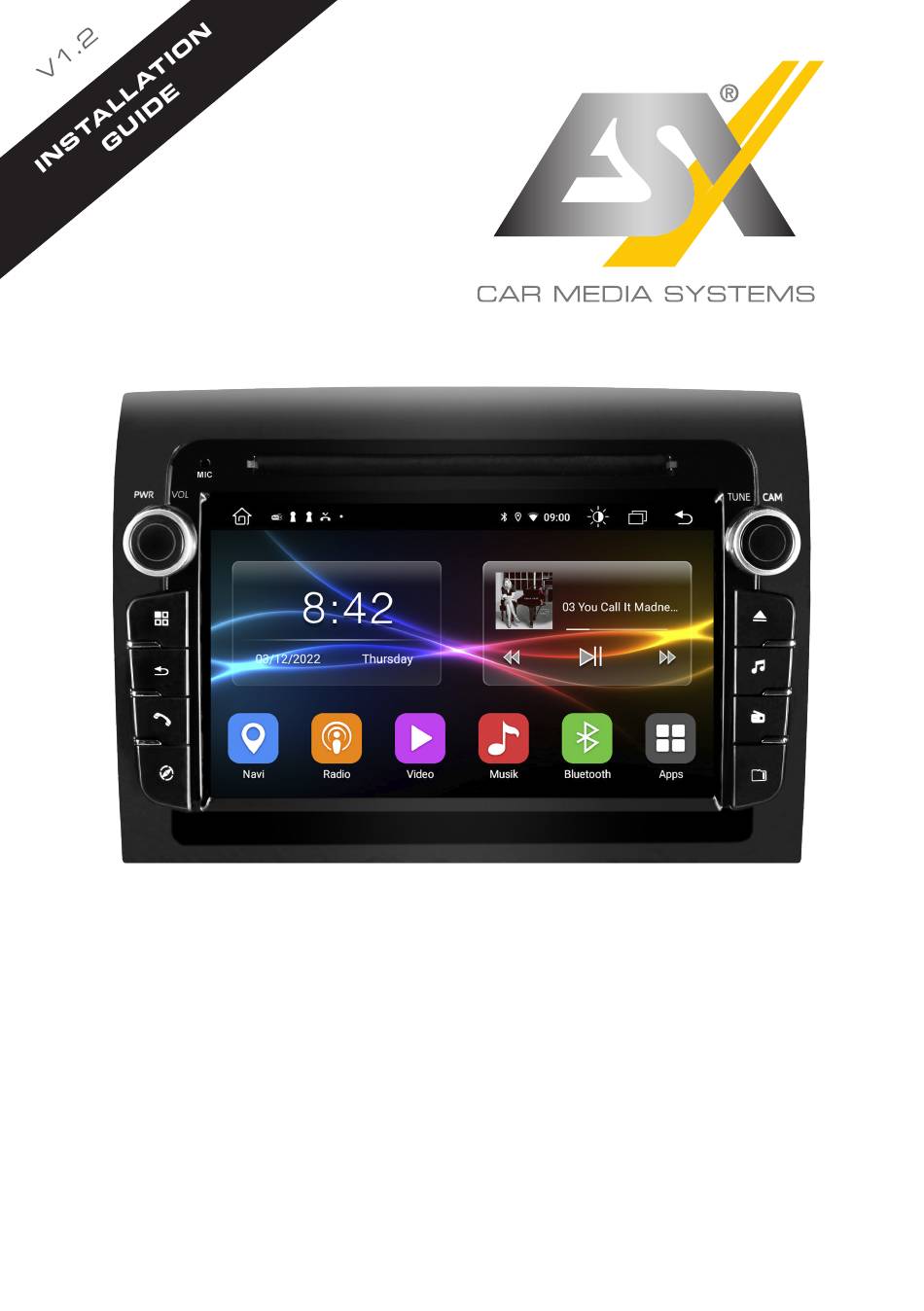

- Seite 1 VN740-DBJ-4G VN740-DBJ-CAN-4G SMART NAVICEIVER MOBILE INTERNET READY V I S I O N A N D R O I D S E R I E S ™...
- Seite 2 IMPORTANT NOTES This guide is an aid for the professional installation of the device. Please note the following notes before installation: • Always handle all parts of the device and the components of your vehicle with care. • Under all circumstances observe the regulations of the vehicle manufacturer and do not make any changes to the vehicle which could impair driving safety.
- Seite 3 ESX Naviceiver. For example, after removing the original radio, the on-board electronics cause an error message and the odometer read- ing starts to flash.
- Seite 4 SCOPE OF DELIVERY ITEM FIGURE QUANTITY Main device System cable set with ISO connector (Only with VN740-DBJ-4G) System cable set with CAN-Bus decoder VNA-LFB-FD3.40 (Only with VN740-DBJ-CAN-4G) AV cable set 1 with audio and video connections incl. rear view camera (14-pin connector) USB port 1 (4-pin connector)
- Seite 5 SCOPE OF DELIVERY ITEM FIGURE QUANTITY Camera cable set for HD rear view camera (10-pin connector) AV cable set 2 with power, audio and video connections, additional camera input (8-pin connector) GPS antenna DAB antenna 4G/LTE antenna 4G/LTE-Antenne Adapter for analog steering wheel remote control VNA-LFB-FD6 Installation frame for...
- Seite 6 WIRING DIAGRAM GPS antenna WiFi antenna Fuse 10A DAB antenna 4G/LTE antenna Inputs for AV cable sets 20-pin system socket Radio antenna (F can be assigned for later accessories) ASSIGNMENT OF THE SYSTEM CONNECTOR AT VN740-DBJ-4G System cable set (20-pin connector, black) Cable brown (BRAKE): Connection for handbrake signal (ground) Cable pink (BACK):...
- Seite 7 WIRING DIAGRAM ASSIGNMENT OF THE SYSTEM CONNECTOR AT VN740-DBJ-CAN-4G System cable set with CAN-Bus decoder (20-pin connector, black) RCA white (AUX-L): Audio input for factory AUX connection / left RCA red (AUX-R): Audio input for factory AUX connection / right RCA yellow (CAMERA): Camera input for factory rear-view camera Cable orange (AMP CON):...
- Seite 8 INSTALLATION TIPS The following installation example shows the installation of an ESX Smart Naviceiver in a Fiat Ducato IV model. Due to the many different equipment variants of the Ducato / Boxer / Jumper platform, the installation conditions shown may differ from your vehicle.
- Seite 9 INSTALLATION TIPS Installation frame Use a suitable cut-off machine for this. There are two bars in the radio slot that you have to remove. Fasten the enclosed installation frame in Then on top of the installation frame inside the radio slot using the enclosed screws at the radio slot.
- Seite 10 INSTALLATION TIPS USB port 1 and 4G/LTE dongle Then open the storage compartment above Remove the inner tray of the storage com- the glove compartment and loosen the partment. screws on the inner tray. Drill a sufficiently large hole (approx. 19 mm Now route the connector through the drilled diameter recommended) in the left side wall opening.
- Seite 11 INSTALLATION TIPS External microphone and 4G/LTE antenna To route the external microphone and the Loosen the two screws on the left and right 4G/LTE antenna, you must remove the top of the speedometer and then carefully pull cover of the speedometer display. the cover out from the back to the top.
- Seite 12 Keramiklinie (schwarzer Teil) tion. Die Folienantenne kann nicht erneut aufgeklebt werden. Erdungsblatt* il) um die Frontscheibe. Hier ist nicht ausreichend Klebkraft INSTALLATION TIPS Installieren der Antenne an der rechten Seite GPS antenna When installing the GPS antenna in the ve- arzer Teil) hicle, the GPS accuracy is determined by the installation position and the body shape...
- Seite 13 INSTALLATION TIPS Interconnection After you have installed all antennas and Then connect all connections to the ESX components in the vehicle, make sure that Naviceiver as described on pages 6 and 7. their connections are easily accessible and of sufficient length in the radio slot.
- Seite 14 SETUP THE 4G/LTE INTERNET CONNECTION First lay the two 4G/LTE antennas inside the dashboard towards the windshield, one antenna for the left and one for the right. Ideally, you should stick the antennas to the windshield to ensure optimal recep- tion.
- Seite 15 SETUP THE 4G/LTE INTERNET CONNECTION Then turn on the device to test the 4G/LTE connection. After the device has started, enter After successful entry, the SIM card is your 4-digit PIN code of the SIM card unlocked. If the device is successfully here.
- Seite 16 ESX Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510 www.esxnavi.de - www.audiodesign.de © All rights reserved. Subject to technical changes and errors.
