ASSEMBLING THE DEVICE

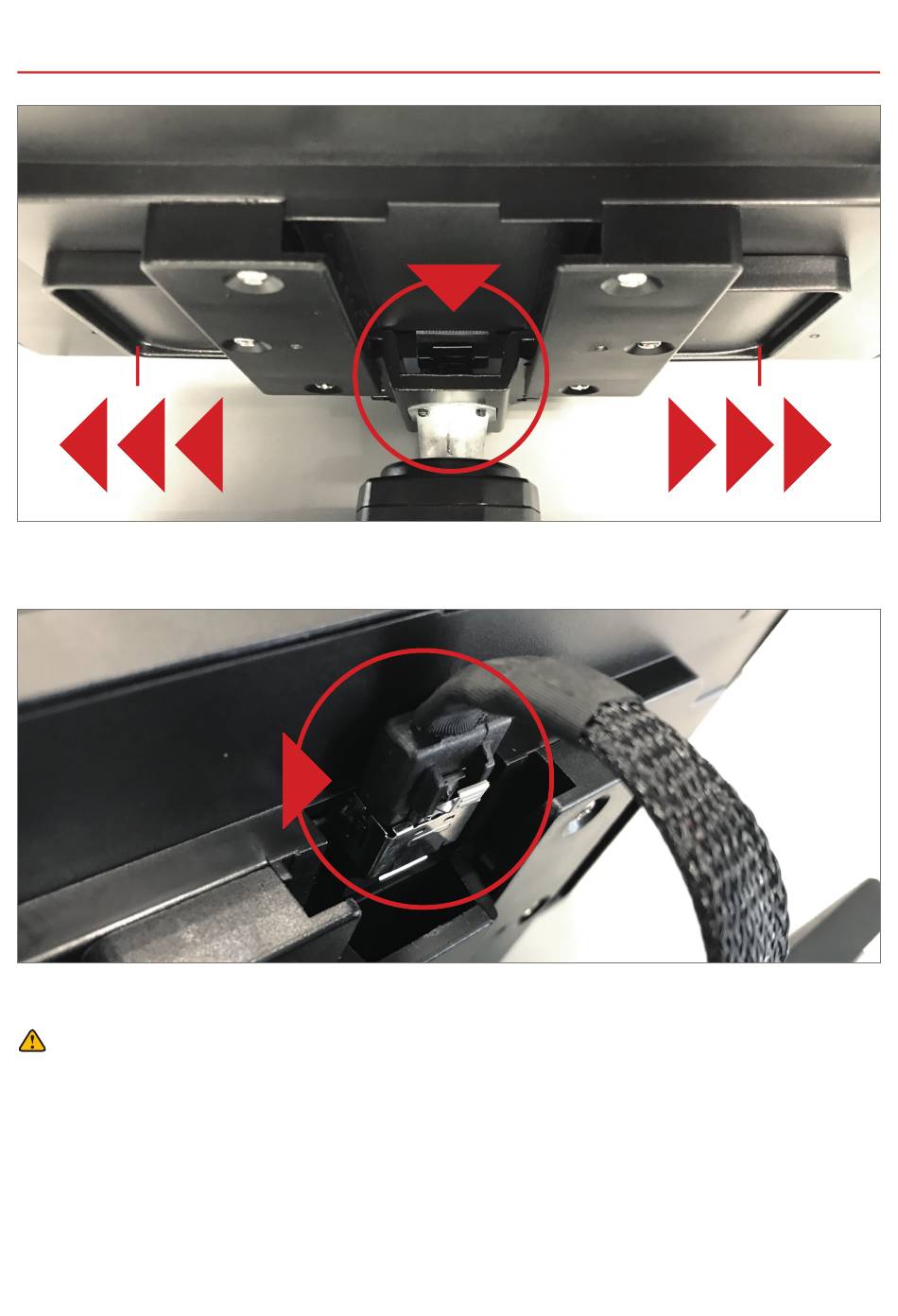

Slide the monitor onto the bracket on the main unit and release the two retaining
brackets on the side by sliding them outwards.
Plug in the connector of the monitor to the main unit.
IMPORTANT NOTE:
If the monitor does not work after connecting it to the main device, the connector of the con-
necting cable may not be properly engaged.
Then pull at the monitor the connector of the cable away from the connector until it clicks into
place correctly without pressing the release button.
