HOMCOM A90-213V01 Montageanleitung Seite 7

The Saddle Adjustment Frame (7) is installed in the Saddle Post (4) and fixed with the
Flat washer (19), an six angle bolts (28) and a adjusting nut (15). Then the
arranged on the Saddle Adjustment Frame
wrench (25). Install adjusting nut(29) on main body(1).
Note: Loosening the adjusting nut (15) can adjust the Saddle Adjustment Frame (7)
position before and after adjusting to the corresponding position, the adjusting nut (15)
needs to be tightened .

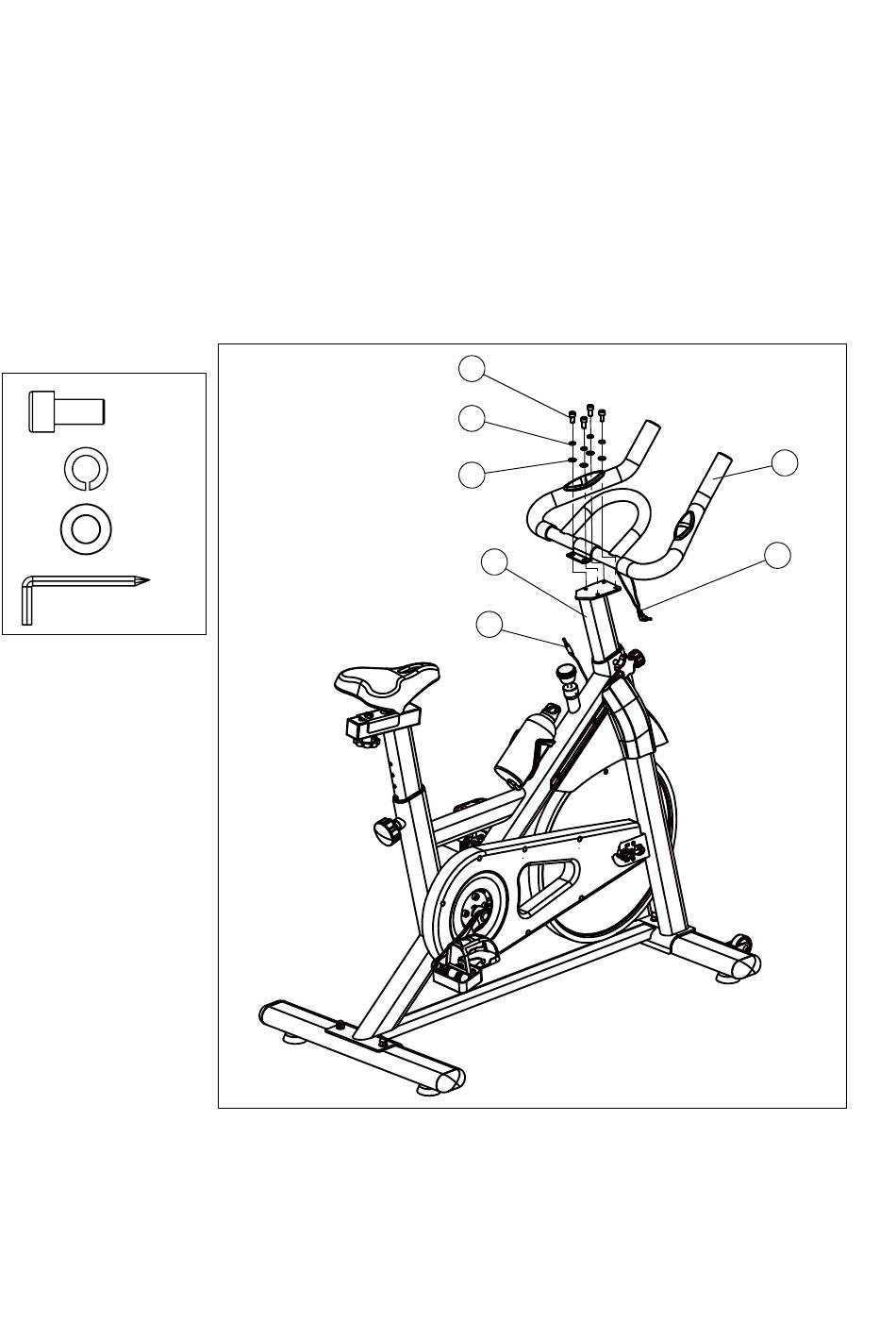

STEP 5
20# 4PCS
21# 4PCS
17# 4PCS
27#
The Handle Frame (6) is fixed on the Handle Post (5) with Flat washers(17), the Spring
washers (21) and the Button head bolts (20), and tightened with an inner hexagonal wrench
(27).
The adjusting nut(29) can reinforce the handlevpost(5).
- 6 -
(7), and is fixed and tightened with the open
20
21
17
5
23
Saddle (8) is
6
22
