HOMCOM A90-213V01 Montageanleitung Seite 6

STEP 3

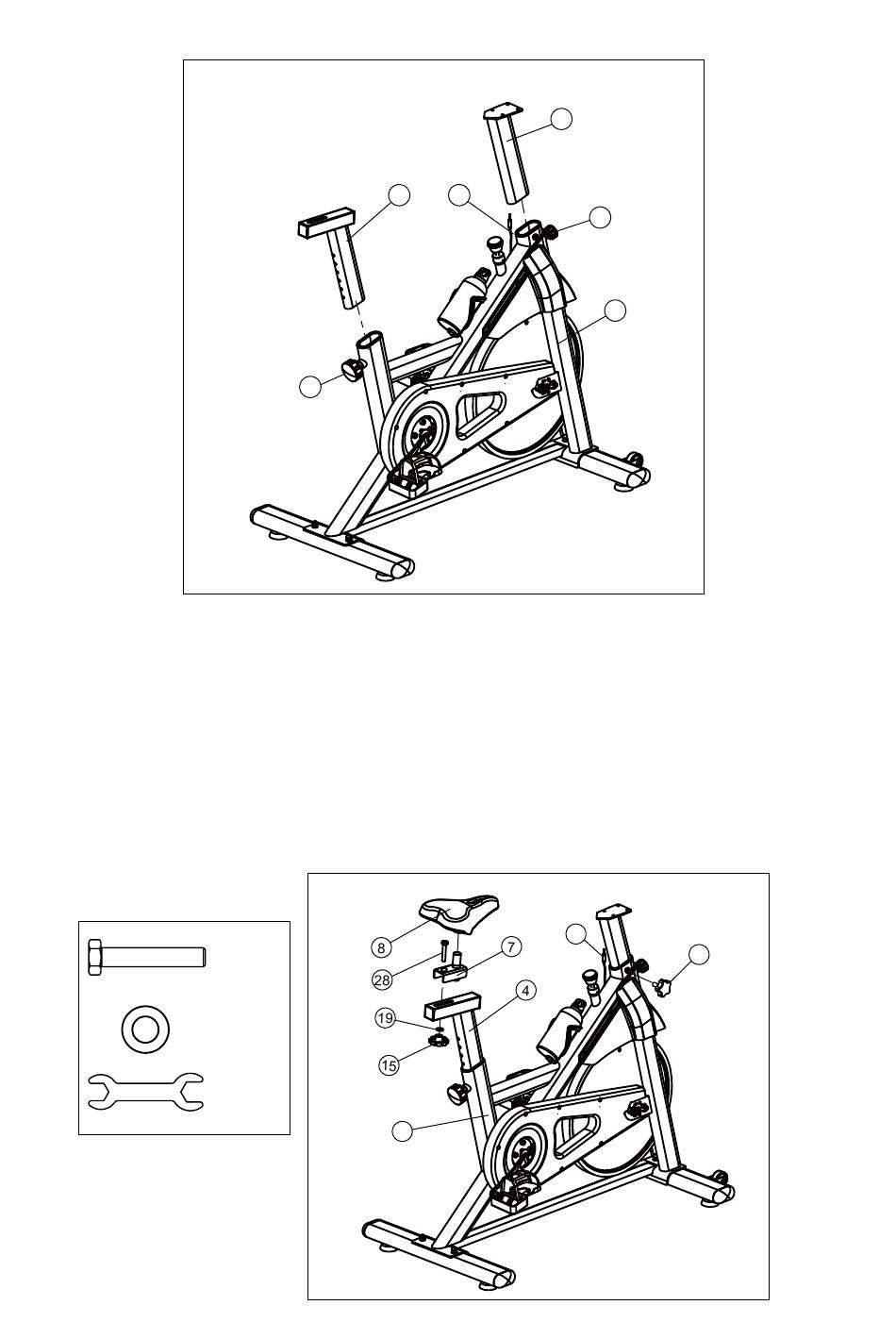

The Saddle Post (4) is inserted into the Main Body (1), and the Adjusting knob (14) is
pulled out so that the Adjusting knob (14) is automatically inserted into the corresponding
hole of the Saddle Post (4).
Similarly, the Handle Post
knob (14) is pulled out so that the
corresponding hole of the Handle Post (5).
Note: Pull out the Adjusting knob (14) can adjust the height of the Saddle Post (4) or
the Handle Post(5). After adjusting, it is necessary to tighten the Adjusting knobs (14).
STEP 4
14
(5) is inserted into the Main Body (1), and the
28# 1PC
19# 1PC
25#
- 5 -
4 23
Adjusting knob (14) is automatically inserted into the
1
5
14
1
23
29
Adjusting
