1. Slide the quartz sleeve back into the white plastic body.
2. Ensure that you locate the 'O' rings accurately on the ends of the quartz. Failure to do so will result in leaks when
the water is turned on.
3. If you are carrying out the annual lamp change, use new 'O' rings.
4. Firmly hand tighten the compression fittings. Fit a new lamp. Relocate the lampholders and place the unit back
into the base.
Caution: Ensure that the mains power cable is properly located in the cable slot in the base (see no. 2
in diagram below).
Caution: Before replacing the cover ensure that the rubber tubular gasket is correctly located in the
gasket recess in the base (see 3 in diagram below).
5. Reconnect and turn on the water supply to check for leaks before connecting the electricity supply.
6. Replace the cover before switching the unit on.
Caution: To achieve a proper seal, ensure that the three cover fixing screws are fully tightened, securing
the cover to the base.
3
2
1
IMPORTANT: The plastic body and any hosetails supplied with this unit are manufactured from polymers
that have been specifically stabilised, to protect them from the effects of UVC light emitted from the
lamp. Despite this UV protection the plastic body and hosetails will be eroded by the UVC and the water
flow.
As a matter of course they should be inspected whenever a lamp change is carried out, to ensure that they are not
showing excessive wear and tear. Low cost replacements are available from your local aquatic supplier.

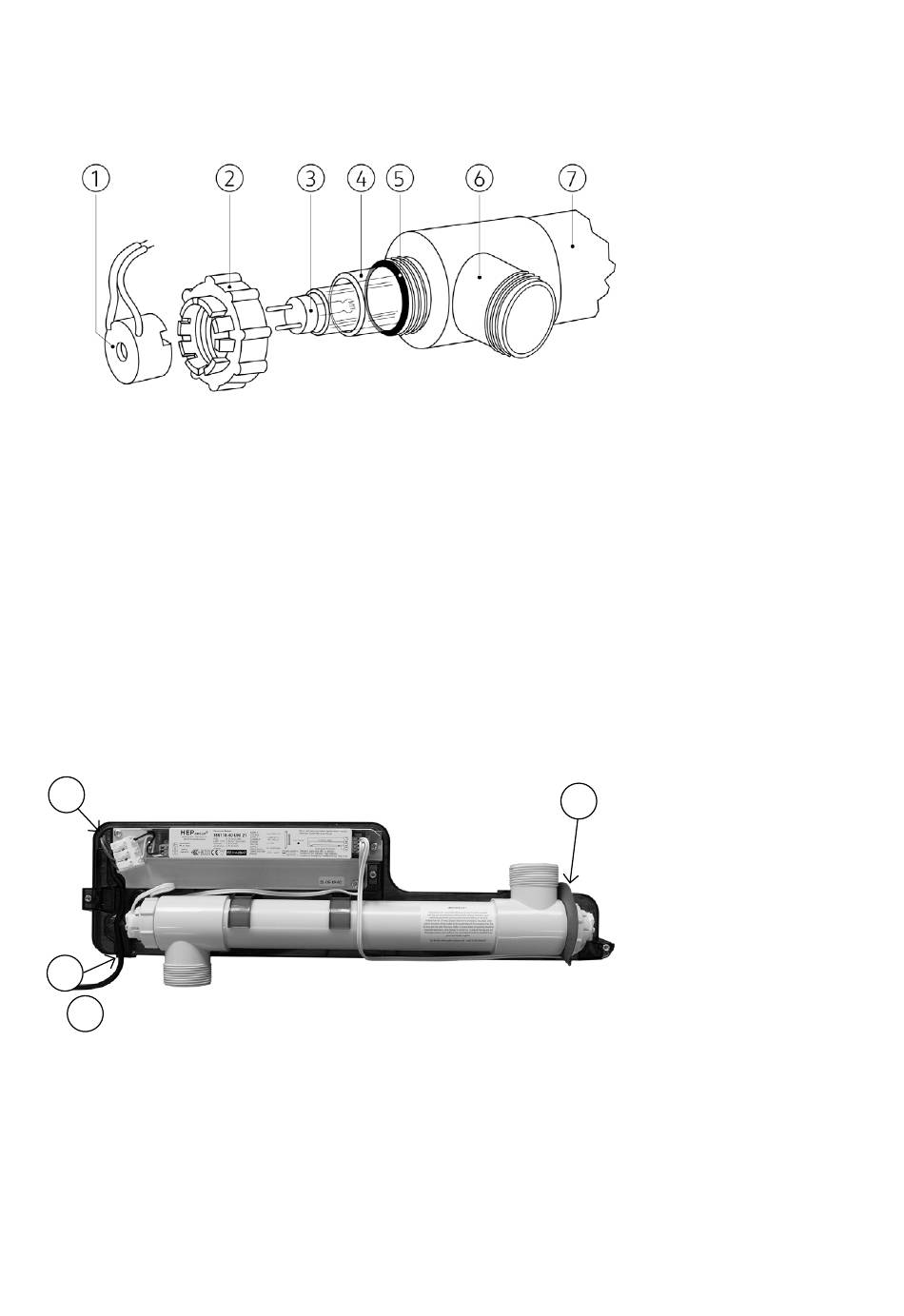

ASSEMBLY PROCESS

9
1. LAMPHOLDER
2. COMPRESSION FITTING
3. UV LAMP
4. QUARTZ SLEEVE
5. 'O' RING
6. HOSETAIL SOCKET
7. WHITE BODY
4
1. MAINS CABLE
2. CABLE SLOT
3. RUBBER TUBULAR GASKET
4. WATER DISPLACEMENT GASKET
