Connection using rigid pipe
This unit may also be rigid plumbed in either of the following ways:

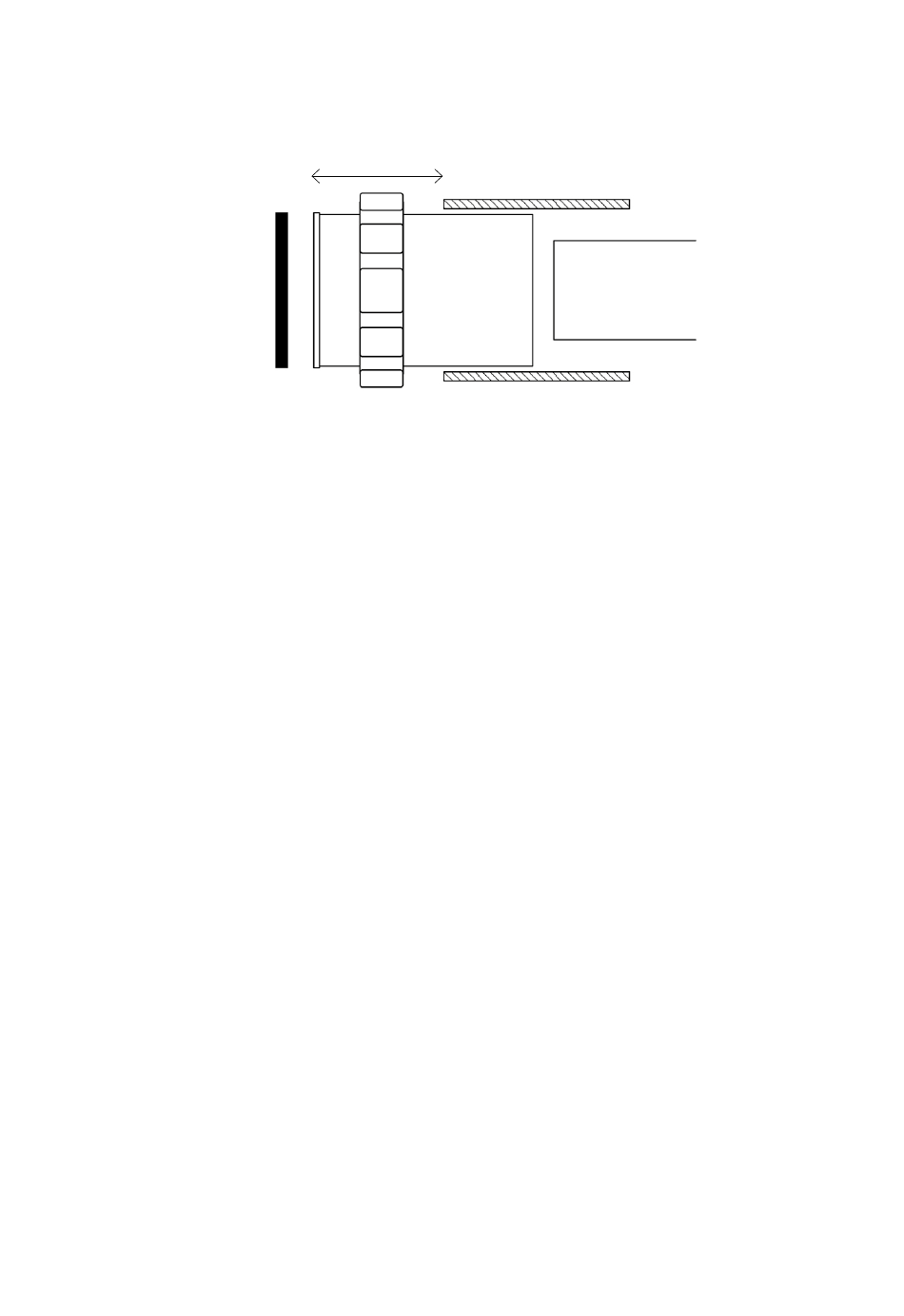

1. Using TMC universal rigid pipe adaptors available from your aquatic supplier (part no. PCADRPACTO4). These
should be fitted as shown in the diagram below.
• If using 40mm solvent weld plastic pipe the adaptor will be glued into the pipe. It is essential to fit the lock
nut before you solvent weld the adaptor into the 40mm pipe. When solvent welding the two parts, sufficient
space (20mm as shown) must be left between the adaptor and the 40mm pipe to allow the lock nut to be undone.
• If using 1" solvent weld pipe the pipe will be glued into the adaptor at the first stepped stage.
• If using 32mm solvent weld pipe the pipe will be glued into the adaptor at the second stepped stage.
Important: Once you have solvent welded the two parts they must be left to fully cure before making
the final connection between the rigid pipe adaptor and the Vecton. When attaching the plumbed rigid
adaptors to the unit ensure that the gaskets are seated correctly between the flat face of the pipe
adaptor and the flat face of the inlet/outlet ports. Do not use a jointing compound or PTFE tape.
For USA rigid plumbing you should use the 1" pipe option above.
2. Using 1 1/2" BSP female threaded plastic sockets that are available from most suppliers of plastic
plumbing fittings.
Do not exceed the maximum flow rates as this will considerably reduce the efficiency of the unit.
Vecton UV 400
For aquariums up to 400 litres / 90 imp. gal. / 110 US gal.
Maximum flow/hr: 1300 litres / 290 imp. gal. /350 US gal.
Vecton UV 600
For aquariums up to 600 litres / 1 30 imp. gal. / 160 US gal.
Maximum flow/hr: 1900 litres / 420 imp. gal. / 505 US gal.
Vecton titanUV 550 For aquariums up to 550 litres / 121 imp. gal. / 145 US gal.
Maximum flow/hr: 1650 litres / 363 imp. gal./ 436 US gal.
Vecton titanUV 850 For aquariums up to 850 litres /187 imp. gal. / 224 US gal.
Maximum flow/hr: 2550 litres / 561 imp. gal. / 674 US gal.
Always use the largest diameter hose possible, this will ensure that you get the maximum performance from your
water pump.
20mm
GASKET
LOCK NUT
40mm SOLVENT WELD
PLASTIC PIPE
1" or 32mm SOLVENT
WELD PLASTIC PIPE

FLOW RATES
