TMC Vecton UV 400 Anweisungen Seite 6

Clear Elbow Accessory
This elbow offers a variety of flexible pipe orientations.

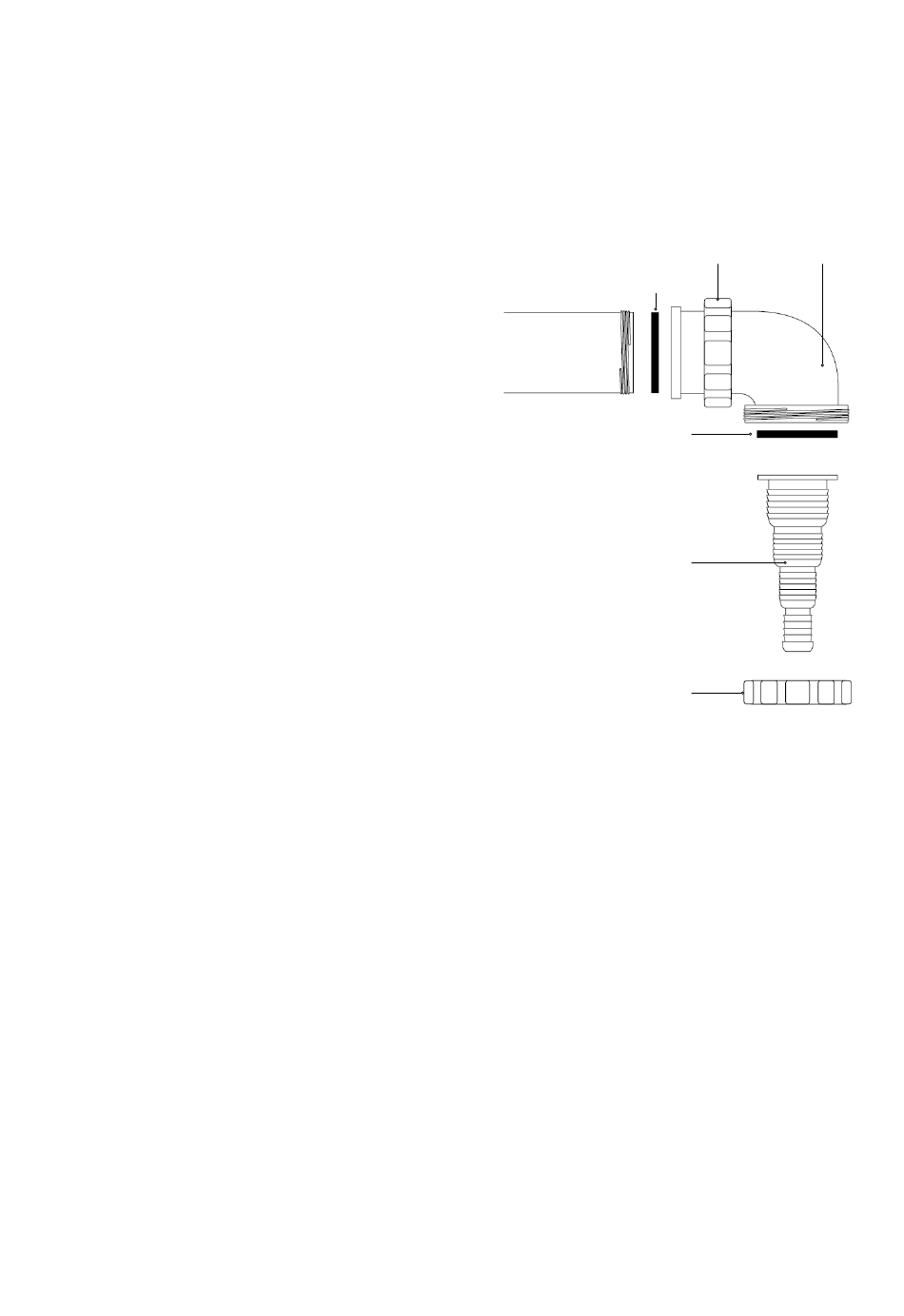

As shown in the following diagram, the end with the fitted threaded locknut may be fitted to either the inlet or the
outlet of the UV unit.
It is important to correctly seat gasket on to the face of the UV inlet/outlet and sandwich it between this face and
the face of the clear elbow.
Clear Elbow fitting procedure:
1. Fit the hosetail to the end of the clear elbow as shown
in the diagram.
2. Fit your flexible hose (not supplied) to the hosetail.
3. Fit the complete clear elbow/hosetail assembly to the
inlet/outlet of the UV unit, ensuring gasket is correctly
seated as described above. The fitted locknut must
now be tightened onto the inlet/outlet, ensuring that
it is fully hand tightened to prevent any water leaks.
PLEASE NOTE: The clear elbow/hosetail assembly will not support excessive weight. If you have long or
awkward runs of plastic hose this must be supported, to prevent overstressing the complete assembly.
If the clear elbow/hosetail assembly is rotated after it has been connected to the UV inlet/outlet, the fitted locknut
must be re-tightened to ensure that there is still a good watertight seal.
If the clear elbow/hosetail assembly is accidently knocked or bumped, or if any maintenance has been carried out, the
clear elbow/hosetail assembly should be checked to ensure it is still positioned and fitted correctly.
PLEASE NOTE: Failure to follow these instructions or carry out the above checks may result in a water leak.
If in doubt always check that the assembly is watertight.
Vecton
INLET / OUTLET
Clear Elbow Accessory
Order code: 5249-L
6
FITTED
LOCKNUT
CLEAR ELBOW
GASKET
GASKET
HOSETAIL
LOCKNUT
