Commissioning

To put into service, follow the enclosed quick start instruc-
tions.

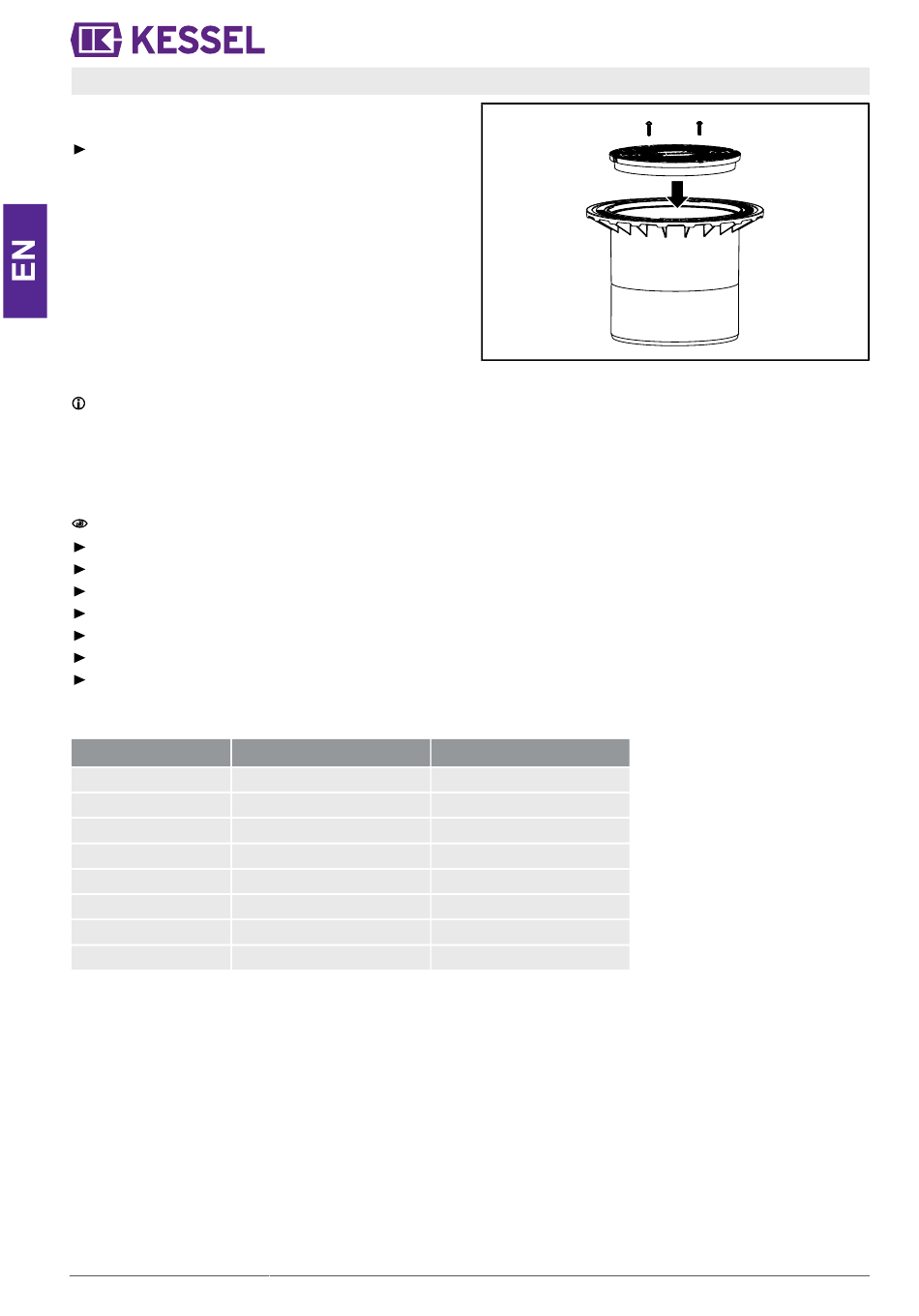

After putting into service/handover, fix the cover plate
with the two enclosed screws to ensure third party safety
(including child-proof lock).
EN: Quick-start guide
In order to ensure full performance of your pumping station it is necessary to configure your control unit.
The pumping station is shipped without drilled inlet openings. The pumping stations alarm level and working vol-
ume depend on the placement of the lowest inlet. Please remember that the parameters below are merely sugges-
tions for initial settings because the performance of the pumping station depends on local conditions. The Parame-
ters need to be configured on-site during first launch by an authorised service partner.
To configure your control unit proceed as follows:
Make sure that all electrical wires and the pressure hose are installed correctly.
Plug-in your control unit to start the initialization sequence.
Follow the initialization sequence as instruced on the display, until you reach the step "Product type".
|3.4.20 Special pumping station|
Enter the type (
Confirm via "OK".
|3.5.12 Pressure Sensor|
Select the sensor type (
Confirm via "OK".
Navigate to the menu item (
the table below.
Switching levels for the Pumping station Aqualift XL:
Point in menue
3.1.3
3.1.4
3.1.8
3.1.11
3.1.12
3.1.13
3.1.14
3.1.15
* DUO-versions only
General information:
Before initial launch, make sure thate the pump is submerged in water. Then lift each pump slightly to prevent internal air
pockets from blocking the pump. As the pump does not feature built in ventilation, this may have to be repeated if the pump
is not in use for long periods of time.
The pump must be completely submerged at all times for S1 use.
30 / 52
|3.1 Parameters|
) type in the password "1000" and then enter the information given in
Description
Max. current
Min. current
Sensor height
ON1
OFF1
Alarm
ON2*
OFF2*
Installation and operating instructions
).
).
Value
6,9A
0,8A
440 mm
715 mm
470 mm
805 mm
755 mm
580 mm
