FIN TYPE:

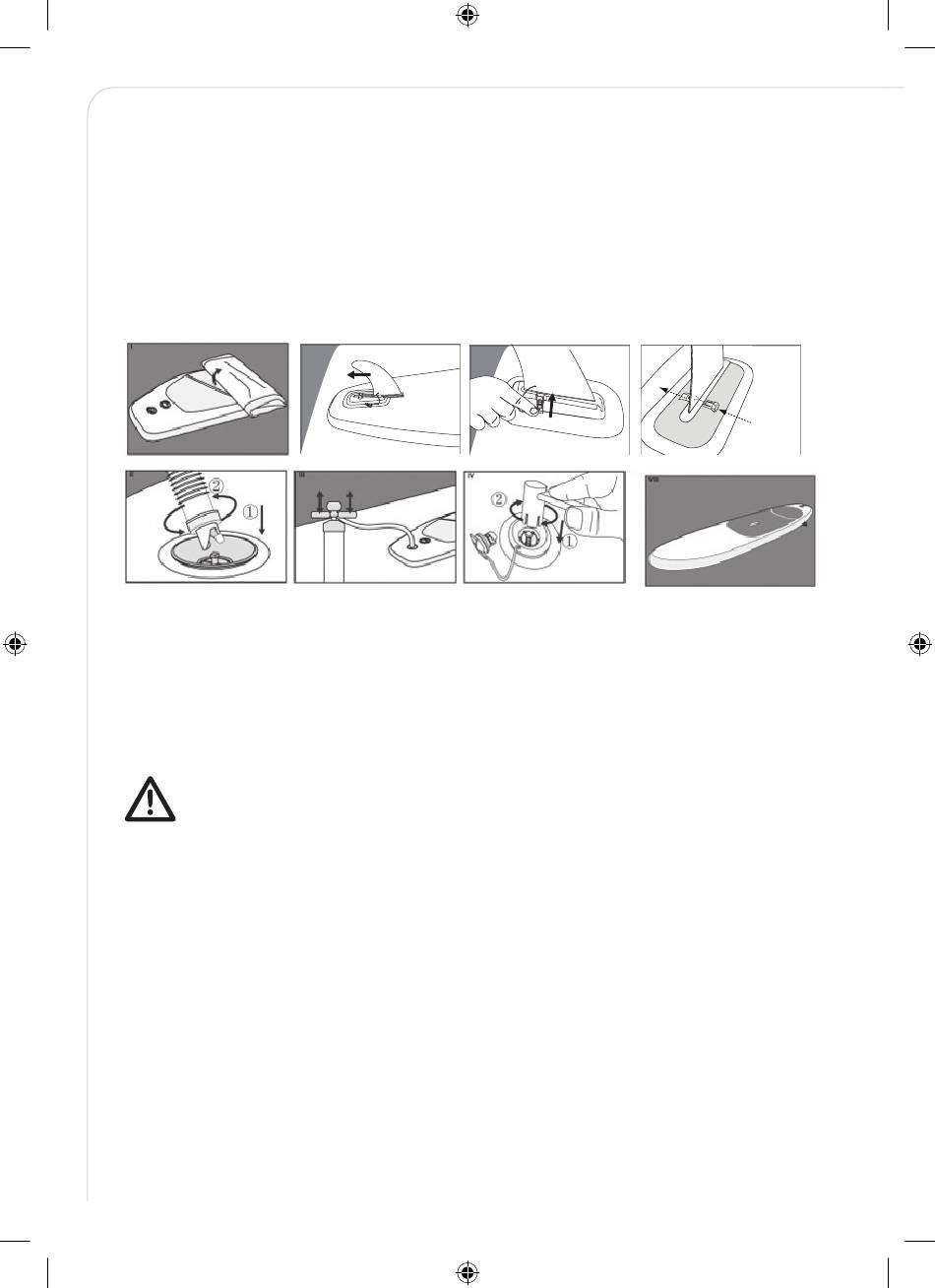

We have three ways to install fins, which can be chosen according to the actual situation.
Your SUP either has a Bravo Fin or Smart Lock Fin System. Please check your fin type and follow
the necessary instructions.
MONTERING
ASSEMBLY CONSTRUCTION
TIP: Before you begin please ensure the fin box slot is clean and free of sand and grit.
1. Legg brettet på flatt underlag, og brett det ut.
1. Place the folded board on a flat surface and unfold.
2. Fest den store finnen som vist i bildet under.
Screw Fin
2. Attach the large fin as shown in the picture below.
3. Kontroller at ventilkjernen er plassert i posisjonen «oppover og lukket».
3. Be sure that valve core is in the "up and closed" position.
4. Koble pumpen til ventilen. Pump til høyt trykk (12–15 psi).
4. Connect the valve and pump. Inflate the pump to high pressure (12–15 psi).
Figure 1.
Slide Fin
Figure 1.
MINIMUM 12 PSI FOR Å KUNNE BRUKE ISUP, OG MAKSIMALT 15 PSI.
US Fin
MINIMUM 12 PSI FOR PROPER ISUP OPERATION AND MAXIMUM OF 15 PSI
FOR THIS PRODUCT.
Lukk ventilhetten etter at du har pumpet opp. Det er bare ventilhetten som kan tette helt.
After inflation, tighten the valve cap. Only the valve cap can ensure ultimate air tightness.
TIPS: Hvis det kommer ulyder fra pumpestempelet, kan du smøre det med litt silikon
på sprayboks.
TIP: If the pump piston starts to squeak, apply some spray silicone to the piston shaft.
MAKSIMALT LUFTTRYKK I DETTE PRODUKTET ER 15 PSI.
MAXIMUM AIR PRESSURE FOR THIS PRODUCT IS 15 PSI.
ADVARSEL! MÅ IKKE PUMPES TIL HØYERE TRYKK
Figure 1.
WARNING! DO NOT INFLATE BEYOND 15 PSI.
ENN 15 PSI. DET KAN SKADE PRODUKTET OG FØRE
Unscrew the plate from the screw (Figure 1) and place into the fin slot via the gap (Figure 2).
THIS CAN DAMAGE THE PRODUCT AND CAUSE INJURY.
TIL PERSONSKADER.
TIP: Use the screw to slide the plate into place along the slot.Insert the fin into the fin box slot
via the central gap, slide the fin to the back and firmly push down the other end (Figure 3).Line
up the screw with the screw plate and tighten until fully secure (Figure 4).
