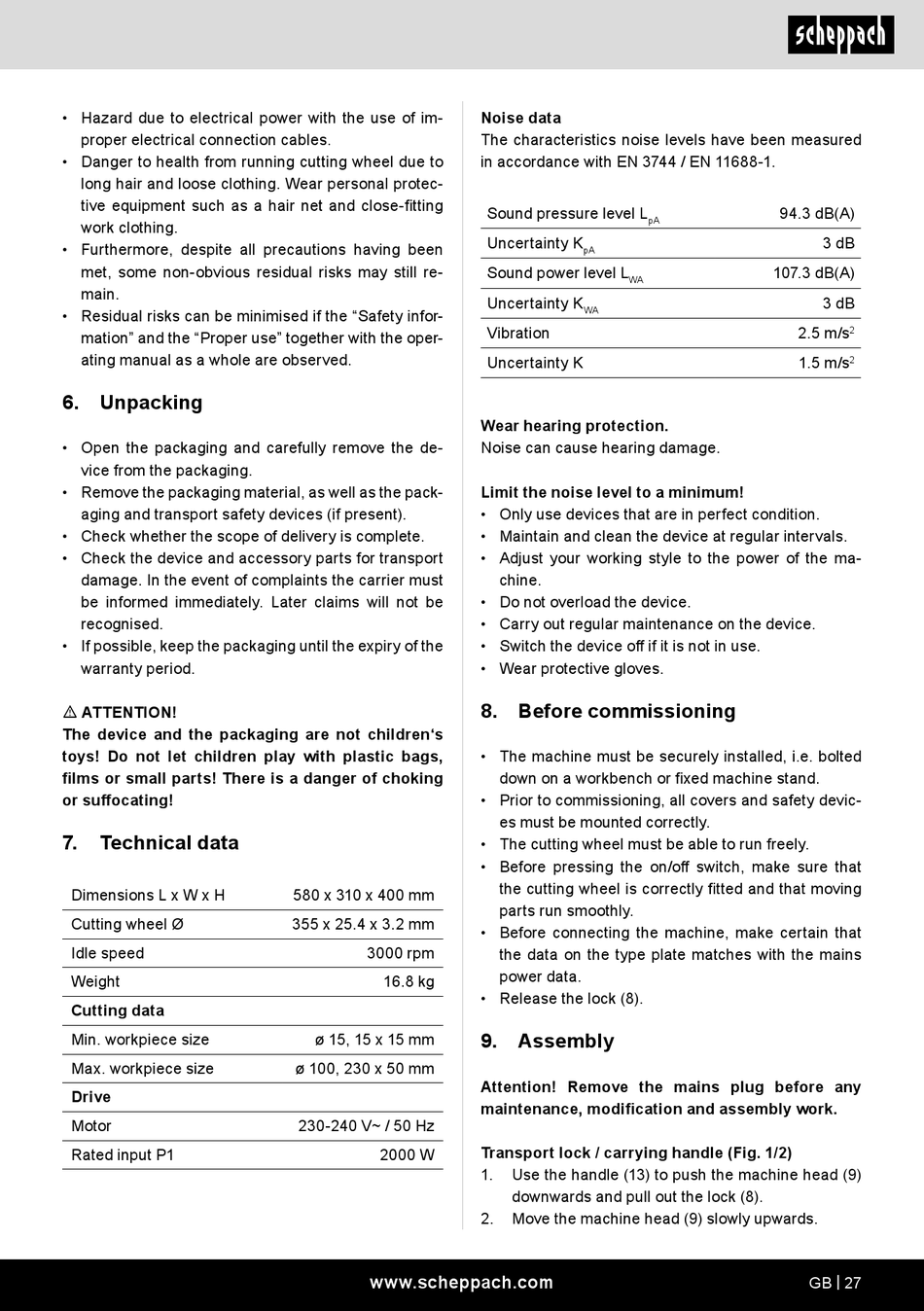

• Hazard due to electrical power with the use of im-
proper electrical connection cables.
• Danger to health from running cutting wheel due to
long hair and loose clothing. Wear personal protec-
tive equipment such as a hair net and close-fitting
work clothing.
• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the "Safety infor-
mation" and the "Proper use" together with the oper-
ating manual as a whole are observed.
6. Unpacking
• Open the packaging and carefully remove the de-
vice from the packaging.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
m ATTENTION!
The device and the packaging are not children's
toys! Do not let children play with plastic bags,
films or small parts! There is a danger of choking
or suffocating!
7.
Technical data
Dimensions L x W x H
Cutting wheel Ø
Idle speed
Weight
Cutting data
Min. workpiece size
Max. workpiece size
Drive
Motor
Rated input P1
580 x 310 x 400 mm
355 x 25.4 x 3.2 mm
3000 rpm
16.8 kg
ø 15, 15 x 15 mm
ø 100, 230 x 50 mm
230-240 V~ / 50 Hz
2000 W
www.scheppach.com
Noise data
The characteristics noise levels have been measured
in accordance with EN 3744 / EN 11688-1.
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L
WA
Uncertainty K
WA
Vibration
Uncertainty K
Wear hearing protection.
Noise can cause hearing damage.
Limit the noise level to a minimum!
• Only use devices that are in perfect condition.
• Maintain and clean the device at regular intervals.
• Adjust your working style to the power of the ma-
chine.
• Do not overload the device.
• Carry out regular maintenance on the device.
• Switch the device off if it is not in use.
• Wear protective gloves.
8. Before commissioning
• The machine must be securely installed, i.e. bolted
down on a workbench or fixed machine stand.
• Prior to commissioning, all covers and safety devic-
es must be mounted correctly.
• The cutting wheel must be able to run freely.
• Before pressing the on/off switch, make sure that
the cutting wheel is correctly fitted and that moving
parts run smoothly.
• Before connecting the machine, make certain that
the data on the type plate matches with the mains
power data.
• Release the lock (8).
9.
Assembly
Attention! Remove the mains plug before any
maintenance, modification and assembly work.
Transport lock / carrying handle (Fig. 1/2)
1.
Use the handle (13) to push the machine head (9)
downwards and pull out the lock (8).
2.
Move the machine head (9) slowly upwards.
94.3 dB(A)
3 dB
107.3 dB(A)
3 dB
2.5 m/s
2
1.5 m/s
2
