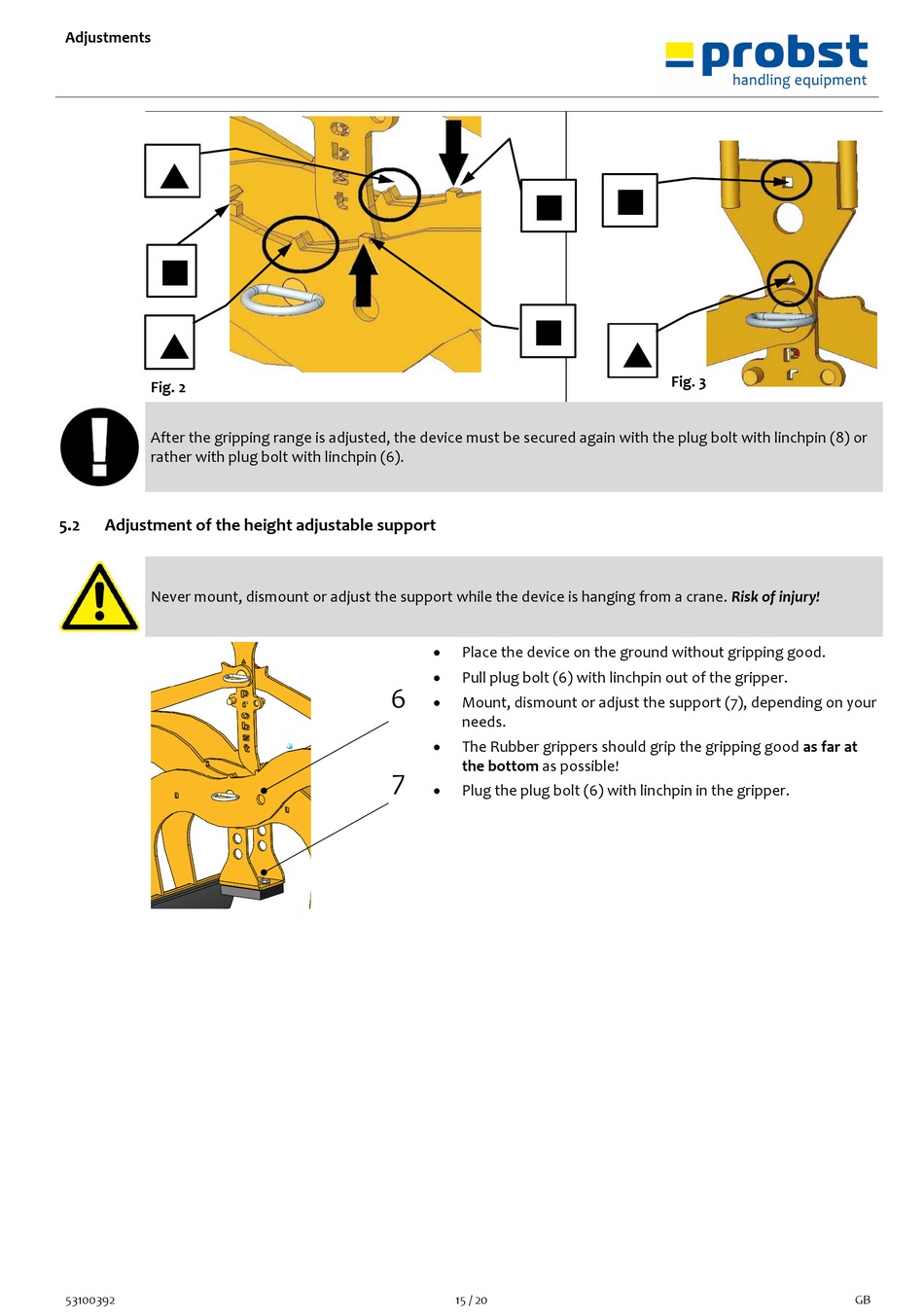

Adjustments



Fig. 2
After the gripping range is adjusted, the device must be secured again with the plug bolt with linchpin (8) or
rather with plug bolt with linchpin (6).
5.2 Adjustment of the height adjustable support
Never mount, dismount or adjust the support while the device is hanging from a crane. Risk of injury!
53100392


•
Place the device on the ground without gripping good.
•
Pull plug bolt (6) with linchpin out of the gripper.
6
•
Mount, dismount or adjust the support (7), depending on your
needs.
•
The Rubber grippers should grip the gripping good as far at
the bottom as possible!
7
•
Plug the plug bolt (6) with linchpin in the gripper.
