4. Hardware Installation

Please observe the following installation instructions. Because there are big differences between
PC's, we can only give you a general guide for connecting the EX-6121. If you have any questions,
please refer to the operating instructions of your computer system.
1. Install the EX-6121 on a mounting rail by using the DIN rail kit or on a wall by using the wall
mounting bracket which both are includes in the extend of delivery.

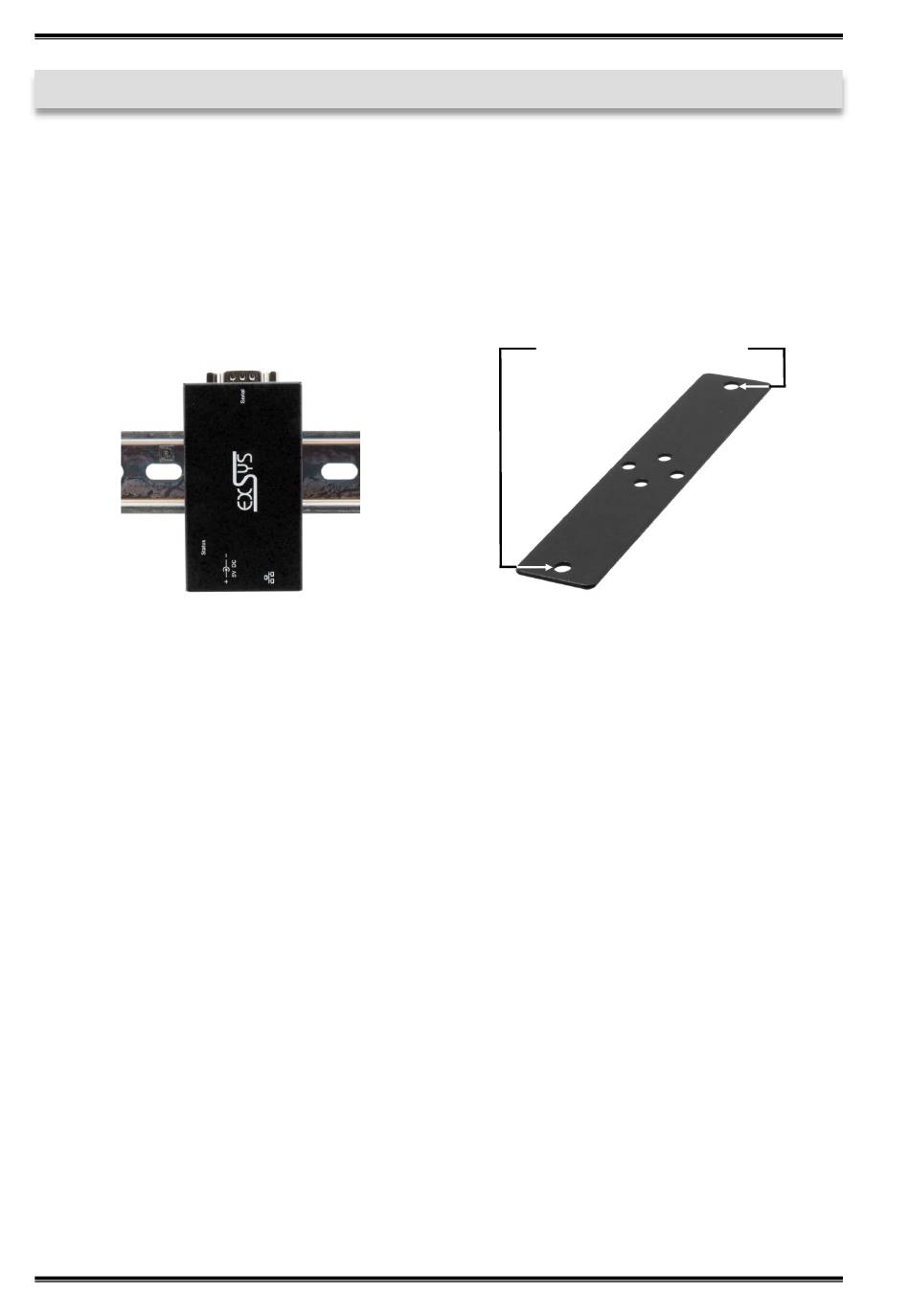

Installation on DIN-Rail
2. Now use an Ethernet cable and connect it to the RJ45 port of the EX-6121 and the other end to a
PC or a switch.
3. Now connect your serial device to the 9 pin D-SUB connector of the EX-6121.
4. Now connect the 5V power supply which is included in the extend of delivery to the 5V socket
provided for this purpose on the EX-6121. Wait about 25-30 seconds until the status LED starts to
blink. As soon as this LED flashes, the device is ready for operation.
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
Holes for Wall Installation
18
