Anleitung
EX-6121
Ethernet zu 1x Seriell RS-232/422/485
Ethernet to 1x Serial RS-232/422/485
Vers. 1.0 / 10.02.21
Manual

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Exsys EX-6121

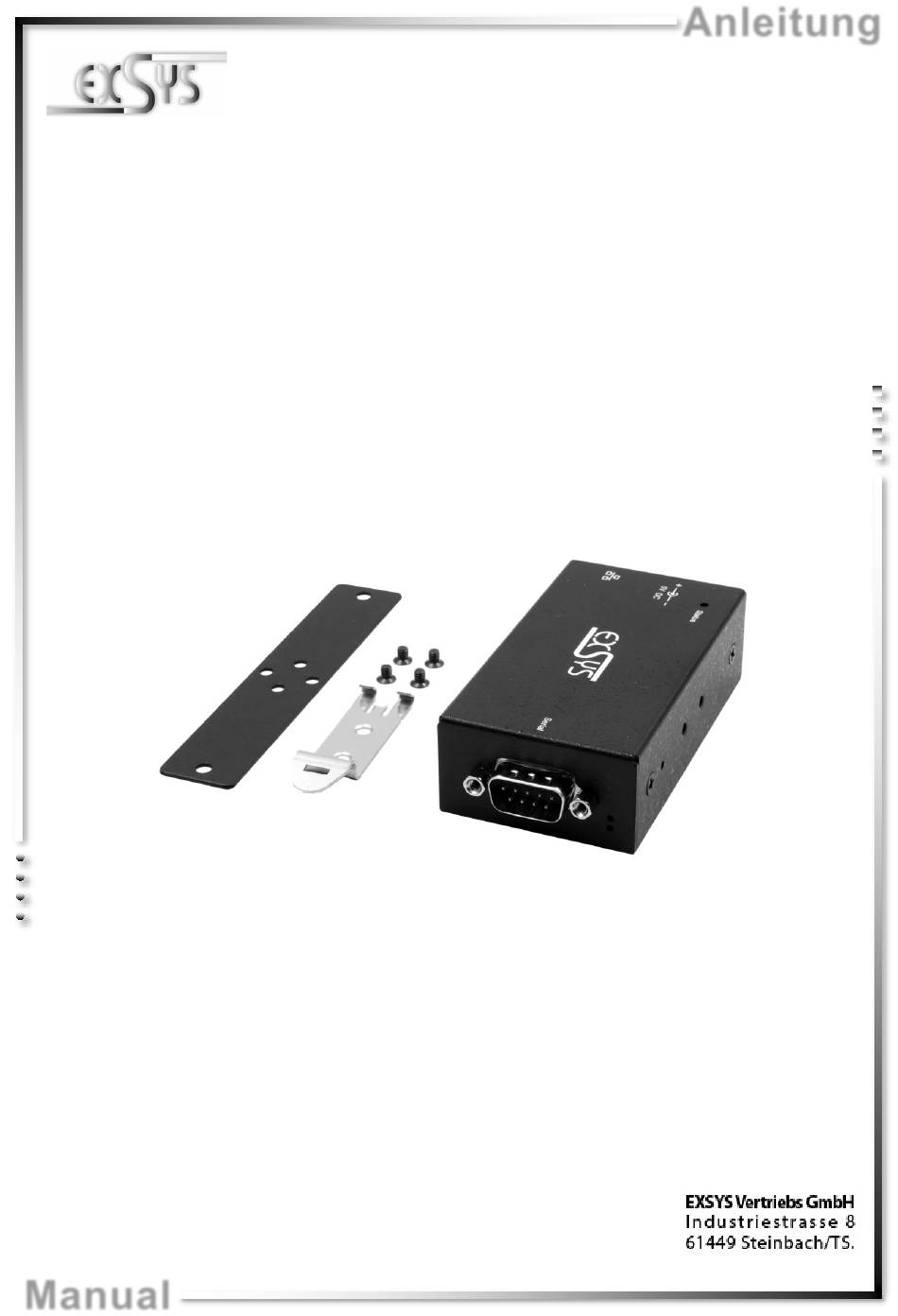

  • Seite 1 Anleitung EX-6121 Ethernet zu 1x Seriell RS-232/422/485 Ethernet to 1x Serial RS-232/422/485 Vers. 1.0 / 10.02.21 Manual...
  • Seite 2: Inhaltsverzeichnis

    Layout ······················································································································ 16 Connections & LED‘s······························································································· 16-17 Hardware Installation ·························································································18 Configuration of the Device Server ·······································································19 VCOM Admin Utility ····················································································· 20-24 DIP-Switch Settings ···························································································25 Cleaning ··········································································································26 Technical Information ·························································································26 Technical Drawing ·····························································································26 © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 3: Beschreibung

    Unterstützt 15KV ESD-Schutz für alle serielle Signale • Unterstützt 5V über seriellen Anschluss • Zertifiziert für 2. Lieferumfang Bevor Sie den EX-6121 in Ihr Netzwerk einbinden, überprüfen Sie bitte zuerst den Inhalt der Lieferung: • EX-6121 • Netzteil (5V/4A) •...
  • Seite 4: Aufbau, Anschlüsse & Led's

    Seriell 9 Pin D-SUB Stecker (RS-232) Signal Signal Signal GROUND (Power) DB 9M (RS-422 & RS-485 4-Draht): Seriell 9 Pin D-SUB Stecker (RS-422 & RS-485 4-Draht) Signal Signal Signal TXD- RXD- TXD+ GROUND RXD+ (Power) © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 5: Aufbau, Anschlüsse & Led's

    Blinken: Die serielle Schnittstelle sendet Daten Grün (oben) Aus: Die serielle Schnittstelle sendet keine Daten RXD LED Blinken: Die serielle Schnittstelle empfängt Daten Grün (unten) Aus: Die serielle Schnittstelle empfängt keine Daten © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 6: Hardware Installation

    4. Schließen Sie jetzt das im Lieferumfang enthaltene 5V Netzteil an die dafür vorhergesehene 5V Buchse der EX-6121 an. Warten Sie etwa 25-30 Sekunden bis die Status LED anfängt zu blin- ken. Sobald diese LED blinkt, ist das Gerät betriebsbereit.
  • Seite 7: Konfiguration Des Geräteserver

    VCOM Mode Serial Interface: RS-232 Falls Sie den EX-6121 auf „Werkseinstellung“ zurücksetzen möchten, dann drücken und halten Sie den Reset Schalter für ca. 3-5 Sekunden gedrückt. Die Status LED erlischt und fängt ein paar Sekunden später wieder an zu blinken.
  • Seite 8: Vcom Admin Utility

    Administrator ausführen“). Klicken Sie auf Remote Device Management > ADD Device > Search Nachdem der EX-6121 gefunden wurde, klicken Sie auf Cancel, um die Suche abzubrechen. Klicken Sie auf OK, um den EX-6121 hinzuzufügen. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 9 Gerät zuzuordnen, klicken Sie auf COM Mapping > Add COM > OK Um die COM-Port-Nummer zu ändern, klicken Sie auf COM Mapping > Modify COM Der COM1 wurde nun hinzugefügt! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 10 Schnittstelle auf andere Werte als die Standardwerte ändern (z.B. Device Description, Pass- word, ...), müssen Sie sich zuerst am Device Server anmelden (das Standardpasswort hierfür "system"). Klicken Sie auf Remote Device Management > Login © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 11 Klicken Sie auf Remote Device Management > (Doppelklick auf das ausgewählte Element in der Liste) > Serial > (Doppelklick auf den Port in der Liste) > Das gewünschte Interface auswählen > OK Doppelklick Doppelklick © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 12 > Open in Browser und geben Sie folgende Anmeldedaten ein: User Name: admin Password: system Klicken Sie auf Port Config > Port 1 > Operation Mode > Apply > Save & Restore © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 13: Dip-Schalter Einstellungen

    Deutsch 7. DIP-Schalter Einstellungen Es gibt einen 4-Pin DIP-Schalter im inneren auf der Platine der EX-6121. Hierzu müssen Sie die zwei Schrauben auf den Seiten der EX-6121 herausschrauben und das obere Gehäuse lösen. In den meisten Fällen müssen Sie an dem DIP-Schalter keine Änderungen vornehmen! Der DIP- Schalter ist bei Werksauslieferung auf „OFF“...
  • Seite 14: Reinigung

    0° bis 60° Celsius Lagertemperatur: -20° bis 75° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Schutzklasse: IP30 Stromversorgung: +5V/4A Abmessung: 82,00 x 46,20 x 25,00 mm Gewicht: 540g 10. Technische Zeichnung © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 15: Description

    Support 15KV ESD-Protection for all serial Signals • Support 5V over serial Connector • Certificate for 2. Extent of Delivery Before you integrate the EX-6121 into your network, you should first check the contents of the delivery: • EX-6121 • Power Supply (5V/4A) •...
  • Seite 16: Layout, Connections & Led's

    Serial 9 Pin D-SUB Connector (RS-232) Signal Signal Signal GROUND (Power) DB 9M (RS-422 & RS-485 4-wire): Serial 9 Pin D-SUB Connector (RS-422 & RS-485 4-wire) Signal Signal Signal TXD- RXD- TXD+ GROUND RXD+ (Power) © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 17: Layout, Connections & Led's

    Off: The Serial Port is not sending out any data RXD LED Blinking: The Serial Port is receiving data Green (below) Off: The Serial Port is not receiving any data © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 18: Hardware Installation

    1. Install the EX-6121 on a mounting rail by using the DIN rail kit or on a wall by using the wall mounting bracket which both are includes in the extend of delivery.
  • Seite 19: Configuration Of The Device Server

    Serial Interface: RS-232 If you want to reset the EX-6121 to "Factory Settings", then press and hold the reset button for approx. 3-5 seconds. The status LED goes out and starts flashing again a few seconds later. Please note that the settings after the reset are not identical to the factory settings! When you have reset the EX-6121 to "Factory Settings", you will have the following settings in the device:...
  • Seite 20: Vcom Admin Utility

    EX-6121 6. VCOM Admin Utility Since the EX-6121 was shipped with DHCP mode enabled, an IP address is required to configure it. By default, the EX-6121 automatically receives an IP address from a DHCP server (e.g. your router). If it is not connected to a DHCP server, use the default IP address: 192.168.2.1. To deter- mine the IP address, you must install the VCOM Admin Utility (vspsetup.exe) that comes with the...
  • Seite 21 2. Assignment of COM-Ports: To create the virtual COM-Port and assign it to the serial device, click COM Mapping > Add COM > OK To change the COM-Port number, click COM Mapping > Modify COM The COM1 has now been added! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 22 (e.g. Device Description, Password, ...), you must first log in to the Device Server (the default password for this is "system"). Click Remote Device Management > Login © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 23 Click Remote Device Management > (double-click on the selected element in the list) > Serial > (double-click on the port in the list) > Select the Interface > OK double click double click © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 24 Server Item") > Open in Browser and enter following credentials: User Name: admin Password: system Click Port Config > Port 1 > Operation Mode > Apply > Save & Restore © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 25: Dip-Switch Settings

    There are one 4-pin DIP-switche inside on the EX-6121 board. To do this, you need to unscrew the two screws on the sides of the EX-6121 and loosen the top case. In most cases you do not have to make any changes to the DIP-switche! The DIP-switche are set to "OFF" when shipped from the factory.
  • Seite 26: Cleaning

    32° to 140° Fahrenheit Storage Temperature: -4° to 167° Fahrenheit Rel. Humidity: 5% to 95% Protection Class: IP30 Power: +5V/4A Size: 82,00 x 46,20 x 25,00 mm Weight: 540g 10. Technical Drawing © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
