Exsys EX-6111PoE Anleitung

Exsys EX-6111PoE Anleitung

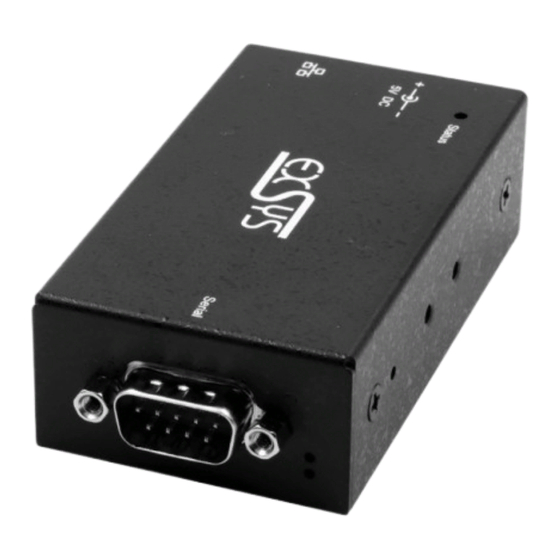

Serieller multiprotokoll rs-232 geräteserver

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

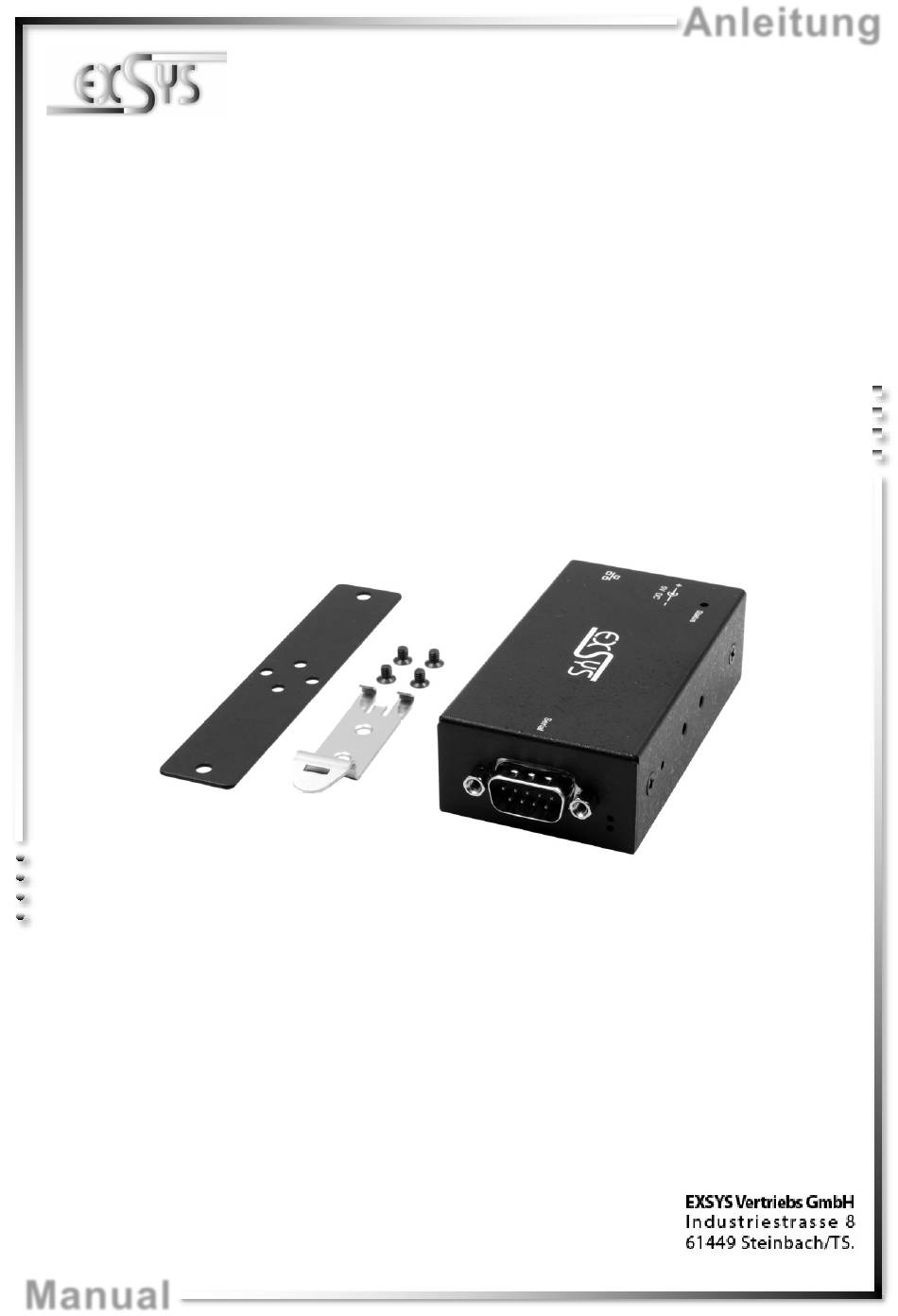

Manual
EX-6111PoE
Ethernet zu 1x Seriell RS-232 mit
Power over Ethernet Funktion
Ethernet to 1x Serial RS-232 with
Power over Ethernet Function
Anleitung
Vers. 1.0 / 20.01.21

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Exsys EX-6111PoE

  • Seite 1 Anleitung EX-6111PoE Ethernet zu 1x Seriell RS-232 mit Power over Ethernet Funktion Ethernet to 1x Serial RS-232 with Power over Ethernet Function Vers. 1.0 / 20.01.21 Manual...
  • Seite 2: Inhaltsverzeichnis

    Layout ······················································································································ 14 Connections & LED‘s······························································································· 14-15 Hardware Installation ····················································································· 16-17 Configuration of the Device Server ········································································16 VCOM Admin Utility ······················································································ 17-21 Cleaning ··········································································································22 Technical Information ·························································································22 Technical Drawing ·····························································································22 © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 3: Beschreibung

    Unterstützt 5V über seriellen Anschluss • IEEE802.3af PoE-PD: Kann über das Ethernet-Kabel mit Strom versorgt werden • Zertifiziert für 2. Lieferumfang Bevor Sie den EX-6111PoE in Ihr Netzwerk einbinden, überprüfen Sie bitte zuerst den Inhalt der Lieferung: • EX-6111PoE • Netzteil (5V/4A) •...
  • Seite 4: Aufbau, Anschlüsse & Led's

    3.2 Anschlüsse & LED‘s DB 9M: Seriell 9 Pin D-SUB Stecker Signal Signal Signal GROUND (Power) RJ45 Anschluss: RJ45 Anschluss Signal Signal Signal BI_DA+ BI_DC+ BI_DD+ BI_DA- BI_DC- BI_DD- BI_DB+ BI_DB- © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 5: Hardware Installation

    4. Hardware Installation Beachten Sie bitte die folgenden Installationshinweise. Da es große Unterschiede zwischen PC‘s gibt, können wir Ihnen nur eine generelle Anleitung zum Anschluss der EX-6111PoE geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Installieren Sie die EX-6111PoE mit dem mitgelieferten DIN-Rail Kit auf einer Tragschiene oder mit der Wandmontagehalterung an eine Wand.
  • Seite 6: Konfiguration Des Geräteserver

    EX-6111PoE und das andere Ende mit einem PC oder einem Switch. 3. Verbinden Sie nun Ihr serielles Endgerät mit dem 9 Pin D-SUB Stecker der EX-6111PoE. 4. Schließen Sie jetzt das im Lieferumfang enthaltene 5V Netzteil an die dafür vorhergesehene 5V Buchse der EX-6111PoE an.
  • Seite 7: Vcom Admin Utility

    Administrator ausführen“). Klicken Sie auf Remote Device Management > ADD Device > Search Nachdem der EX-6111PoE gefunden wurde, klicken Sie auf Cancel, um die Suche abzubrechen. Klicken Sie auf OK, um den EX-6111PoE hinzuzufügen. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 8 Gerät zuzuordnen, klicken Sie auf COM Mapping > Add COM > OK Um die COM-Port-Nummer zu ändern, klicken Sie auf COM Mapping > Modify COM Der COM1 wurde nun hinzugefügt! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 9 Schnittstelle auf andere Werte als die Standardwerte ändern (z.B. Device Description, Pass- word, ...), müssen Sie sich zuerst am Device Server anmelden (das Standardpasswort hierfür "system"). Klicken Sie auf Remote Device Management > Login © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 10 Device Server in der Liste. Doppelklick Klicken Sie auf Remote Device Management > (Doppelklick auf das ausgewählte Element in der Liste) > Basic > Device Description > OK Doppelklick © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 11 > Open in Browser und geben Sie folgende Anmeldedaten ein: User Name: admin Password: system Klicken Sie auf Port Config > Port 1 > Operation Mode > Apply > Save & Restore © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 12: Reinigung

    0° bis 60° Celsius Lagertemperatur: -20° bis 75° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Schutzklasse: IP30 Stromversorgung: +5V/4A Abmessung: 82,00 x 46,20 x 25,00 mm Gewicht: 540g 9. Technische Zeichnung © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 13: Description

    Support 5V over serial Connector • IEEE802.3af PoE-PD: Can be powered by Ethernet Cable • Certificate for 2. Extent of Delivery Before you integrate the EX-6111PoE into your network, you should first check the contents of the delivery: • EX-6111PoE • Power Supply (5V/4A) •...
  • Seite 14: Layout, Connections & Led's

    3.2 Connections & LED‘s DB 9M: Serial 9 Pin D-SUB Connector Signal Signal Signal GROUND (Power) RJ45 Port: RJ45 Port Signal Signal Signal BI_DA+ BI_DC+ BI_DD+ BI_DA- BI_DC- BI_DD- BI_DB+ BI_DB- © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 15: Hardware Installation

    1. Install the EX-6111PoE on a mounting rail by using the DIN rail kit or on a wall by using the wall mounting bracket which both are includes in the extend of delivery.
  • Seite 16: Configuration Of The Device Server

    EX-6111PoE 4. Hardware Installation 2. Now use an Ethernet cable and connect it to the RJ45 port of the EX-6111PoE and the other end to a PC or a switch. 3. Now connect your serial device to the 9 pin D-SUB connector of the EX-6111PoE.
  • Seite 17: Vcom Admin Utility

    English 6. VCOM Admin Utility Since the EX-6111PoE was shipped with DHCP mode enabled, an IP address is required to con- figure it. By default, the EX-6111PoE automatically receives an IP address from a DHCP server (e.g. your router). If it is not connected to a DHCP server, use the default IP address: 192.168.2.1.
  • Seite 18 2. Assignment of COM-Ports: To create the virtual COM-Port and assign it to the serial device, click COM Mapping > Add COM > OK To change the COM-Port number, click COM Mapping > Modify COM The COM1 has now been added! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 19 (e.g. Device Description, Password, ...), you must first log in to the Device Server (the default password for this is "system"). Click Remote Device Management > Login © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 20 After you are logged in, click Remote Device Management and then double-click the selected device server in the list. double click Click Remote Device Management > (double-click on the selected element in the list) > Basic > Device Description > OK double click © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 21 Server Item") > Open in Browser and enter following credentials: User Name: admin Password: system Click Port Config > Port 1 > Operation Mode > Apply > Save & Restore © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 22: Cleaning

    32° to 140° Fahrenheit Storage Temperature: -4° to 167° Fahrenheit Rel. Humidity: 5% to 95% Protection Class: IP30 Power: +5V/4A Size: 82,00 x 46,20 x 25,00 mm Weight: 540g 9. Technical Drawing © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
