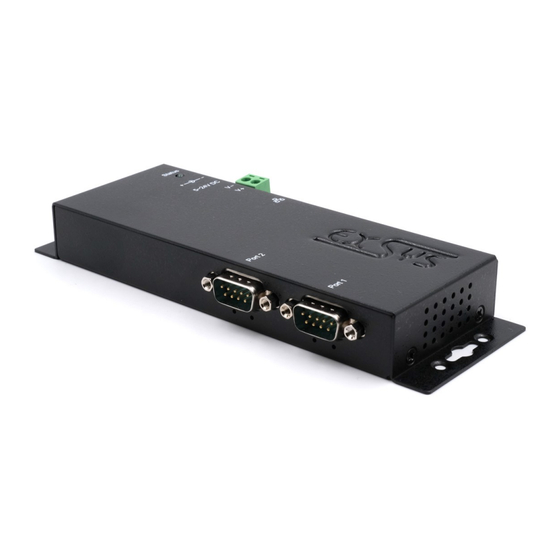

Exsys EX-6122PoE Anleitung

Exsys EX-6122PoE Anleitung

Ethernet zu 2x seriell rs-232/422/485 mit power over ethernet funktion

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

Anleitung
EX-6122PoE
Ethernet zu 2x Seriell RS-232/422/485
mit Power over Ethernet Funktion
Ethernet to 2x Serial RS-232/422/485
with Power over Ethernet Function
Vers. 1.0 / 10.02.21
Manual

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Exsys EX-6122PoE

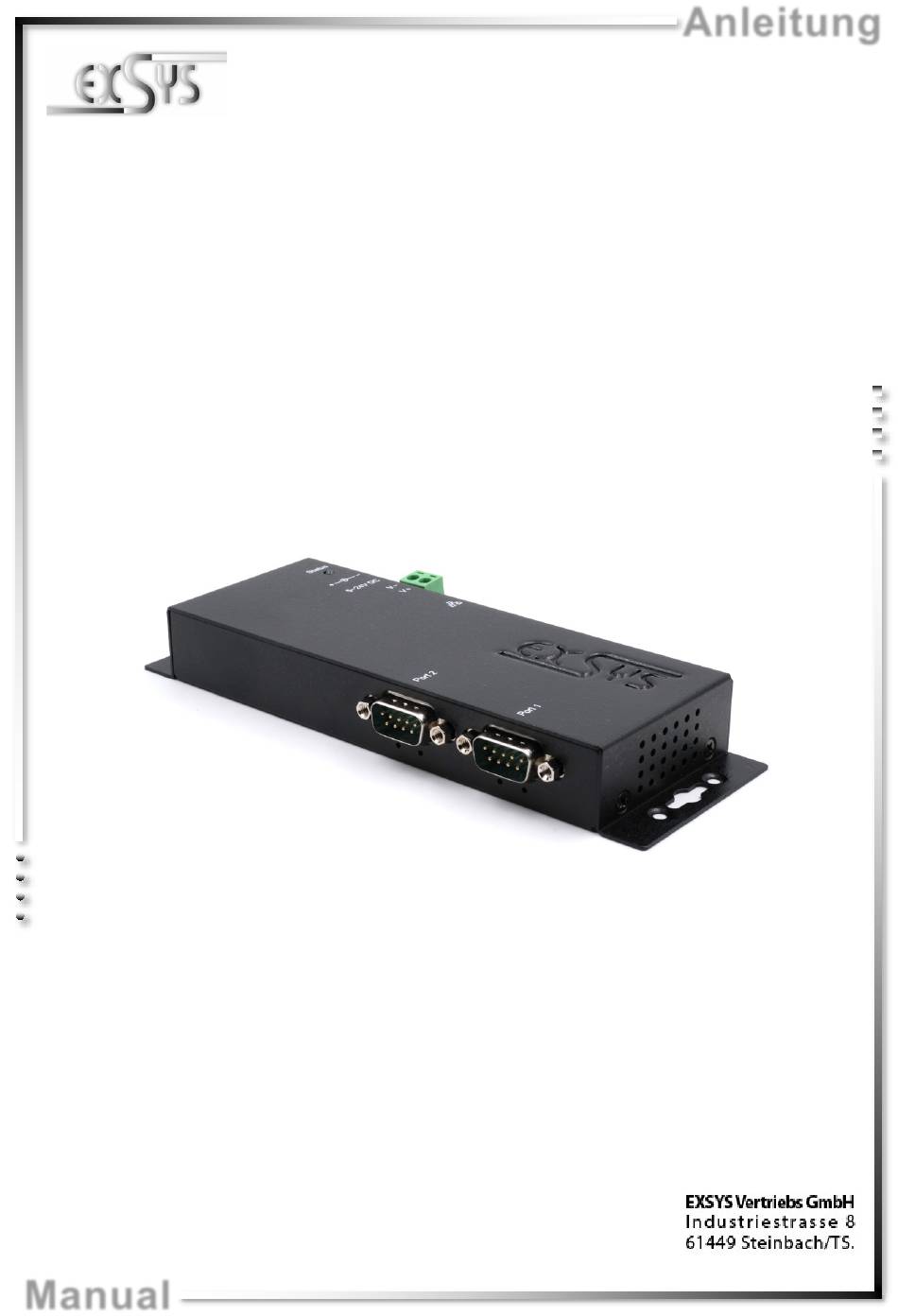

  • Seite 1 Anleitung EX-6122PoE Ethernet zu 2x Seriell RS-232/422/485 mit Power over Ethernet Funktion Ethernet to 2x Serial RS-232/422/485 with Power over Ethernet Function Vers. 1.0 / 10.02.21 Manual...
  • Seite 2: Inhaltsverzeichnis

    Layout ······················································································································ 16 Connections & LED‘s······························································································· 16-17 Hardware Installation ·························································································18 Configuration of the Device Server ·······································································19 VCOM Admin Utility ····················································································· 20-24 DIP-Switch Settings ···························································································25 Cleaning ··········································································································26 Technical Information ·························································································26 Technical Drawing ·····························································································26 © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 3: Beschreibung

    Unterstützt 5V über seriellen Anschluss • IEEE802.3af PoE-PD: Kann über das Ethernet-Kabel mit Strom versorgt werden • Zertifiziert für 2. Lieferumfang Bevor Sie den EX-6122PoE in Ihr Netzwerk einbinden, überprüfen Sie bitte zuerst den Inhalt der Lieferung: • EX-6122PoE • Netzteil (12V/3A) •...
  • Seite 4: Aufbau, Anschlüsse & Led's

    Seriell 9 Pin D-SUB Stecker (RS-232) Signal Signal Signal GROUND (Power) DB 9M (RS-422 & RS-485 4-Draht): Seriell 9 Pin D-SUB Stecker (RS-422 & RS-485 4-Draht) Signal Signal Signal TXD- RXD- TXD+ GROUND RXD+ (Power) © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 5: Aufbau, Anschlüsse & Led's

    Blinken: Die serielle Schnittstelle sendet Daten Grün (rechts) Aus: Die serielle Schnittstelle sendet keine Daten RXD LED Blinken: Die serielle Schnittstelle empfängt Daten Grün (links) Aus: Die serielle Schnittstelle empfängt keine Daten © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 6: Hardware Installation

    EX-6122PoE und das andere Ende mit einem PC oder einem Switch. 3. Verbinden Sie nun Ihre seriellen Endgeräte mit den 9 Pin D-SUB Stecker der EX-6122PoE. 4. Schließen Sie jetzt das im Lieferumfang enthaltene 12V Netzteil an die dafür vorhergesehene 12V Buchse der EX-6122PoE an.
  • Seite 7: Konfiguration Des Geräteserver

    VCOM Mode Serial Interface: RS-232 Falls Sie den EX-6122PoE auf „Werkseinstellung“ zurücksetzen möchten, dann drücken und hal- ten Sie den Reset Schalter für ca. 3-5 Sekunden gedrückt. Die Status LED erlischt und fängt ein paar Sekunden später wieder an zu blinken.
  • Seite 8: Vcom Admin Utility

    Administrator ausführen“). Klicken Sie auf Remote Device Management > ADD Device > Search Nachdem der EX-6122PoE gefunden wurde, klicken Sie auf Cancel, um die Suche abzubrechen. Klicken Sie auf OK, um den EX-6122PoE hinzuzufügen. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 9 Gerät zuzuordnen, klicken Sie auf COM Mapping > Add COM > OK Um die COM-Port-Nummer zu ändern, klicken Sie auf COM Mapping > Modify COM Der COM3 & COM4 wurde nun hinzugefügt! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 10 Schnittstelle auf andere Werte als die Standardwerte ändern (z.B. Device Description, Pass- word, ...), müssen Sie sich zuerst am Device Server anmelden (das Standardpasswort hierfür "system"). Klicken Sie auf Remote Device Management > Login © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 11 Klicken Sie auf Remote Device Management > (Doppelklick auf das ausgewählte Element in der Liste) > Serial > (Doppelklick auf den Port in der Liste) > Das gewünschte Interface auswählen > OK Doppelklick Doppelklick © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 12 Device Management > (wählen Sie "Device Server Item" in der Liste) > Open in Browser und geben Sie folgende Anmeldedaten ein: User Name: admin Password: system Klicken Sie auf Port Config > Port 1 > Operation Mode > Apply > Save & Restore © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 13: Dip-Schalter Einstellungen

    Deutsch 7. DIP-Schalter Einstellungen Es gibt zwei 4-Pin DIP-Schalter im inneren auf der Platine der EX-6122PoE. Hierzu müssen Sie die vier Schrauben auf den Seiten der EX-6122PoE herausschrauben und das obere Gehäuse lösen. Für jeden Port gibt es einen separaten DIP-Schalter. In den meisten Fällen müssen Sie an den DIP-Schalter keine Änderungen vornehmen! Die DIP-Schalter sind bei Werksauslieferung alle...
  • Seite 14: Reinigung

    0° bis 60° Celsius Lagertemperatur: -20° bis 75° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Schutzklasse: IP30 Stromversorgung: +12/3A oder +5-24V Abmessung: 179,00 x 59,50 x 23,00 mm Gewicht: 676g 10. Technische Zeichnung © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 15: Description

    Support 5V over serial Connector • IEEE802.3af PoE-PD: Can be powered by Ethernet Cable • Certificate for 2. Extent of Delivery Before you integrate the EX-6122PoE into your network, you should first check the contents of the delivery: • EX-6122PoE • Power Supply (12V/3A) •...
  • Seite 16: Layout, Connections & Led's

    Serial 9 Pin D-SUB Connector (RS-232) Signal Signal Signal GROUND (Power) DB 9M (RS-422 & RS-485 4-wire): Serial 9 Pin D-SUB Connector (RS-422 & RS-485 4-wire) Signal Signal Signal TXD- RXD- TXD+ GROUND RXD+ (Power) © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 17: Layout, Connections & Led's

    Off: The Serial Port is not sending out any data RXD LED Blinking: The Serial Port is receiving data Green (left) Off: The Serial Port is not receiving any data © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 18: Hardware Installation

    1. Install the EX-6122PoE on a mounting rail by using the optional DIN rail kit or on a wall. Holes for Wall Installation 2. Now use an Ethernet cable and connect it to the RJ45 port of the EX-6122PoE and the other end to a PC or a switch.
  • Seite 19: Configuration Of The Device Server

    Serial Interface: RS-232 If you want to reset the EX-6122PoE to "Factory Settings", then press and hold the reset button for approx. 3-5 seconds. The status LED goes out and starts flashing again a few seconds later. Please note that the settings after the reset are not identical to the factory settings! When you have reset the EX-6122PoE to "Factory Settings", you will have the following settings in the device:...
  • Seite 20: Vcom Admin Utility

    Windows desktop and start this with „Run as Administrator“). Click Remote Device Management > ADD Device > Search After the EX-6122PoE was found, click Cancel to abort the search. Click OK, to add the EX- 6122PoE. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 21 2. Assignment of COM-Ports: To create the virtual COM-Port and assign it to the serial device, click COM Mapping > Add COM > OK To change the COM-Port number, click COM Mapping > Modify COM The COM3 & COM4 has now been added! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 22 (e.g. Device Description, Password, ...), you must first log in to the Device Server (the default password for this is "system"). Click Remote Device Management > Login © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 23 Click Remote Device Management > (double-click on the selected element in the list) > Serial > (double-click on the port in the list) > Select the Interface > OK double click double click © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 24 Server Item") > Open in Browser and enter following credentials: User Name: admin Password: system Click Port Config > Port 1 > Operation Mode > Apply > Save & Restore © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 25: Dip-Switch Settings

    There are two 4-pin DIP-switches inside on the EX-6122PoE board. To do this, you need to un- screw the four screws on the sides of the EX-6122PoE and loosen the top case. There is a sepa- rate DIP-switch for each port. In most cases you do not have to make any changes to the DIP- switches! The DIP-switches are all set to "OFF"...
  • Seite 26: Cleaning

    Storage Temperature: -4° to 167° Fahrenheit Rel. Humidity: 5% to 95% Protection Class: IP30 Power: +12/3A or +5-24V Size: 179,00 x 59,50 x 23,00 mm Weight: 676g 10. Technical Drawing © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
