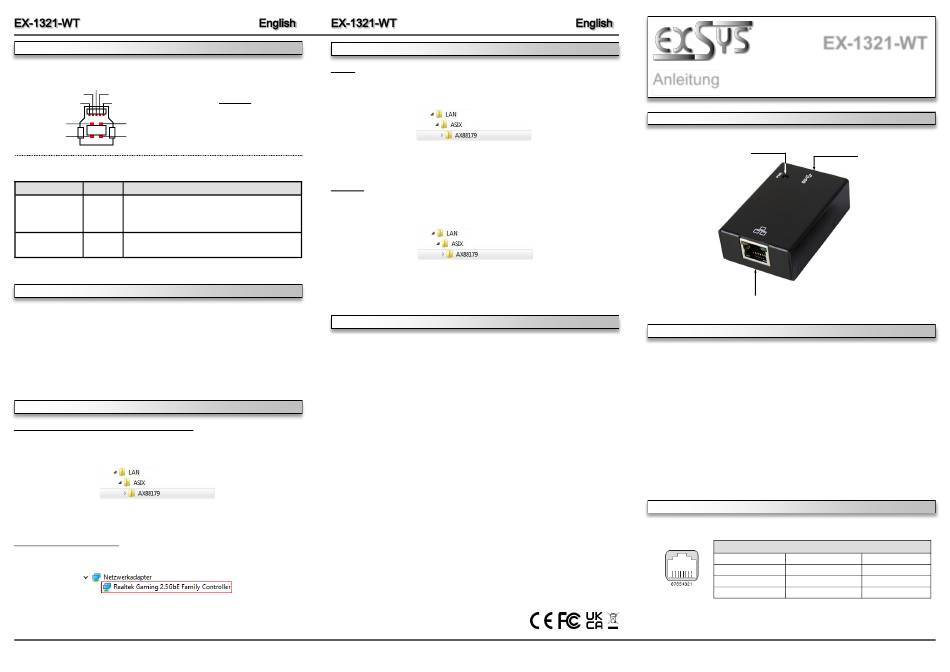

Exsys EX-1321-WT Anleitung

CONNECTOR & STATUS LEDs
USB 3.2 Gen 1 B-Port:
GND_DRAI
StdB_SSTX StdB_SST
StdB_SST StdB_SST
D- VBus
D+
GN
Status LED's:
LED Name Color LED Function
Continuously on: The Connection on the Ethernet port
is built and Active
Link/Act Green
Flash: Transmit Data
Off: Network connection is disconnected
Off: 10/100Mbps Mode
Speed Yellow
Continuously on: Gigabit (1000Mbps) Mode
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-1321-WT. Please refer your computer's reference manual whenever in doubt.
1. Connect the supplied USB 3.2 Gen 1 cable to the USB B-Port of the EX-1321-WT.
2. Now connect the other end of the supplied USB 3.2 Gen 1 cable to a USB A-Port on your
PC.
3. Now you can connect a network cable at the EX-1321-WT.
DRIVER INSTALLATION
Windows XP/ Vista/ 7/ 8.x/ 10/ Server 20xx
Once the hardware installation is complete, the operating system automatically recognizes the
EX-1321-WT and installs it. If the drivers are not installed automatically, you can download the
drivers from our website (www.exsys.de or www.exsys.ch) under "Downloads" for your product.
Now open the folder of your operating system and start the „setup" application located there.
Now follow the installation instructions and complete the installation.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ethernet Adapter" the following new
entry:
If you see this or a similar information the device is installed correctly.
5
DRIVER INSTALLATION
Linux
Once the hardware installation is complete, the operating system automatically recognizes the
EX-1321-WT and installs it. If the drivers are not installed automatically, you can download the
drivers from our website (www.exsys.de or www.exsys.ch) under "Downloads" for your product.
Attention!
Never plug in with
force or in wrong
direction
Now open the folder of your operating system and remove the drivers for installing the EX-1321-
WT.
Mac OS
Once the hardware installation is complete, the operating system automatically recognizes the
EX-1321-WT and installs it. If the drivers are not installed automatically, you can download the
drivers from our website (www.exsys.de or www.exsys.ch) under "Downloads" for your product.
Now open the folder of your operating system and remove the drivers for installing the EX-1321-
WT.
CLEANING
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
Germany:
EXSYS Vertriebs GmbH
Industriestrasse 8
61449 Steinbach
www.exsys.de
Switzerland: Italy:
EXSYS Vertriebs GmbH EXSYS Italia Srl
Dübendorfstrasse 17 Via Belvedere, 45/B
8602 Wangen I-22100 Como
www.exsys.ch www.exsys.it
6
EX-1321-WT
Anleitung Anleitung
Vers. 1.0, 24.04.25
AUFBAU
Betriebs LED
RJ45 Anschluss
BESCHREIBUNG & TECHNISCHE DATEN
Mit dem EX-1321-WT können Sie Notebook, Desktop Rechner oder Server im 19-Zoll Rack
über den USB 3.2 Gen 1 oder 2.0 Ausgang in ein 10/100/1000Mbps Netzwerk einbinden. Der
EX-1321-WT kann gleichzeitig zu einer bestehender Netzwerkkarte installiert werden. Die
Installation ist sehr einfach ohne, dass die Systeme geöffnet werden müssen. Die Bauform des
EX-1321-WT ist sehr kompakt und robust und bietet somit einen optimalen Einsatz in rauen
Umgebungen. Durch den erweiterten Temperaturbereich von -40° bis + 85° Celsius, ist der EX-
1321-WT auch optimal geeignet für einen Einsatz im Freien oder in Umgebungen welche unter
starkem Temperatureinfluss steht. Mit dem EX-1321-WT wir ein DIN-Rail Kit mitgeliefert, für die
Installation in ein 19-Zoll Rack.
Kompatibilität: USB 1.1, 2.0, 3.2 Gen 1 / TCP/IP 10/100/1000
Betriebssysteme: Windows XP/ Vista/ 7/ 8.x/ 10/ 11/ Server 20xx/ Linux/ Mac OS
Anschlüsse: 1x USB 3.2 Gen 1 B-Buchse, 1x RJ45 Gigabit Ethernet Anschluss
Lieferumfang: EX-1321-WT, USB 3.2 Gen 1 Kabel (verschraubbar),
Wandmontagehalterung, DIN-Rail Kit, Anleitung
ANSCHLUSS & STATUS LEDs
RJ45 Anschluss:
RJ45 Anschluss
Pin Signal Pin Signal
1 BI_DA+ 4 BI_DC+
2 BI_DA- 5 BI_DC-
3 BI_DB+ 6 BI_DB-
1
USB 3.2 B-Buchse zum
Anschluss an den PC
Pin Signal
7 BI_DD+
8 BI_DD-
