Manual
EX-61001

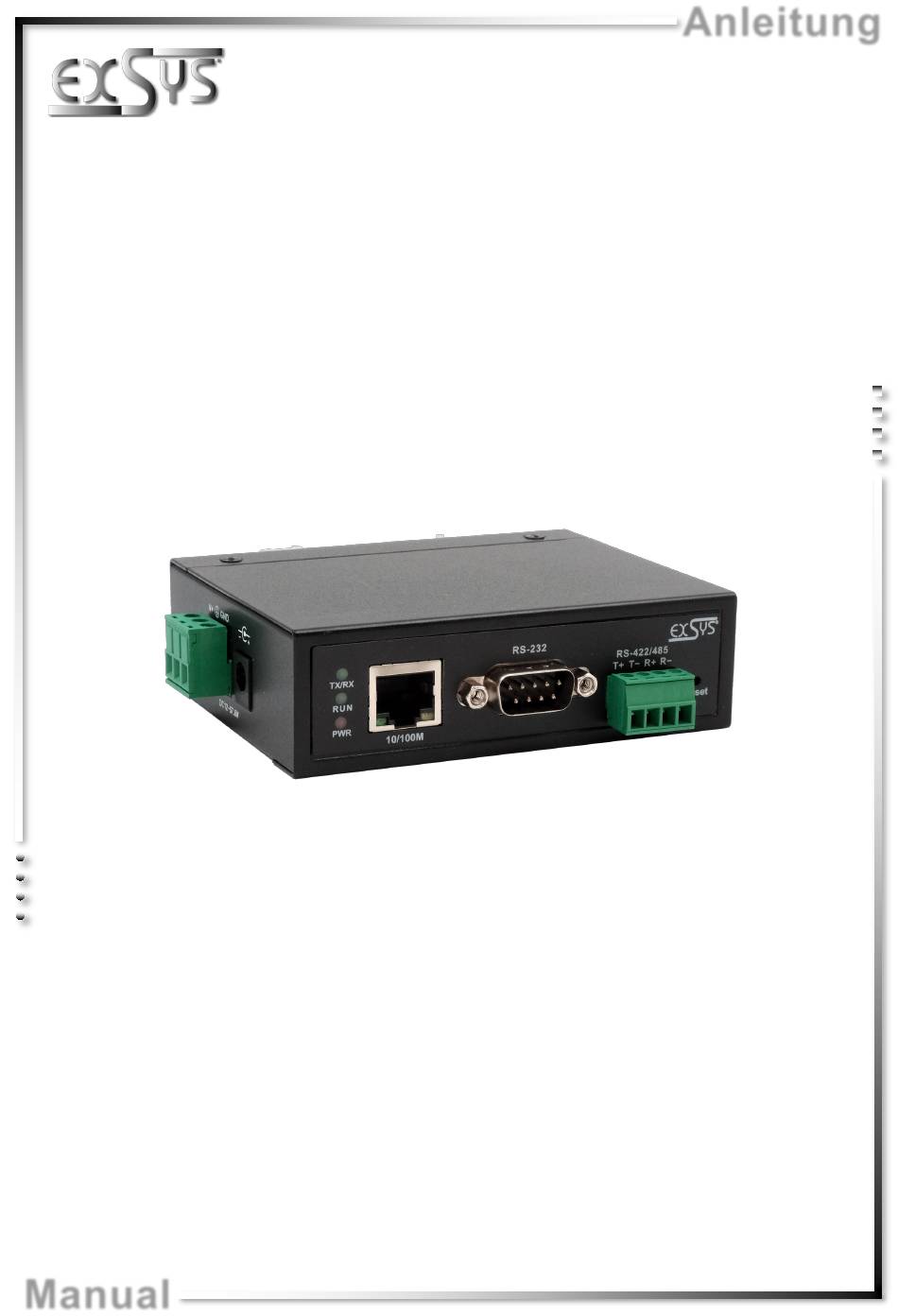

Serieller Geräteserver
1x RS-232/422/485
Serial Device Server
1x RS-232/422/485
Anleitung
Deutschland:
EXSYS Vertriebs GmbH
Industriestraße 8
61449 Steinbach
www.exsys.de
Schweiz:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Vers. 1.0 / 01.06.23

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Exsys EX-61001

  • Seite 1 Anleitung EX-61001 Serieller Geräteserver 1x RS-232/422/485 Serial Device Server 1x RS-232/422/485 Deutschland: EXSYS Vertriebs GmbH Industriestraße 8 61449 Steinbach www.exsys.de Schweiz: EXSYS Vertriebs GmbH Dübendorfstrasse 17 8602 Wangen www.exsys.ch Vers. 1.0 / 01.06.23 Manual...
  • Seite 2: Inhaltsverzeichnis

    Hardware Installation ·························································································· 19 Configuration of the Device Server ········································································ 20 VCOM Utility ······························································································· 21-23 Server Settings ···························································································· 23-27 Cleaning ·········································································································· 28 Technical Information ························································································· 28 Technical Drawing ····························································································· 28 © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 3: Beschreibung

    VCOM, MCP, TCP Server, TCP Client, UDP, Remote Pair mode, Modbus TCP Server, Modbus TCP Client • Konfiguration: Windows-basiertes VCOM-Administrator-Dienstprogramm und Web-Browser • Zertifiziert für 2. Lieferumfang Bevor Sie den EX-61001 in Ihr Netzwerk einbinden, überprüfen Sie bitte zuerst den Inhalt der Lieferung: • EX-61001 • Netzteil (12V/1A) •...
  • Seite 4: Aufbau, Anschlüsse & Leds

    Aus: Das Gerät ist ausgeschaltet Ständig an: Server startet auf RUN LED Grün Blinken: Server ist bereit Aus: Server ist nicht bereit Blinken: Datenübertragung an der seriellen Schnittstelle TX/RX LED Grün Aus: Keine Datenübertragung © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 5: Anschlüsse & Leds

    Nur zur Verwendung mit dem im Lieferumfang enthaltenen oder einem anderem konformen Netzteil! +12V bis +48V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an der Gehäuseerde an, dadurch kann Ihre Hardware zerstört werden! Gehäuseerde © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 6: Hardware Installation

    4. Hardware Installation Beachten Sie bitte die folgenden Installationshinweise. Da es große Unterschiede zwischen PC‘s gibt, können wir Ihnen nur eine generelle Anleitung zum Anschluss des EX-61001 geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Installieren Sie den EX-61001 an einer 35 mm Hutschiene.
  • Seite 7: Konfiguration Des Geräteservers

    Sofern Sie die vom DHCP Server zugewiesene IP Adresse kennen, können Sie diese auch direkt in Ihren Browser eingeben und sich im Gerät einloggen. Die Virtual COM Software liegt auf der EXSYS Webseite zum Download bereit: www.exsys.ch oder www.exsys.de Suchen nach:...
  • Seite 8: Vcom Utility

    Deutsch EX-61001 6. VCOM Utility Für virtuelle COM-Anwendungen wird auf der EXSYS Webseite ein VCOM-Dienstprogramm zur Verfügung gestellt (Download siehe Seite 7). Wichtig! Bitte führen Sie das Installationsprogramm mit Rechtsklick „Als Administrator ausführen“ aus! Nach Beenden der Installation starten Sie den Rechner neu.
  • Seite 9 6. VCOM Utility 2. Zuordnung der COM-Ports: Um den virtuellen COM-Anschluss zu erstellen und dem seriellen Gerät zuzuordnen, klicken Sie auf COM Mapping > Add COM > OK COM2 wurde hinzugefügt © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 10: Servereinstellungen

    Anmeldedaten lauten: User Name: admin Password: admin Sofern Sie die vom DHCP Server zugewiesene IP Adresse kennen, können Sie diese auch direkt in Ihren Browser eingeben und sich im Gerät einloggen. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 11 7. Servereinstellungen 1. System Home - Systeminformationen Hier werden allgemeine Informationen zum System aufgeführt. 2. System Settings - IP Address Settings Wählen Sie zwischen automatischer IP-Vergabe via DHCP oder Statischer IP. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 12 2. System Settings - Address Filter Begrenzen Sie den Zugriff auf den Geräteserver indem Sie berechtigte IP-Adressbereiche festlegen. 2. System Settings - User Management Legen Sie neue Benutzer an und definieren Sie deren Berechtigungen. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 13 Länge eines Datenpakets (bei Bedarf, Standard ist 0) Delimiter enabling Aktivieren Sie bei Bedarf die Pakettrennung mittels Trennzeichen Delimiter Legen Sie die Kodierung des Trennzeichens fest (0 bis 0xff) Delimiter handling Wählen Sie zwischen keep und discard © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 14 Für fehlerhaft ausgeführte Upgrades wird jede Haftung abgelehnt. Restore Factory Zurücksetzen des Gerätes auf die Werkseinstellungen Port Restart Neu starten einzelner Ports (z.B. bei einer Fehlfunktion) System Restart Startet den Geräteserver neu © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 15: Reinigung

    -40° bis 85° Celsius Lagertemperatur: -40° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Schutzklasse: IP30 Stromversorgung: +12-48V Abmessung: 100 x 85 x 30 mm Gewicht: 270g 10. Technische Zeichnung © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 16: Description

    Modbus TCP Server, Modbus TCP Client • Configuration: Windows-based VCOM administrator utility and web browser • Certificate for 2. Extent of delivery Before you integrate the EX-61001 into your network, you should first check the contents of the delivery: • EX-61001 • Power Supply (12V/1A) •...
  • Seite 17: Layout, Connections & Led's

    RUN LED Green Blinking: Server is ready for end devices Off: Server is not ready Blinking: Serial port data transmission TX/RX LED Green Off: No data transmission on the serial port © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 18: Connections & Led's

    Only for use with the power supply unit included in the scope of delivery or another compliant power supply unit! +12V to +48V T-Block: ATTENTION! Never connect power to the enclosure earth, this can destroy your hardware! enclosure earth © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 19: Hardware Installation

    4. Hardware Installation Please observe the following installation instructions. Since there are major differences between PCs, we can only give you general instructions for connecting the EX-61001. If anything is unclear, please refer to the operating instructions of your computer system.
  • Seite 20: Configuration Of The Device Server

    English EX-61001 5. Device Server Configuration The EX-61001 is delivered with the following factory settings: Login User Name: admin Password: admin IP Address: DHCP Network Operation Mode: VCOM Serial Interface: RS232 By pressing and holding the "Reset" button for 5 seconds, the device will be reset to the factory settings.
  • Seite 21: Vcom Utility

    „Run as Administrator“). • Click Remote Device Management > ADD Device > Search • After the device is found, click Cancel to abort the search. Click OK, to add the EX-61001. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 22 2. Assignment of COM-Ports: To create the virtual COM port and assign it to the serial device, click COM Mapping > Add COM > OK COM2 havs now been added © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 23: Server Settings

    User Name: admin Password: admin If you know the IP address assigned by the DHCP server, you can also enter it directly into your browser and log in to the unit. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 24 7. Server Settings 1. System Home - System Information General information about the system. 2. System Settings - IP Address Settings Choose between automatic IP assignment via DHCP or static IP. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 25 2. System Settings - Address Filter Limit access to the device server by setting authorised IP address ranges. 2. System Settings - User Management Create new users and define their authorisation. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 26 Length of data pack (if required, default is 0) Delimiter enabling Enable packet separation by delimiter if required Delimiter Set the encoding of the delimiter for the transmitted data (0-0xff) Delimiter handling Chose to keep und discard © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 27 We cannot accept any responsibility for incorrectly executed updates. Restore Factory Resetting the unit to factory defaults Port Restart Restarting individual ports (e.g. in case of a malfunction) System Restart Reboot the serial device server © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Seite 28: Cleaning

    -40° to 185° Fahrenheit Storage Temperature: -40° to 185° Fahrenheit Rel. Humidity: 5% to 95%, non-condensing Protection Class: IP30 Power: +12-48V Size: 100 x 85 x 30 mm Weight: 270g 10. Technical Drawing © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
