1. Getting Started

In the packing box you should find the following parts:
1 RotoForce-4
1 Lupo automatic drip lubricator
1 Silicone tube
1 Pressure hose, 3 m
2 Hose clamps
1 Hose clamp
1 Quick coupling
1 Hose nipple
1 Screw M5x10 with washer
1 Socket spanner
1 Allen key
1 Disposable syringe with grease, Kilopoise Rocol 0868
(see section 4. Trouble Shooting)
1 Set of Instruction manuals
Remove RotoForce-4 from the transportation box. Save the nut
and the washer holding RotoForce-4. They are to be re-used when
mounting RotoForce-4 on RotoPol-21/-22/-25 or Rotopol-1/-2/-V.
Take a moment to familiarise yourself with the location and
names of the RotoForce-4 components.

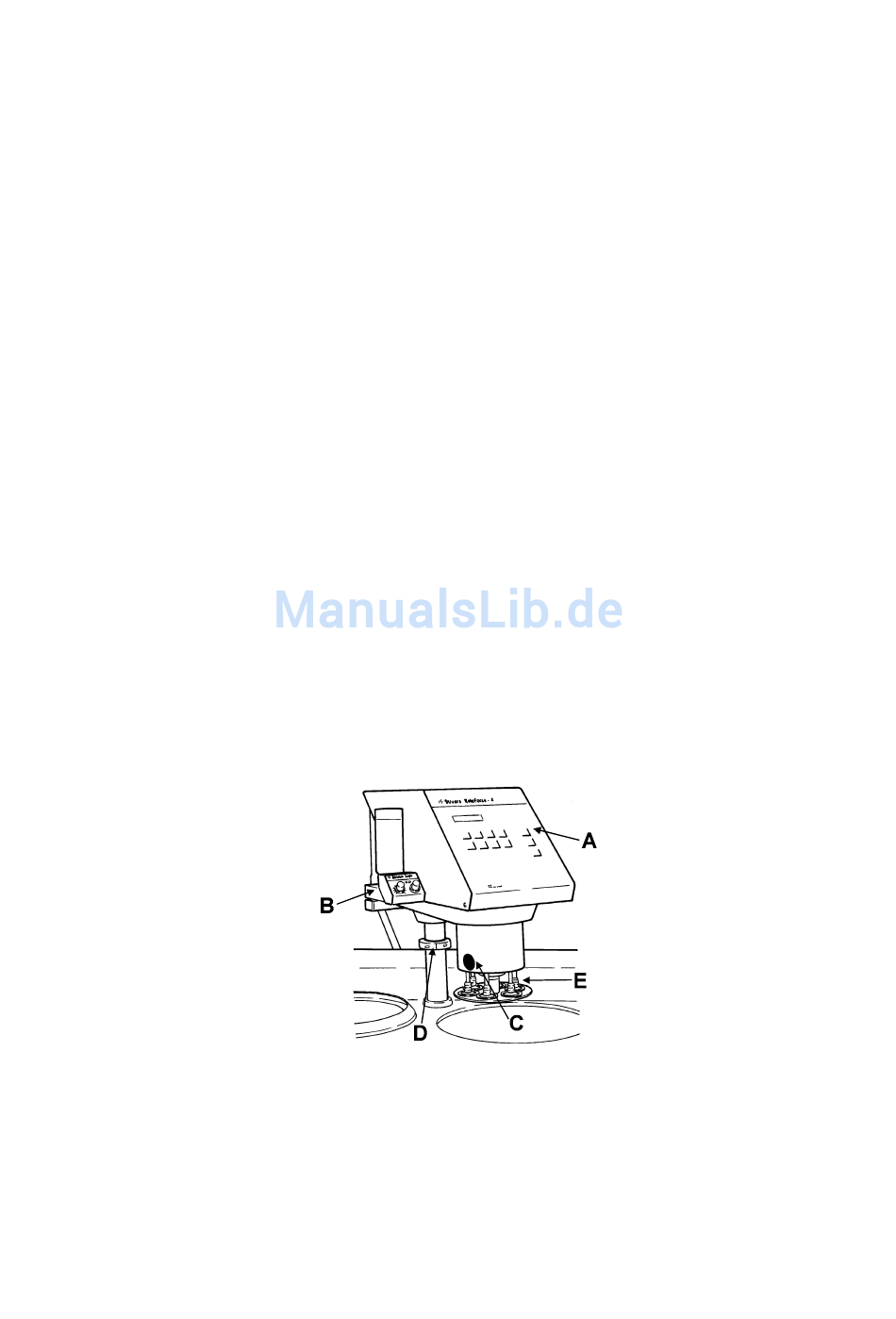

RotoForce-4 on RotoPol-22 (optional)
Control keys and display
A
Lupo drip lubricator
B
Release knob
C
Supporting column and stop ring
D
Pressure feet for single samples
E
