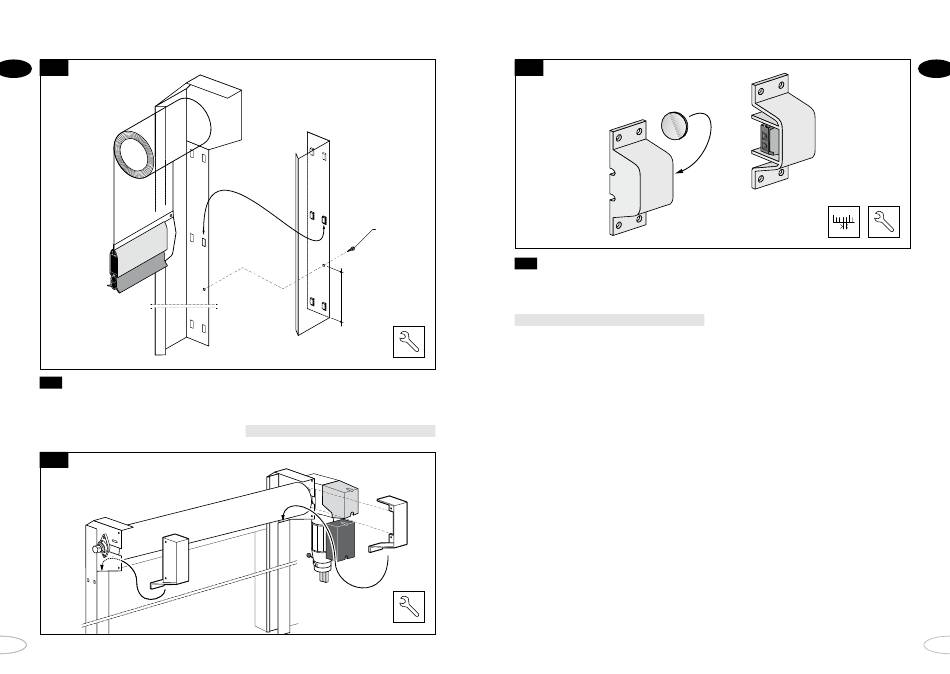

4.15 Installation of wall guide covers
1. Hook the wall guide covers to the wall
guises and secure them with a self-tapping
screw at 400 mm above the floor.
4.16
12
locking screw
400
2. Mount the safety covers using M8 bolts.
See fig. 4.16
4.17
4.18 Installing the safety photocell
1. Install the safety photocell and the
reflector in the pre-drilled holes.
See fig. 4.17 and 3.1
