Changing the Fieldgate address

1. Press "Switch to Specialist Mode"
– Enter the user name "admin" and password "super"
– Press "Login"

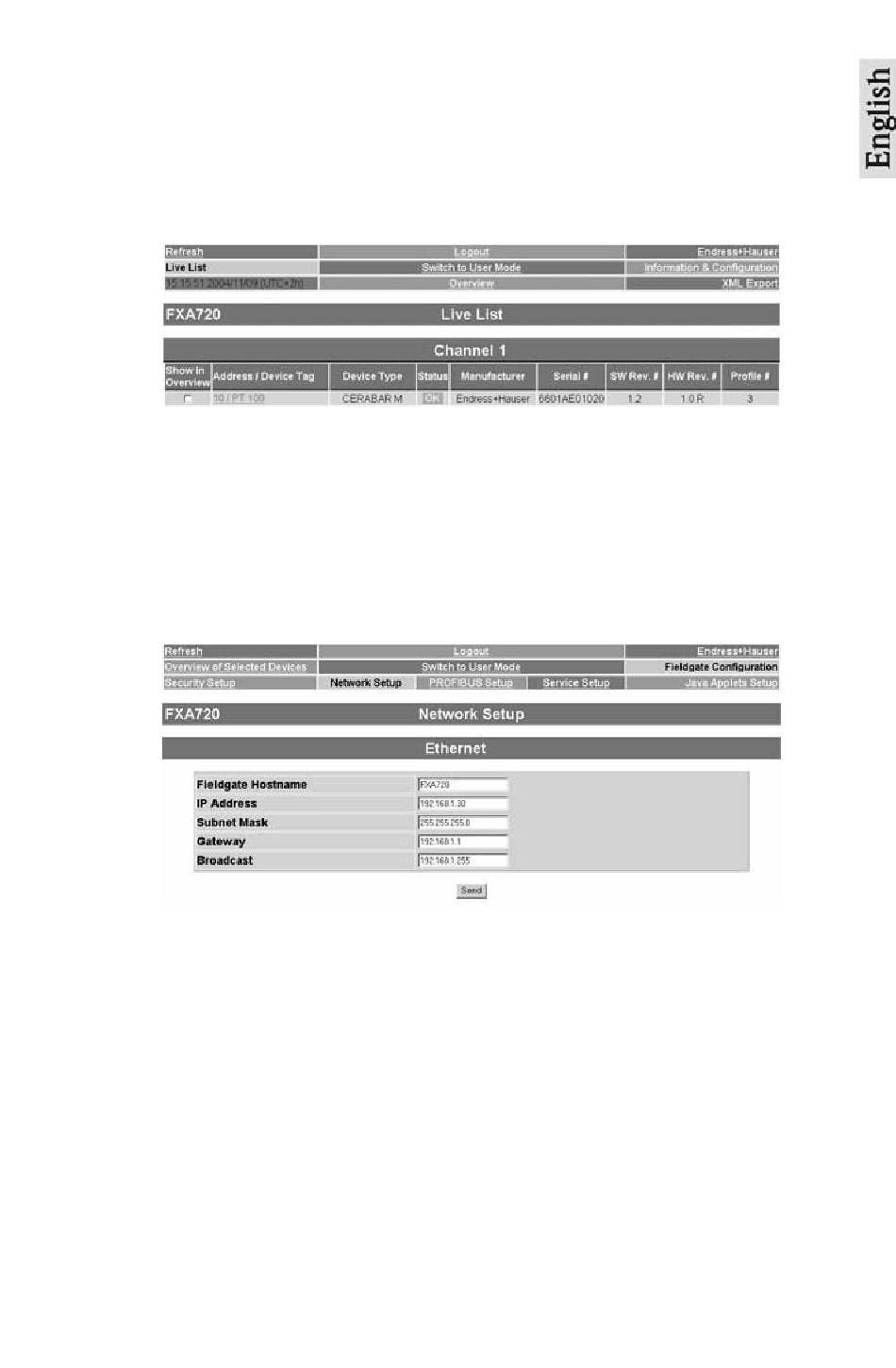

2. The live list is displayed (you may not necessarily see devices at this stage)
3. Now press "Information & Configuration" followed by "Network Setup"
– In the Ethernet screen, enter the IP address, in this example 192.168.1.30:
– Enter the Subnet mask, in this example 255.255.255.0
– If appropriate, enter a Gateway address
(router/firewall connecting LAN to WAN/WWW)
– If appropriate, enter a Broadcast address
(client server where broadcast messages are sent)
– Press "Send" to download the parameters to the Fieldgate.
4. Contact with the Fieldgate may break down at this stage.
If this is not the case, close the browser.
5. Reset the IP address in your computer back to the original value,
see "Making initial contact"
6. Now make contact with Fieldgate FXA720 through the network browser by entering
the new address.
7. If you are using the Fieldgate web server, now set it up as described in Chapter 6 of
operating manual BA030SEN.
