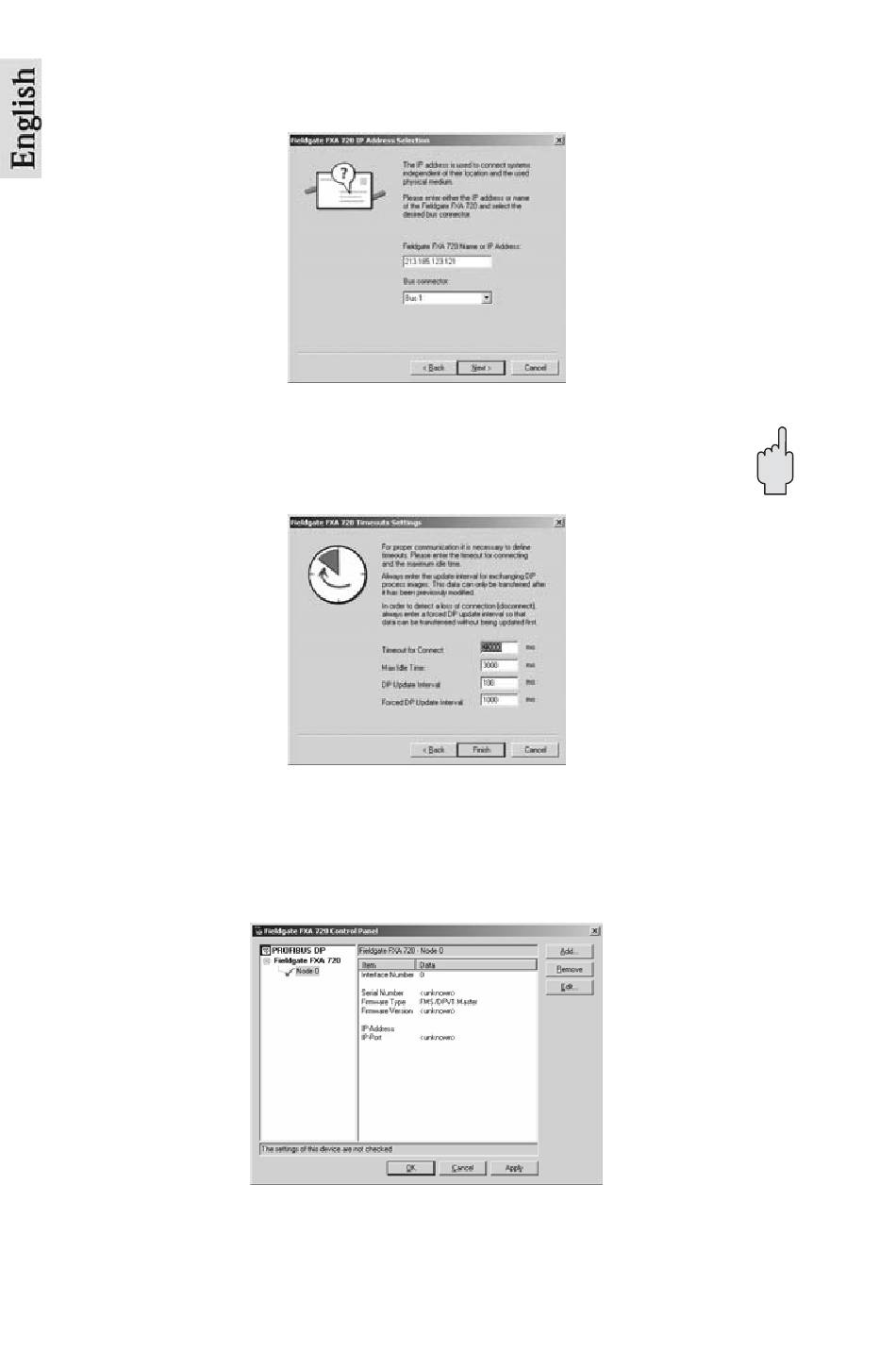

5. Enter the current Fieldgate FXA720 IP address and select the Bus connector (the
channel to be used with the node specified in Step 4).
6. Click "Finish" to accept the default timeout settings and end the configuration.
Caution:
Timeout settings should be changed by PROFIBUS specialists only
7. If the Fieldgate is found in the network and is working properly, then the Node line will
be marked with a green check mark. In addition, Fieldgate information is displayed.
– The node configuration can be modified from this screen by clicking the
"Edit" button. To save the configuration please click "Apply".
8. For single channel Fieldgates, press "OK" to store the configuration and close the
configuration window, otherwise continue with Step 9.
