MAIN DISPLAY AND NAVIGATION

All important data of controller operation are shown on the graphic LCD display which is
intended also for setting the controller.

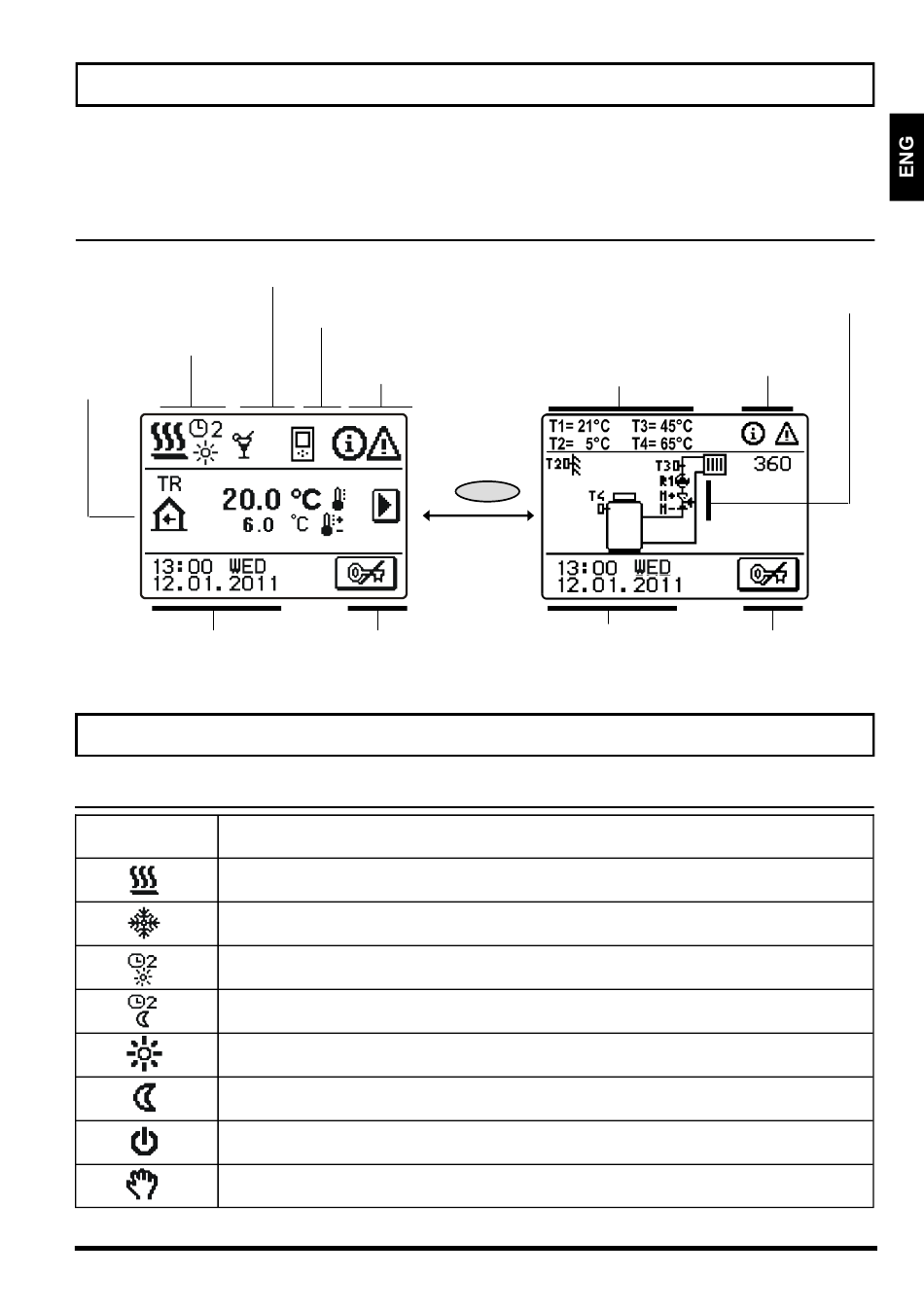

DISPLAY DESCRIPTION AND DESIGN
Operation
Temperature
mode
overview
and other
data
Time and date
DESCRIPTION OF SYMBOLS SHOWN ON THE DISPLAY

SYMBOLS FOR OPERATION MODE

Symbol Description
Heating mode
Cooling mode
Room heating according to program timer 2 - day temperature
Room heating according to program timer 2 - night temperature
Heating according to the set-point day temperature
Heating according to the set-point night temperature
Switch off
Manual operation
J5060403 v1.2
Active user functions
Room unit
Notifications
and warnings
1
2
Screen
unlocking
Temperature
overview
Key
Esc
Time and date
11
Indication of mixing valve
and pump operation
Notifications
and warnings
Screen
unlocking
User manual
