Actuator Cwr6 - Cosmo DN 25 Montage- Und Betriebsanleitung

P U M P G R O U P, M I X E D D N 2 5 W I T H W E A T H E R - C O M P E N S A T E D A C T U A T O R
2 . 5 A C T U A T O R C W R 6
5
Stop bolt

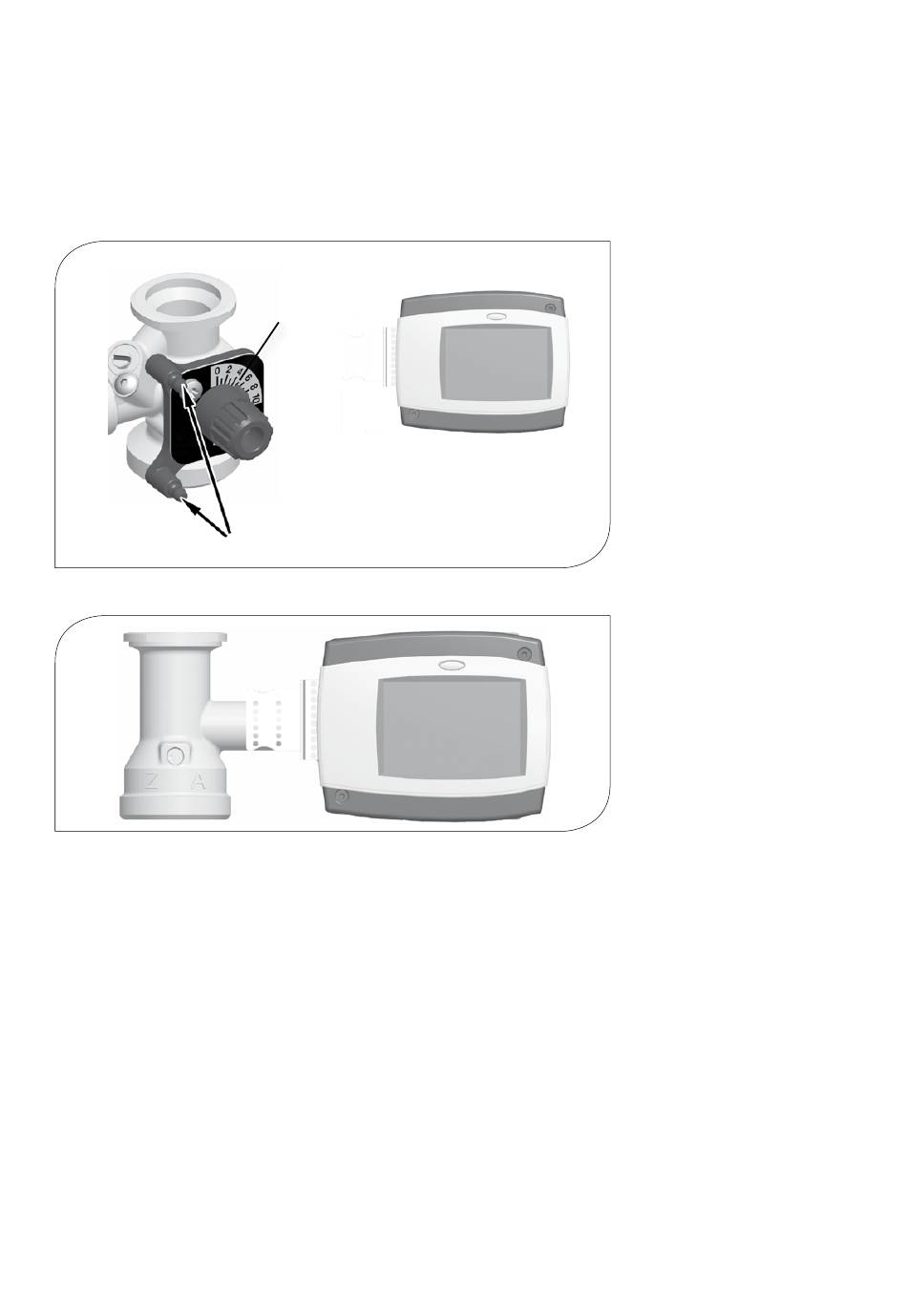

Assembly of the actuator:
1. Turn the adjusting knob of the mixing
valve into position 5 (see figure on the
left).
2. Put the actuator on the adjusting knob
of the mixing valve and the two stop
bolts.
3. Connect the flow sensor with the
actuator.
4. Connect the outside temperature sensor
with the actuator. Please observe the
separate instructions regarding the
actuator!
5. Set the actuator according to the
separate instructions of the actuator.
2 5
