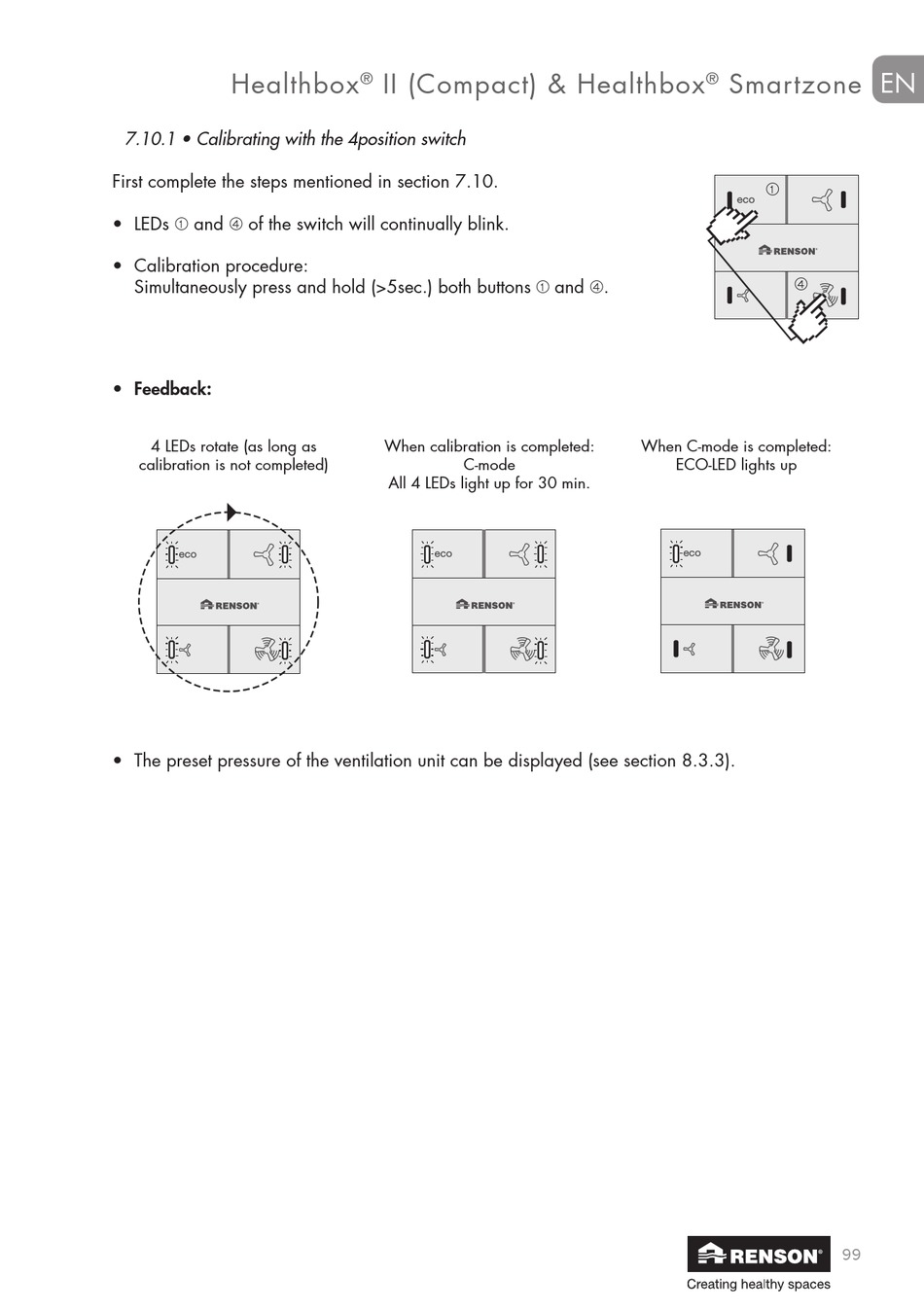

Calibrating With The 4Position Switch - Renson HEALTHBOX II Compact Handbuch

Healthbox II (Compact) & Healthbox Smartzone en
® ®
7.10.1 • Calibrating with the 4position switch
First complete the steps mentioned in section 7.10.
➀
eco
• LEDs ➀ and ➃ of the switch will continually blink.
• Calibration procedure:
Simultaneously press and hold (>5sec.) both buttons ➀ and ➃.
➃
• Feedback:
4 LEDs rotate (as long as When calibration is completed: When C-mode is completed:
calibration is not completed) C-mode ECO-LED lights up
All 4 LEDs light up for 30 min.
eco eco
eco
• The preset pressure of the ventilation unit can be displayed (see section 8.3.3).
99
