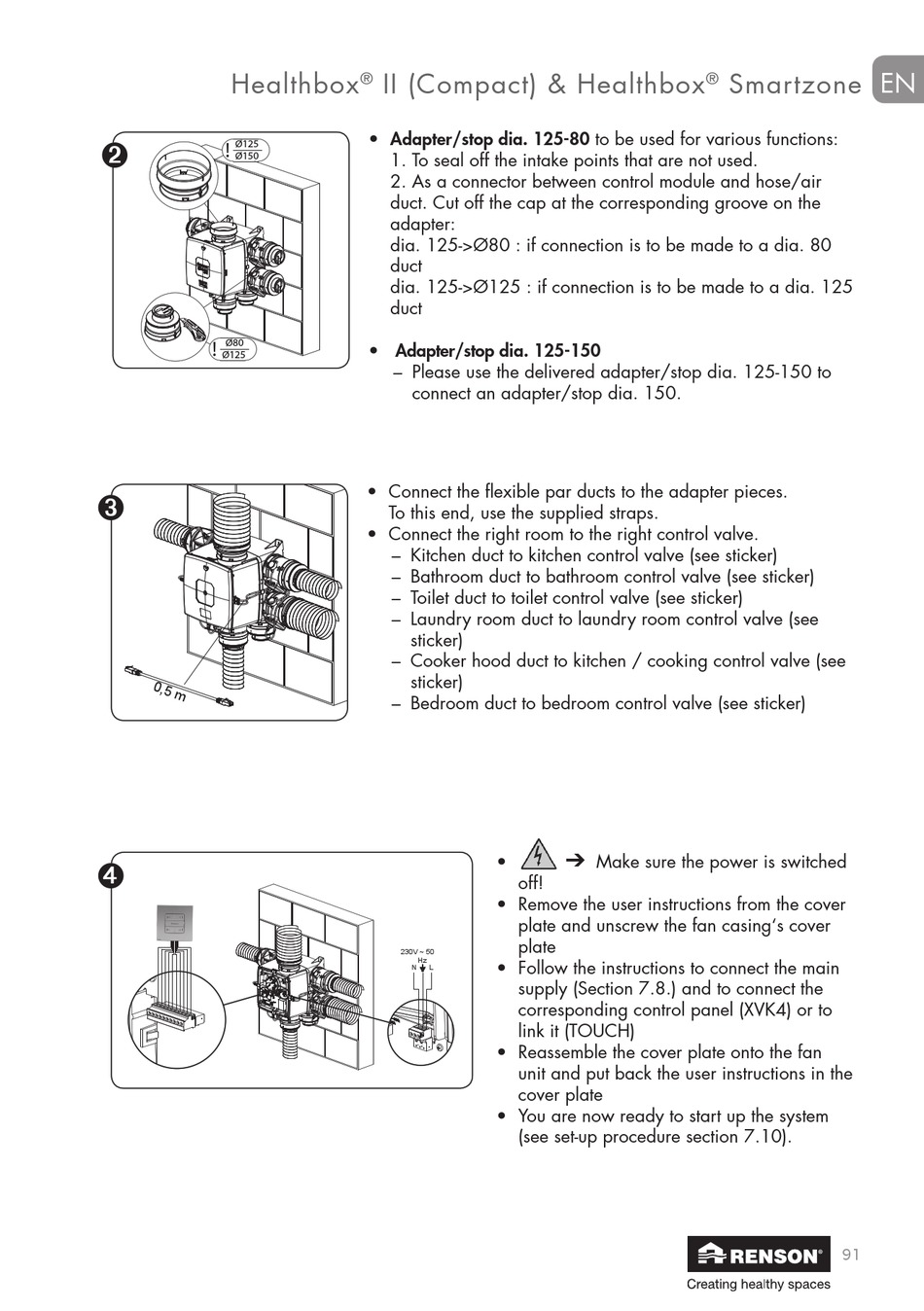

II (Compact) & Healthbox
®
• Adapter/stop dia. 125-80 to be used for various functions:
1. To seal off the intake points that are not used.
2. As a connector between control module and hose/air
duct. Cut off the cap at the corresponding groove on the
adapter:
dia. 125->Ø80 : if connection is to be made to a dia. 80
duct
dia. 125->Ø125 : if connection is to be made to a dia. 125
duct
• Adapter/stop dia. 125-150
– Please use the delivered adapter/stop dia. 125-150 to
connect an adapter/stop dia. 150.
• Connect the flexible par ducts to the adapter pieces.
To this end, use the supplied straps.
• Connect the right room to the right control valve.
– Kitchen duct to kitchen control valve (see sticker)
– Bathroom duct to bathroom control valve (see sticker)
– Toilet duct to toilet control valve (see sticker)
– Laundry room duct to laundry room control valve (see
sticker)
– Cooker hood duct to kitchen / cooking control valve (see
sticker)
– Bedroom duct to bedroom control valve (see sticker)
•
off!
• Remove the user instructions from the cover
plate and unscrew the fan casing's cover
plate
230V ~ 50
Hz
• Follow the instructions to connect the main
N L
supply (Section 7.8.) and to connect the
corresponding control panel (XVK4) or to
link it (TOUCH)
• Reassemble the cover plate onto the fan
unit and put back the user instructions in the
cover plate
• You are now ready to start up the system
(see set-up procedure section 7.10).
