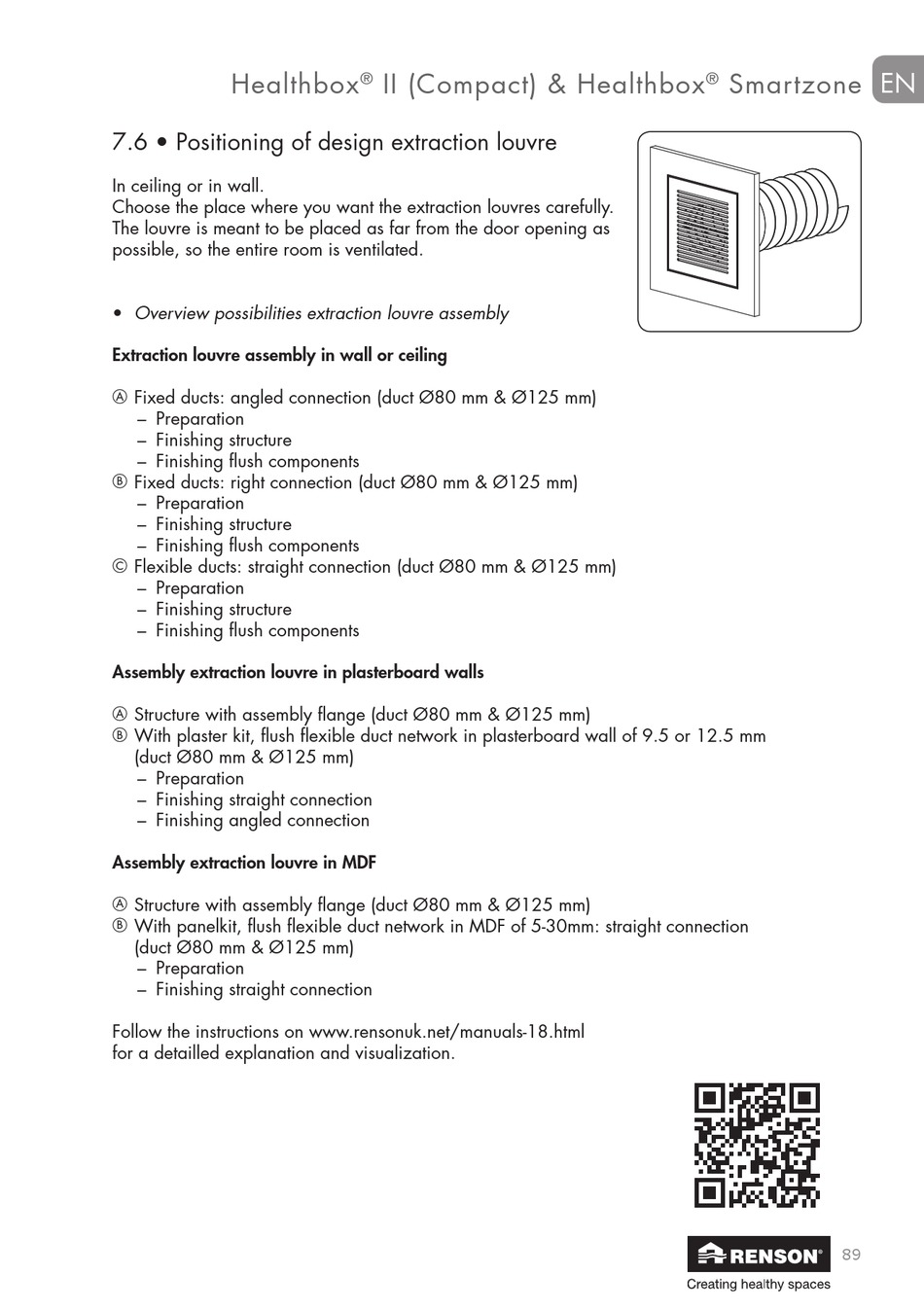

7.6 • Positioning of design extraction louvre
In ceiling or in wall.
Choose the place where you want the extraction louvres carefully.
The louvre is meant to be placed as far from the door opening as
possible, so the entire room is ventilated.
• Overview possibilities extraction louvre assembly
Extraction louvre assembly in wall or ceiling
Fixed ducts: angled connection (duct Ø80 mm & Ø125 mm)
A
– Preparation
– Finishing structure
– Finishing flush components
Fixed ducts: right connection (duct Ø80 mm & Ø125 mm)
B
– Preparation
– Finishing structure
– Finishing flush components
Flexible ducts: straight connection (duct Ø80 mm & Ø125 mm)
C
– Preparation
– Finishing structure
– Finishing flush components
Assembly extraction louvre in plasterboard walls
Structure with assembly flange (duct Ø80 mm & Ø125 mm)
A
With plaster kit, flush flexible duct network in plasterboard wall of 9.5 or 12.5 mm
B
(duct Ø80 mm & Ø125 mm)
– Preparation
– Finishing straight connection
– Finishing angled connection
Assembly extraction louvre in MDF
Structure with assembly flange (duct Ø80 mm & Ø125 mm)
A
With panelkit, flush flexible duct network in MDF of 5-30mm: straight connection
B
(duct Ø80 mm & Ø125 mm)
– Preparation
– Finishing straight connection
Follow the instructions on www.rensonuk.net/manuals-18.html
for a detailled explanation and visualization.
